6. Turn the collet wrench counter-clockwise until the collet is fully disengaged.
7. Remove the collet wrench and collet by pulling downwards:

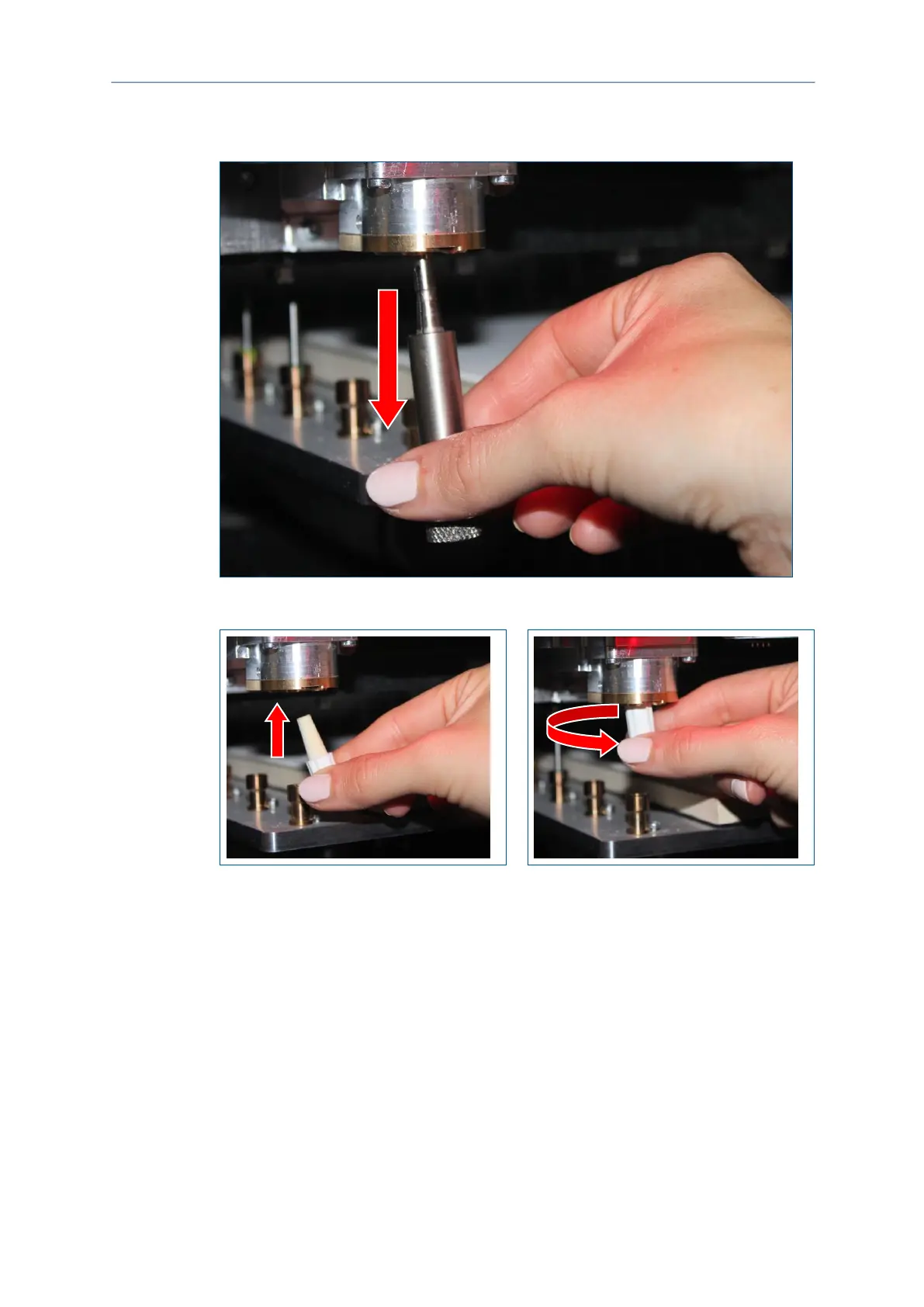

Fig. 129: Removing the collet
8. Clean the collet fixture with the cleaning cone:
Fig. 130: Cleaning the collet fixture
9. Clean the collet from the inside and the outside with the cylindrical brush:
