Maintenance
ProtoMat S64/S104
132/160
LPKF Laser & Electronics AG | V. 1.0

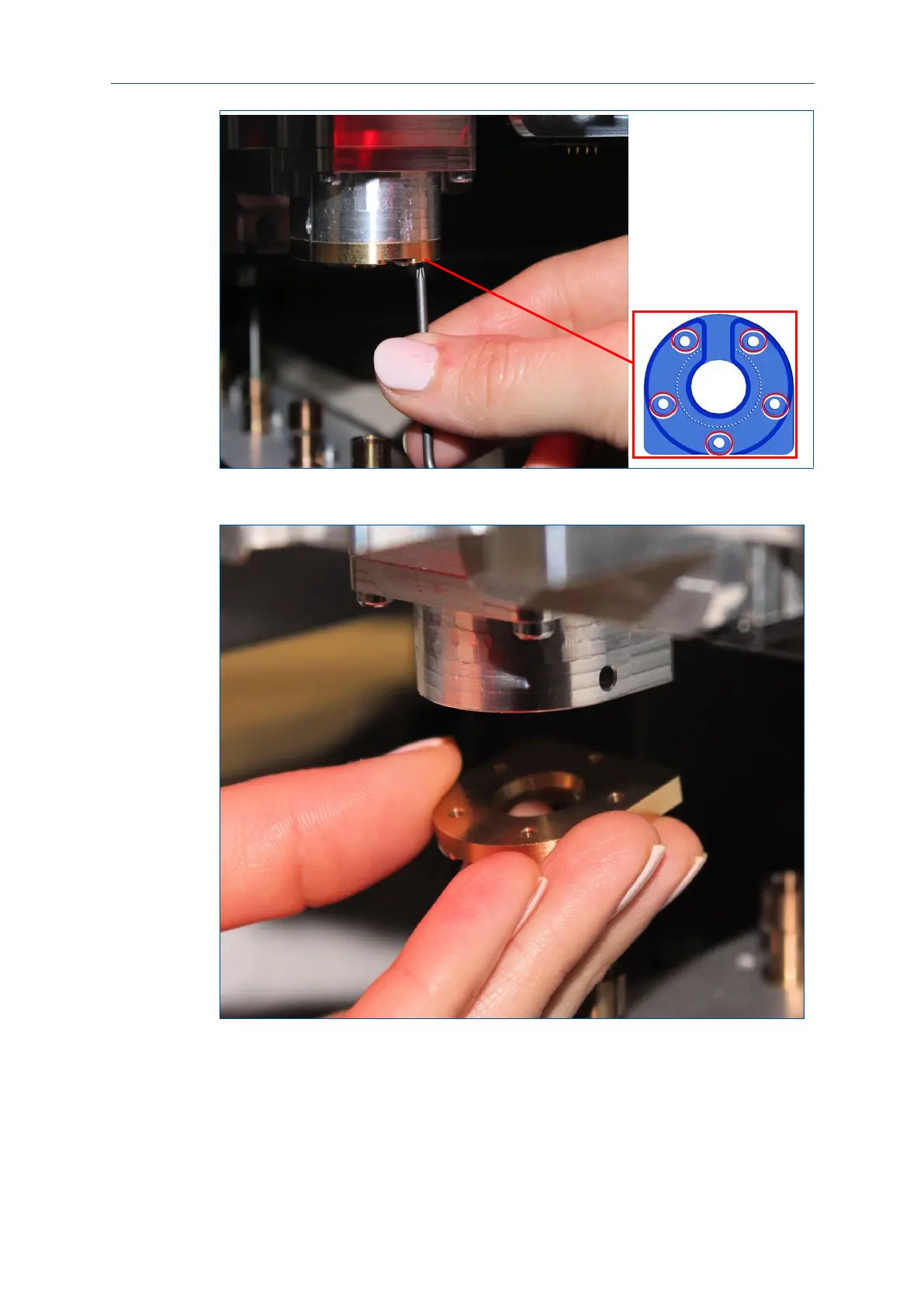

Fig. 134: Removing the screws of the working-depth limiter
6. Remove the old working-depth limiter:
Fig. 135: Removing the old working-depth limiter
7. Insert the new working-depth limiter.
8. Tighten the screws with the wrench.
9. Remove the maintenance materials from the system and close the cover.

The working-depth limiter has been cleaned/replaced.
