Maintenance
ProtoMat S64/S104
134/160
LPKF Laser & Electronics AG | V. 1.0

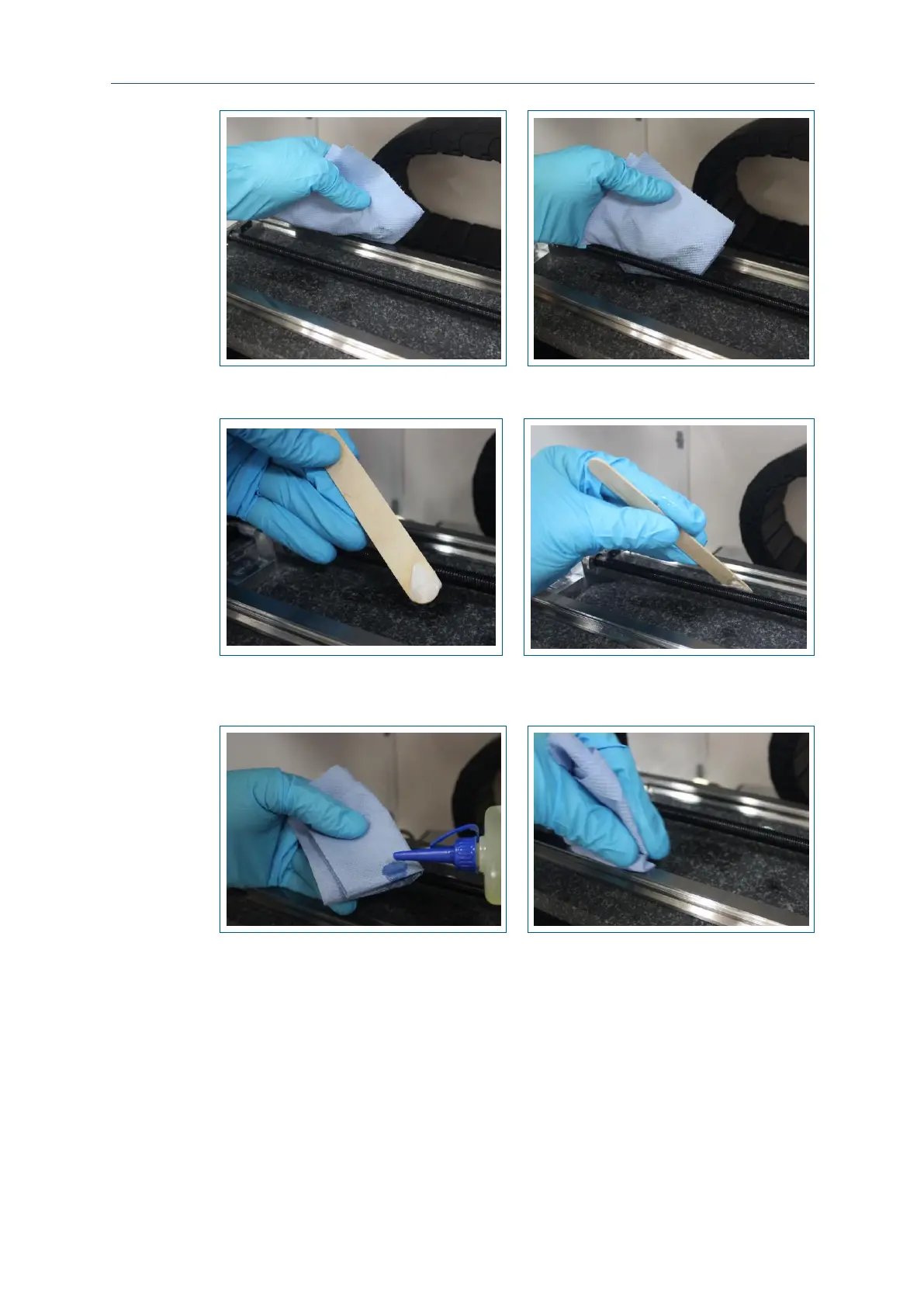

Fig. 137: Cleaning the linear guide
Fig. 138: Cleaning the drive spindle
5. Apply a bit of lubricant on the wooden lab spatula and lubricate the drive spindle:
Fig. 139: Applying lubricant
Fig. 140: Lubricating the drive spindle
6. Put some precision mechanics oil on a cotton cloth and use it to lubricate the
linear guides:
Fig. 141: Applying precision mechanics oil
Fig. 142: Lubricating the linear guides
7. Push the bellows of the x axis back into position.
8. Push the bellows of the y axis aside:
