LPKF ProtoMat S64 - Page 135

ProtoMat S64/S104
Maintenance
V. 1.0 | LPKF Laser & Electronics AG
135/160

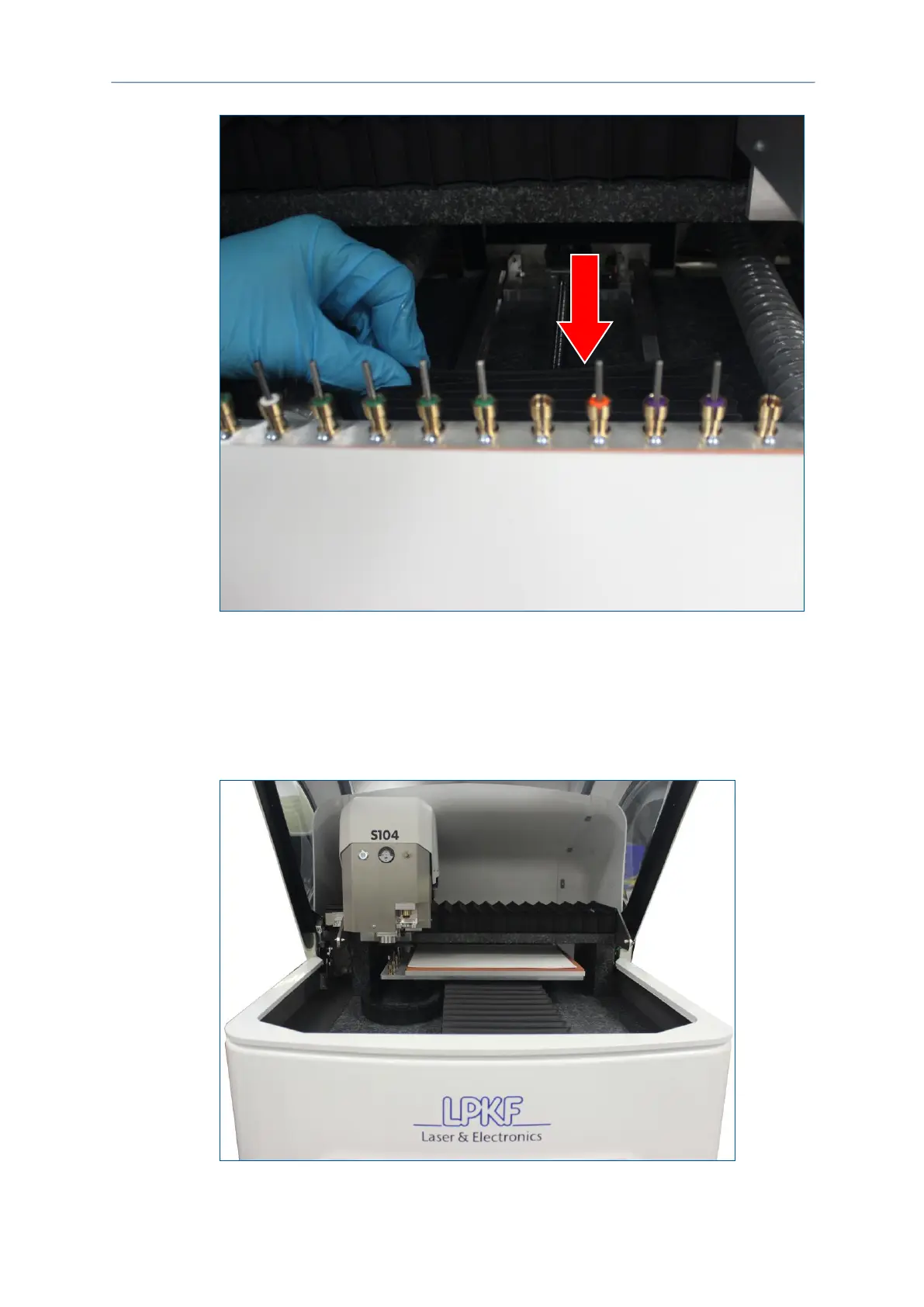

Fig. 143: Pushing the bellows of the y axis aside
9. Repeat the tasks for cleaning and servicing the linear guides and the drive spindle
as described in steps 4 to 6.
10. Push the bellows of the y axis back into position.
11. Close the cover.
12. Move the processing head to the zero position.
13. Open the cover:
Fig. 144: Moving the processing head to the zero position
