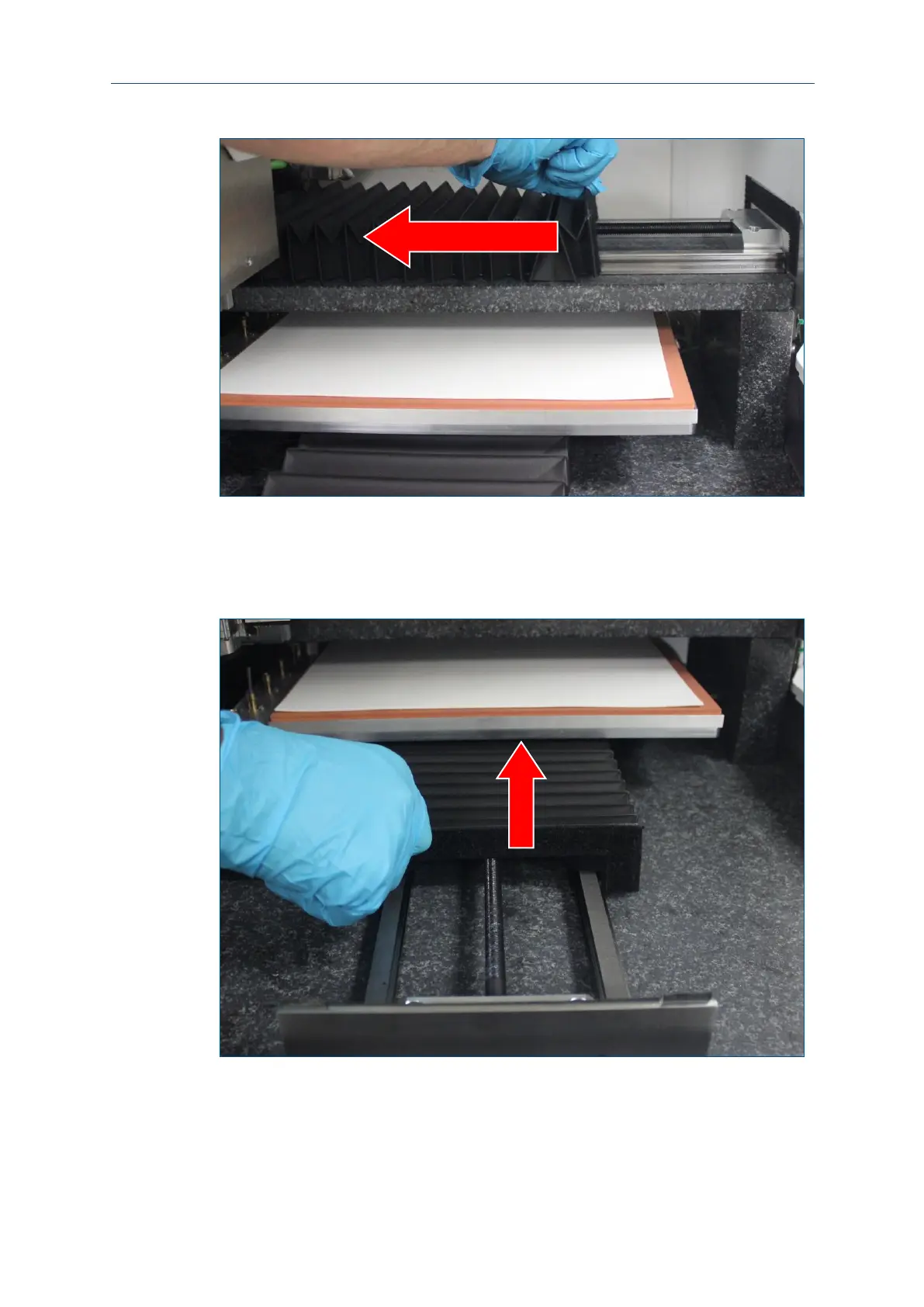

14. Push the bellows of the x axis to the left:
Fig. 145: Pushing the bellows of the x axis to the left
15. Repeat the tasks for cleaning and servicing the linear guides and the drive spindle
as described in steps 4 to 6.
16. Push the bellows of the x axis back into position.
17. Push the bellows of the y axis to the rear:
Fig. 146: Pushing the bellows of the y axis to the rear
18. Repeat the tasks for cleaning and servicing the linear guides and the drive spindle
as described in steps 4 to 6.
19. Remove the maintenance materials from the system and close the cover.
The drive spindle and the linear guides have been cleaned and lubricated.
