Draining the condensate from the compressed-air unit
Ensure that the following prerequisites are fulfilled before performing the described
tasks:
Spare parts and auxiliaries
The system is switched off.
The compressed-air supply is
disconnected.
Collection container for condensate
1. Discharge the residual energy stored in the compressed-air tube.
2. Place a suitable container under the drain valve (2) of the condensate trap (1):

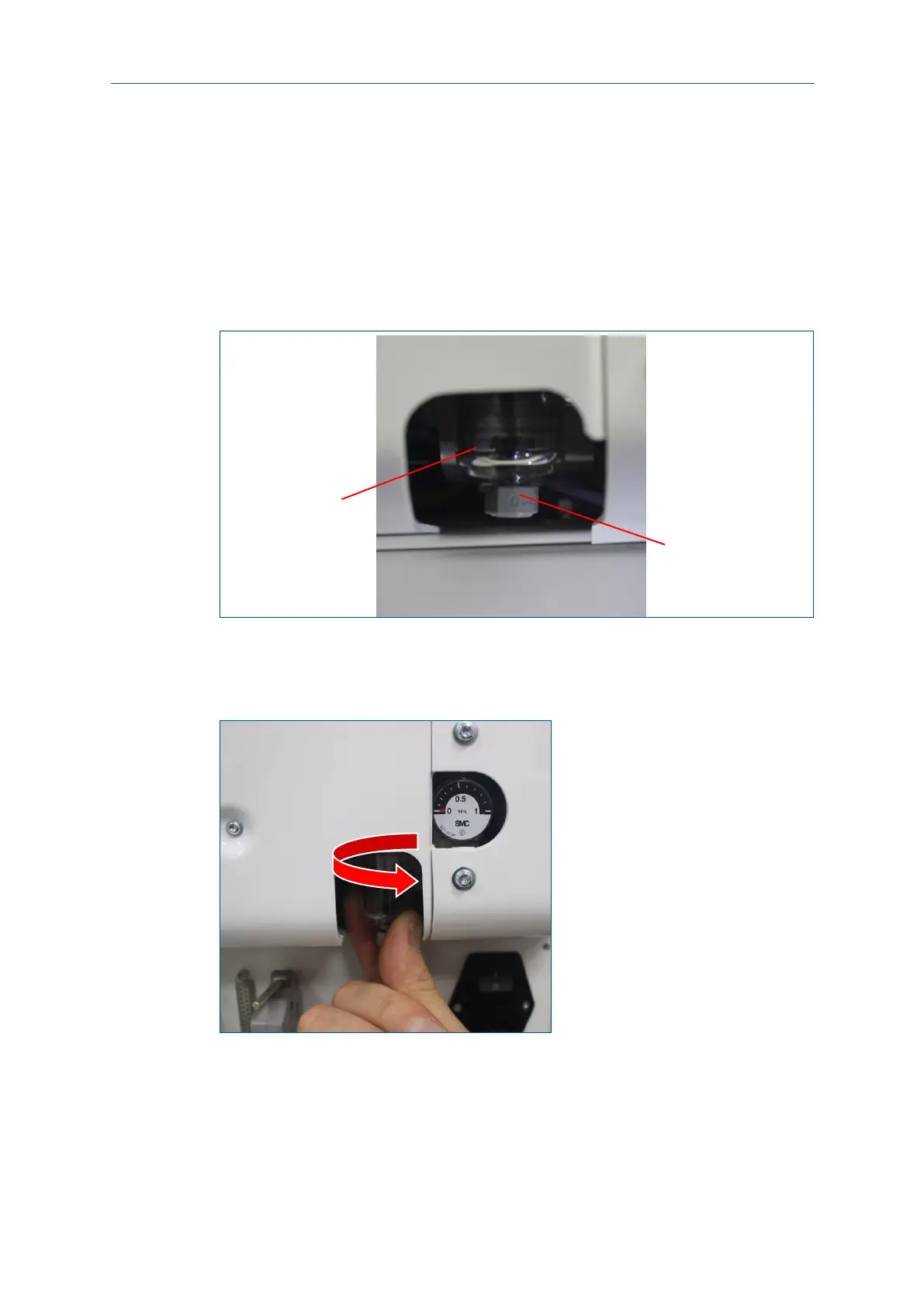

Fig. 149: Compressed-air unit
3. Turn the drain valve counter-clockwise until the liquid comes out of the
condensate trap:
Fig. 150: Opening the drain valve
4. Wait until the condensate trap is completely empty.
5. Turn the drain valve clockwise until it is fastened hand-tight.
The condensate has been drained from the compressed-air unit.
