LulzBot Mini User Manual

Slic3r

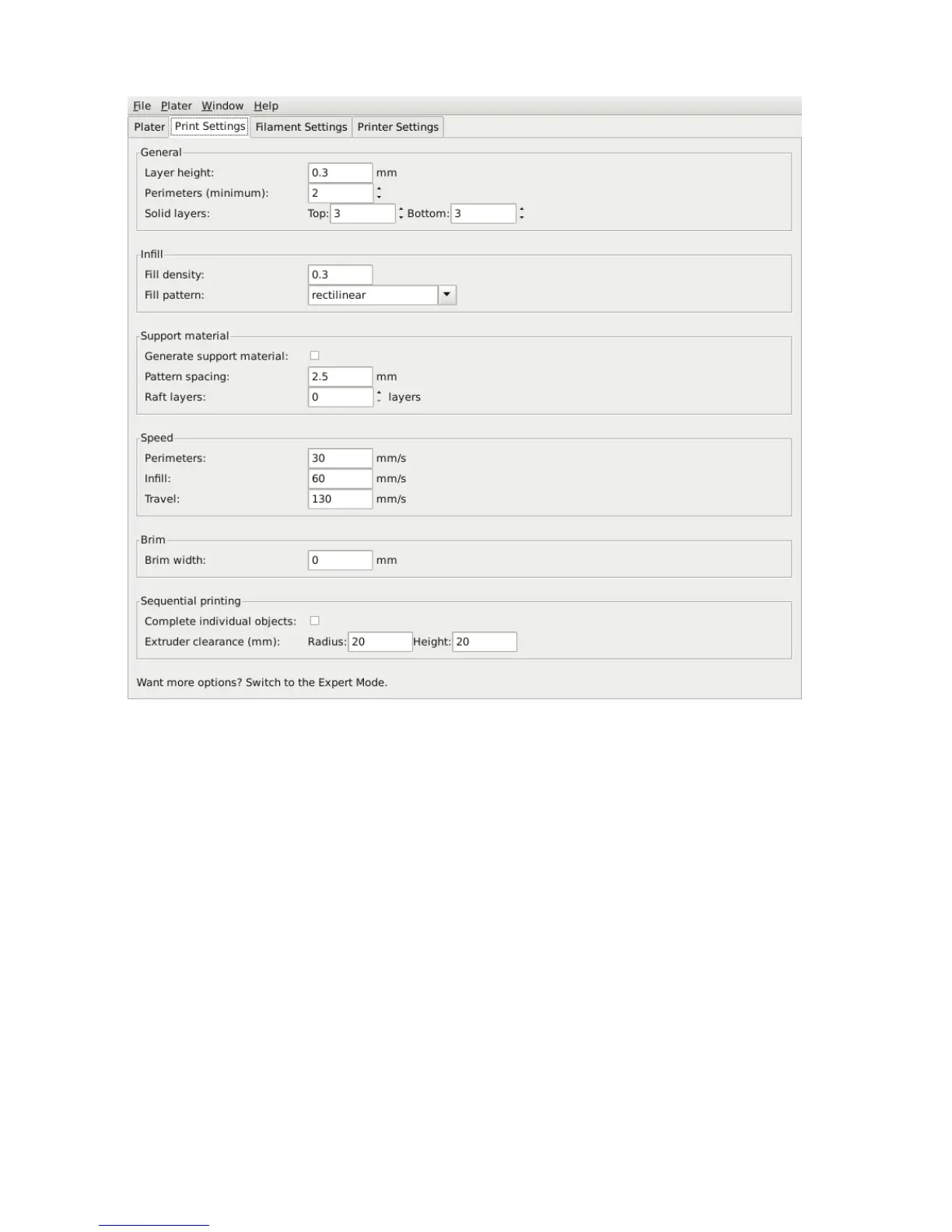

Figure 2.14: Simple Mode: Print Settings.
General. Layer height is the thickness of each layer, and it is the step
along the vertical axis taken before extruding a new layer atop the previous
one. There are several factors that influence how high each layer should
be:
• Desired resolution - Lower layer height should result in prints with
less noticeable ribs or bands, as each layer is smaller. Aesthetics plays
a role here, but also the type of model, for example, a mechanical part
may not need such a high resolution finish, whereas a presentation
piece may do so.
72

LulzBot Mini Specifications

General

Tweezers	Yes
Certification	CE, FCC, WEEE
Product color	Black, Green
Viewing window	No
Maximum print platform temperature	120 °C
Package weight	11330 g
AC input voltage	100/240 V
Power consumption (typical)	150 W
Print technology	-
Printing material	ABS, HIPS, Nylon, PVA, Polycarbonate (PC), Polylactic acid (PLA)
Layer thickness (max)	0.5 mm
Layer thickness (min)	0.05 mm
Maximum build size (WxDxH)	152 x 152 x 158 mm
Filament thickness supported	3 mm
Maximum vertical build speed	275 mm/sec
Printing compartment volume	3.65 L

Weight and Dimensions

Depth	435 mm
Width	340 mm
Height	385 mm
Weight	8550 g
