LulzBot Mini User Manual

3D Printer Software
to have the temperature specified in order to run through the automatic
bed-leveling routine.
Support Type
Some models will require support material in order to print properly. This
will usually occur when an object has an angle in relation to the build plate
between 0 to 45 degrees. It is highly recommended to orient your object so
that it minimizes or eliminates the need for support.

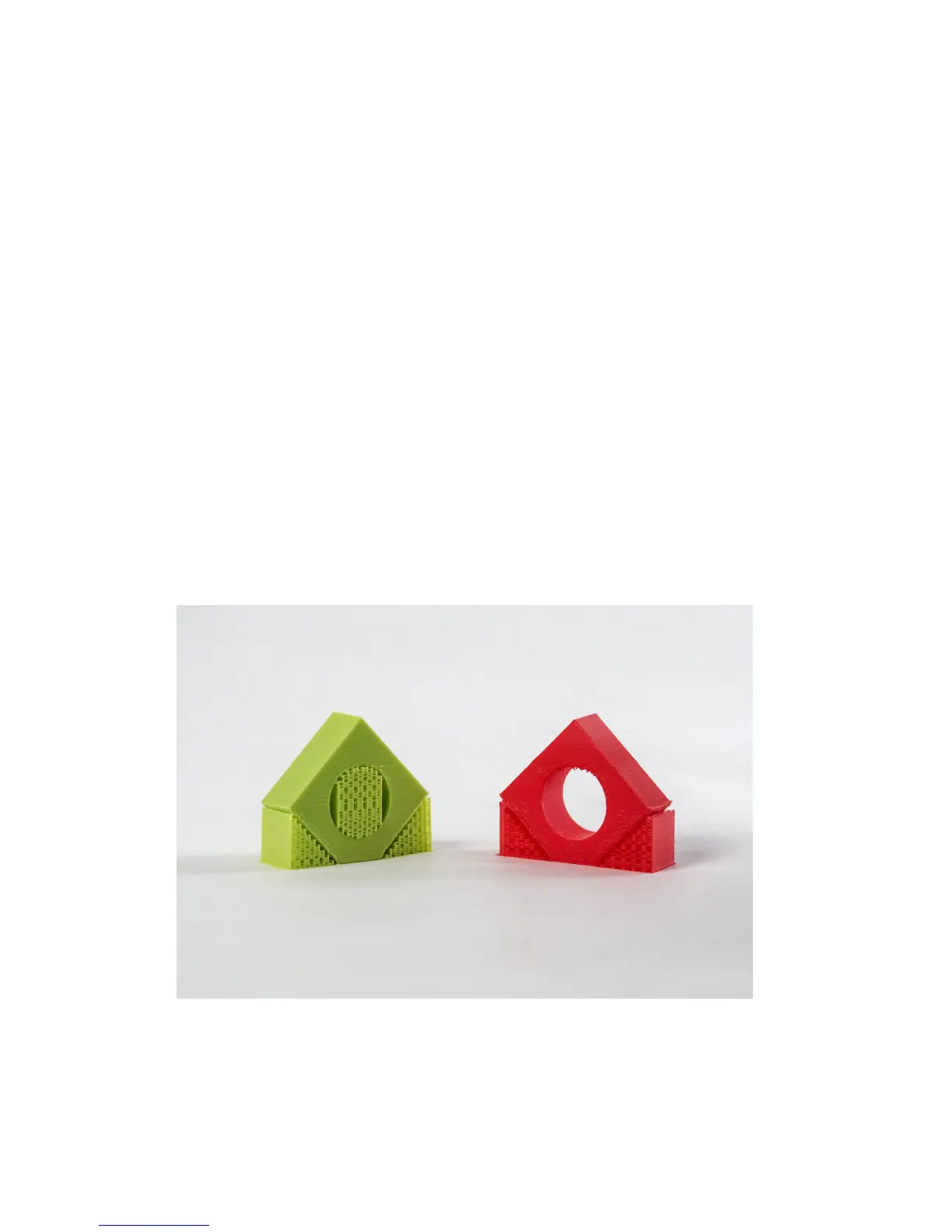

Touching Buildplate
This causes the support material to build up between the heated bed and
the object. The red example is Touching Buildplate.
Everywhere
This prints support material between the heated bed and object as well as
between the object and itself. The green example is Support Everywhere.
Figure 1.14: Support Types
28

LulzBot Mini Specifications

General

Tweezers	Yes
Certification	CE, FCC, WEEE
Product color	Black, Green
Viewing window	No
Maximum print platform temperature	120 °C
Package weight	11330 g
AC input voltage	100/240 V
Power consumption (typical)	150 W
Print technology	-
Printing material	ABS, HIPS, Nylon, PVA, Polycarbonate (PC), Polylactic acid (PLA)
Layer thickness (max)	0.5 mm
Layer thickness (min)	0.05 mm
Maximum build size (WxDxH)	152 x 152 x 158 mm
Filament thickness supported	3 mm
Maximum vertical build speed	275 mm/sec
Printing compartment volume	3.65 L

Weight and Dimensions

Depth	435 mm
Width	340 mm
Height	385 mm
Weight	8550 g
