LulzBot Mini User Manual

Slic3r

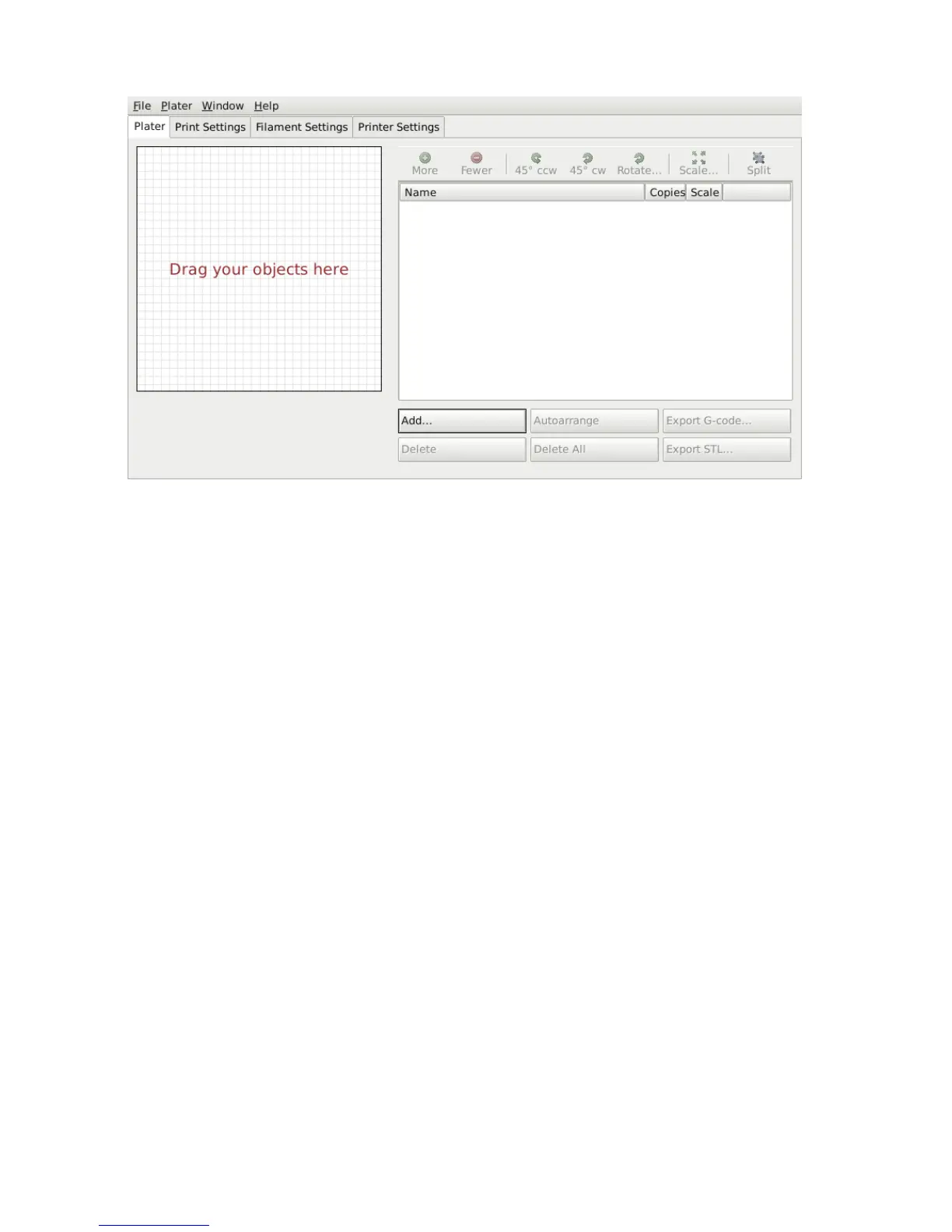

Figure 2.10: Plater
Once you have acquired a model, drag it onto the Plater window (or use
the Add button below the file list) to load it into Slic3r. In the figure below,
the traditional RepRap Minimug
9
is loaded, and is viewed from above. The
ring around the model is a skirt - a single perimeter, several millimeters
away from the model, which is extruded first. This is useful in making sure
the plastic is flowing smoothly from the nozzle when the model is starting
to be printed.
9
http://www.thingiverse.com/thing:18357
68

LulzBot Mini Specifications

General

Tweezers	Yes
Certification	CE, FCC, WEEE
Product color	Black, Green
Viewing window	No
Maximum print platform temperature	120 °C
Package weight	11330 g
AC input voltage	100/240 V
Power consumption (typical)	150 W
Print technology	-
Printing material	ABS, HIPS, Nylon, PVA, Polycarbonate (PC), Polylactic acid (PLA)
Layer thickness (max)	0.5 mm
Layer thickness (min)	0.05 mm
Maximum build size (WxDxH)	152 x 152 x 158 mm
Filament thickness supported	3 mm
Maximum vertical build speed	275 mm/sec
Printing compartment volume	3.65 L

Weight and Dimensions

Depth	435 mm
Width	340 mm
Height	385 mm
Weight	8550 g
