LulzBot Mini User Manual

3D Printer Software
1.23 Printrun
Website: http://www.github.com/kliment/Printrun The host software,
Printrun, can be used to start up and control your 3D printer (Figure 1.19,
page 44). The host controls include: setting the extruder and print surface

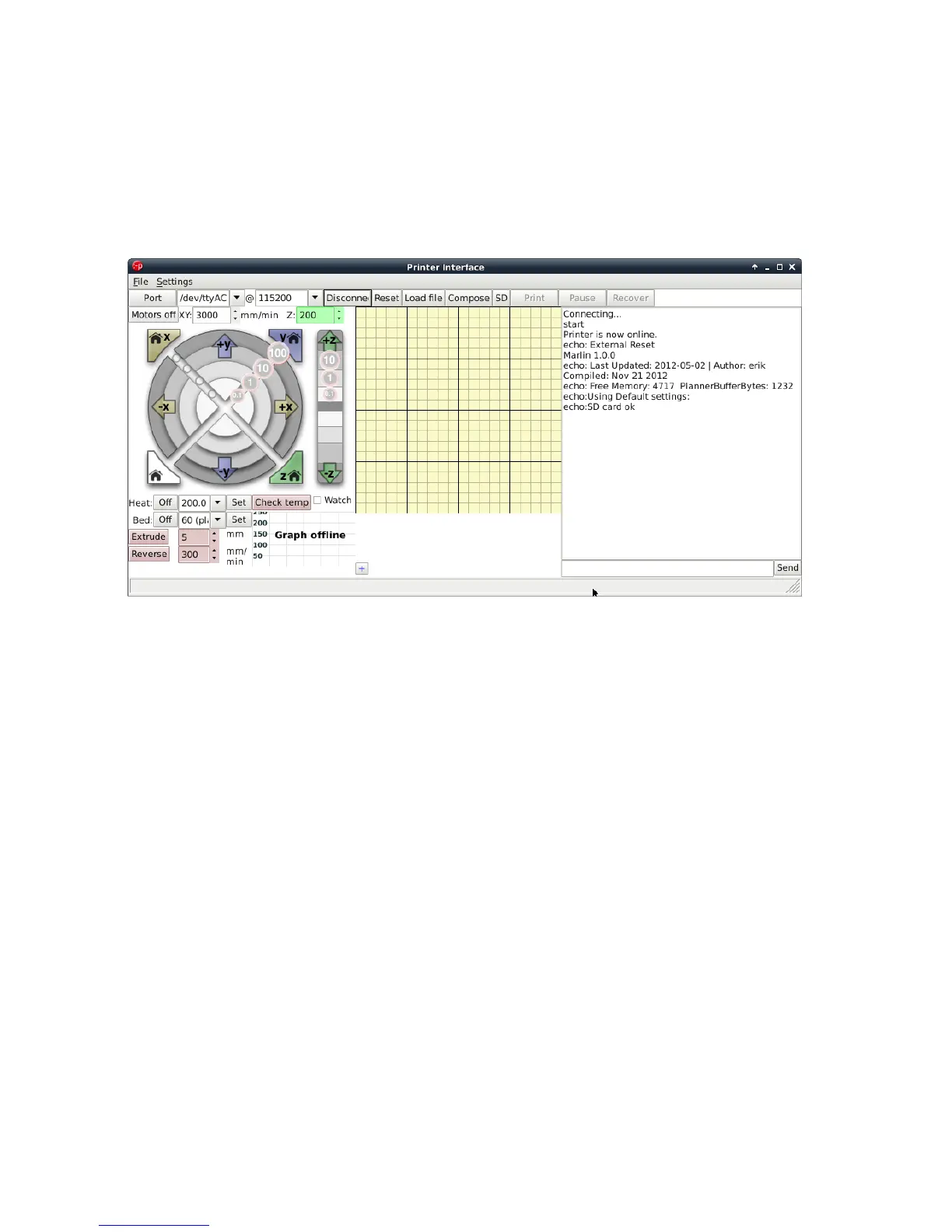

Figure 1.18: Printrun application for 3D printer control
temperatures, manual control of each axis, and manual extrusion. The host
is also where you can push print files (.gcode) to the 3D printer or load
print files from the SD card for printing out model designs.
Installing Printrun
Printrun contains several different applications that can be used to con-
trol the Mini 3D printer. It can be installed on Windows, Mac OSX
and Linux based computers. Pronterface is the graphical user interface
for Printrun. Pronsole allows printing from the command line, and
can be used for scripting and some automation. Plater allows you
to arrange and combine several STL files into one. More information
on the other programs within the Printrun package can be found at
https://github.com/kliment/Printrun. Printrun can be downloaded
from LulzBot.com/support/downloads. Download the version for your
operating system and extract. You will need an archive manager to extract
42

LulzBot Mini Specifications

General

Tweezers	Yes
Certification	CE, FCC, WEEE
Product color	Black, Green
Viewing window	No
Maximum print platform temperature	120 °C
Package weight	11330 g
AC input voltage	100/240 V
Power consumption (typical)	150 W
Print technology	-
Printing material	ABS, HIPS, Nylon, PVA, Polycarbonate (PC), Polylactic acid (PLA)
Layer thickness (max)	0.5 mm
Layer thickness (min)	0.05 mm
Maximum build size (WxDxH)	152 x 152 x 158 mm
Filament thickness supported	3 mm
Maximum vertical build speed	275 mm/sec
Printing compartment volume	3.65 L

Weight and Dimensions

Depth	435 mm
Width	340 mm
Height	385 mm
Weight	8550 g
