LulzBot Mini User Manual

Slic3r
2. Bed Size
This setting defines the maximum distance the extruder may travel along
the X and Y axis. The dimensions of the Mini 3D print surface are X: 160
and Y: 160.
Be sure to measure from the lower left corner where the extruder nozzle
rests when are the home position to the maximum distance the nozzle can
travel in each direction.

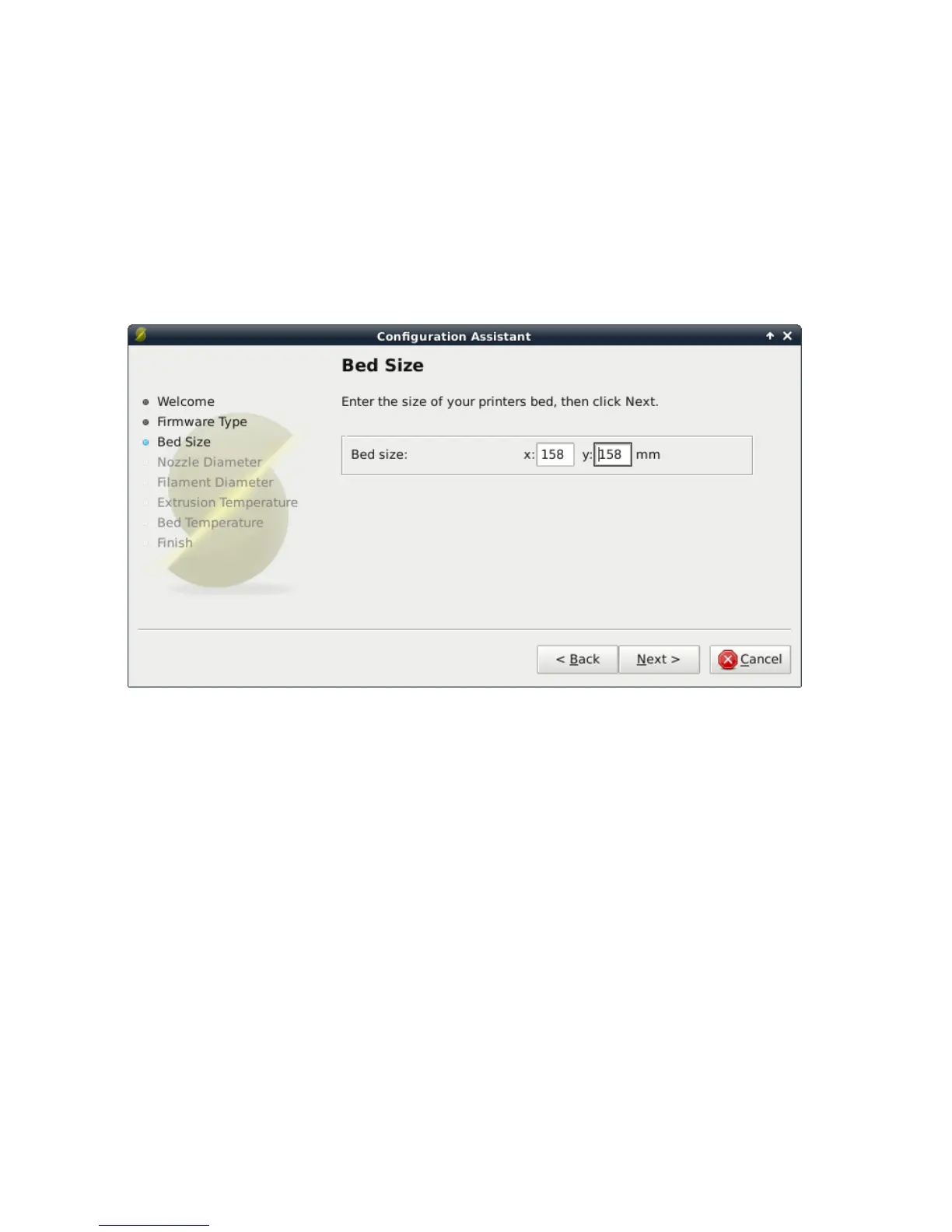

Figure 2.3: Configuration Wizard: Bed Size
58

LulzBot Mini Specifications

General

Tweezers	Yes
Certification	CE, FCC, WEEE
Product color	Black, Green
Viewing window	No
Maximum print platform temperature	120 °C
Package weight	11330 g
AC input voltage	100/240 V
Power consumption (typical)	150 W
Print technology	-
Printing material	ABS, HIPS, Nylon, PVA, Polycarbonate (PC), Polylactic acid (PLA)
Layer thickness (max)	0.5 mm
Layer thickness (min)	0.05 mm
Maximum build size (WxDxH)	152 x 152 x 158 mm
Filament thickness supported	3 mm
Maximum vertical build speed	275 mm/sec
Printing compartment volume	3.65 L

Weight and Dimensions

Depth	435 mm
Width	340 mm
Height	385 mm
Weight	8550 g
