LulzBot Mini User Manual

Slic3r
• Infill - As the infill is hidden this can be extruded a little faster.
Take care though not to go too fast as higher speeds results in thinner
extrusions, and this may affect how the extrusions bond.
• Travel - The jump between the end of one extrusion and the next
should usually be performed as quickly as the printer will allow in
order to minimise any mess caused by material oozing from the nozzle.
Brim. Brim width is used to add more perimeters to the first layer, as a
base flange, in order to provide more surface area for the print to stick to
the bed with in order to reduce warping (see §2.3). The brim is then cut
away once the print is finished and removed from the bed.

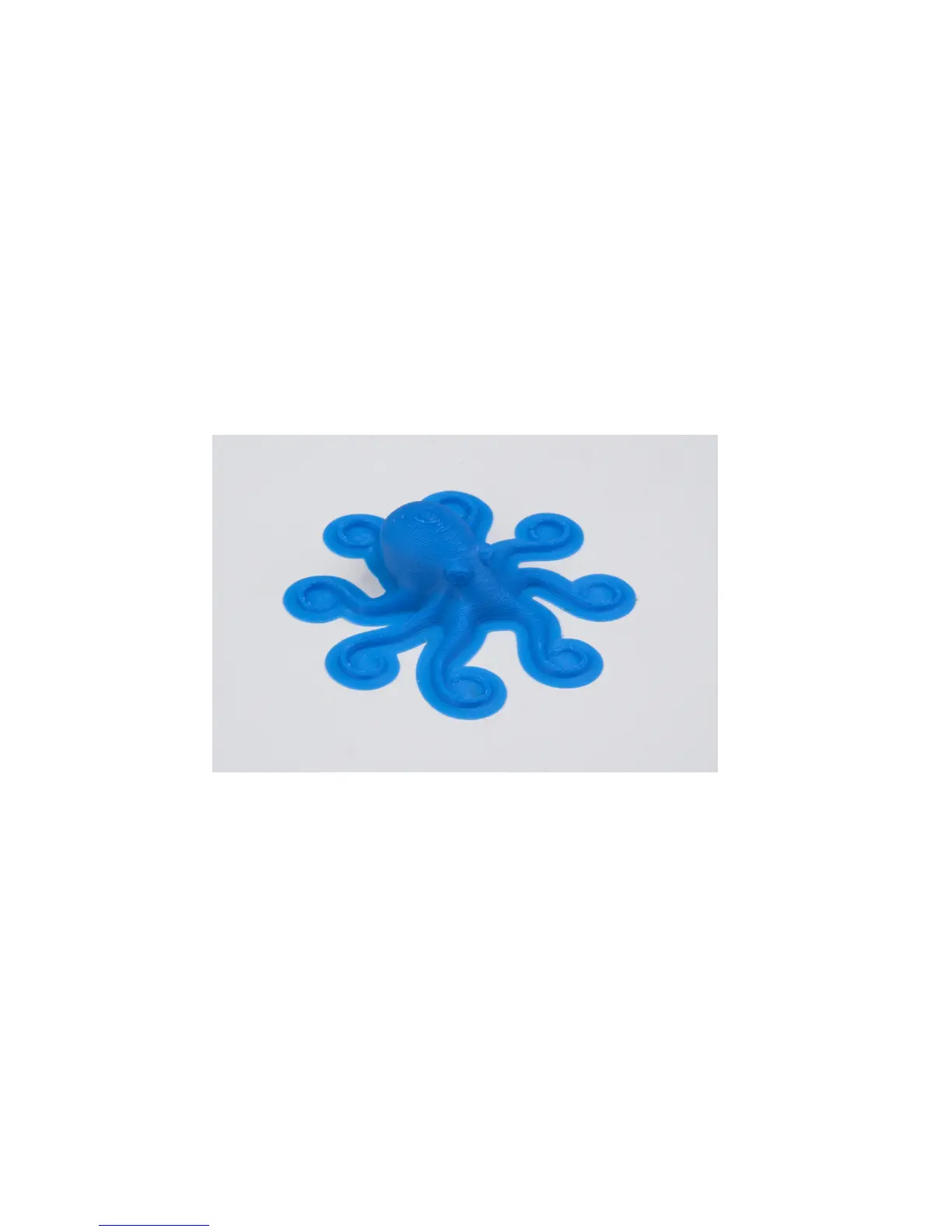

Figure 2.18: An example of brim.
Sequential Printing. This feature allows to compose a plate of objects but
have the printer complete each one individually before going back to Z
= 0 and starting with the next one. See the subsection about Sequential
Printing in the Advanced Topics chapter.
Filament Settings
The Filament Settings will normally be used infrequently, for example
on receipt of a new roll of filament.
76

LulzBot Mini Specifications

General

Tweezers	Yes
Certification	CE, FCC, WEEE
Product color	Black, Green
Viewing window	No
Maximum print platform temperature	120 °C
Package weight	11330 g
AC input voltage	100/240 V
Power consumption (typical)	150 W
Print technology	-
Printing material	ABS, HIPS, Nylon, PVA, Polycarbonate (PC), Polylactic acid (PLA)
Layer thickness (max)	0.5 mm
Layer thickness (min)	0.05 mm
Maximum build size (WxDxH)	152 x 152 x 158 mm
Filament thickness supported	3 mm
Maximum vertical build speed	275 mm/sec
Printing compartment volume	3.65 L

Weight and Dimensions

Depth	435 mm
Width	340 mm
Height	385 mm
Weight	8550 g
