LulzBot Mini User Manual

Slic3r

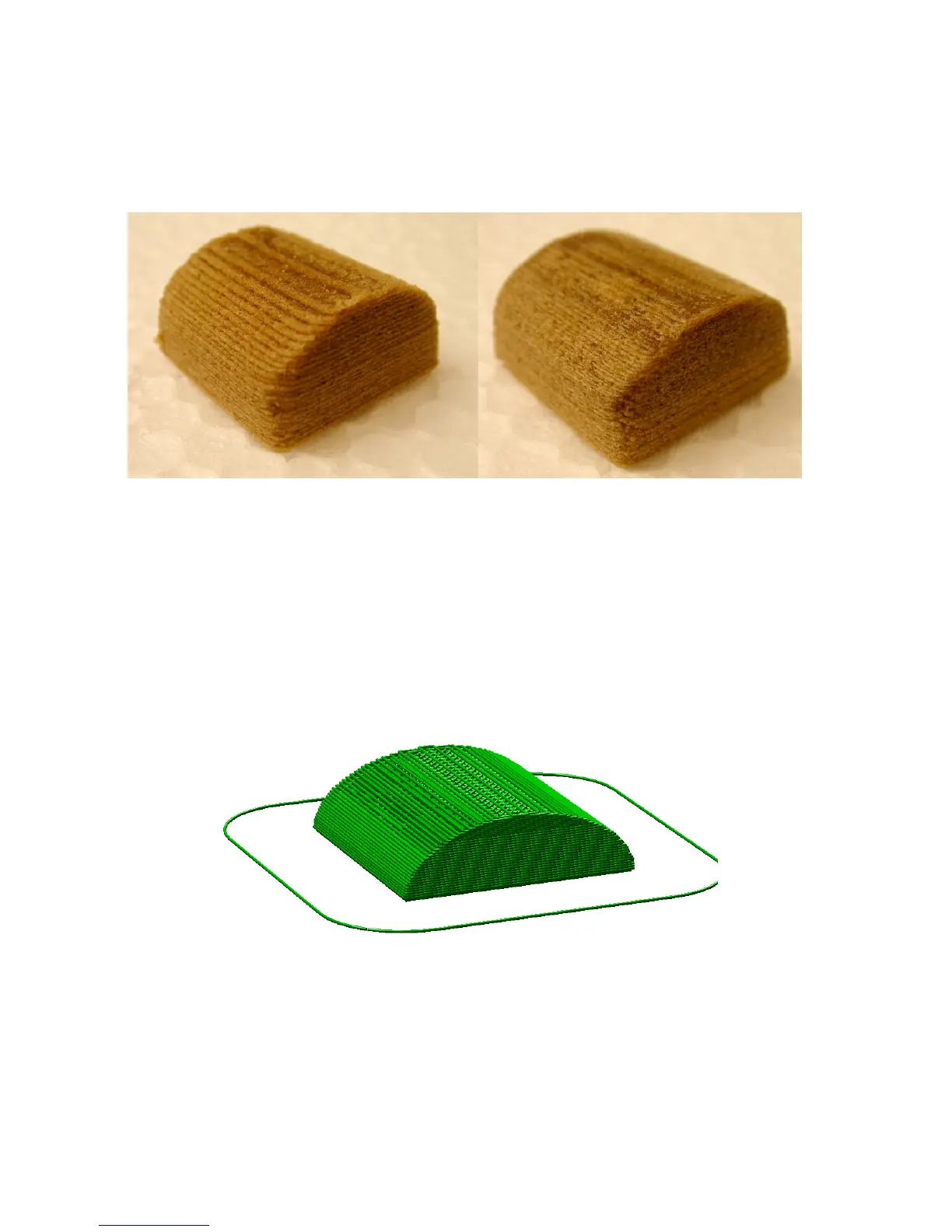

Fig. 2.54 shows the example model printed. The print on the left has
0.4mm layer height throughout, whereas the print on the right has the
variable layer height.
Figure 2.54: Example print with variable layer height.
An additional feature of the variable layers height option is that by
entering a zero for a range that part of the model will not be printed. Fig.
2.55 shows the G-Code where layers between 0 and 4mm are skipped. This
is a useful way of dividing a tall model into multiple, shorter subsections
which can be printed individually and assembled afterwards.
Figure 2.55: Example with skipped layers.
108

LulzBot Mini Specifications

General

Tweezers	Yes
Certification	CE, FCC, WEEE
Product color	Black, Green
Viewing window	No
Maximum print platform temperature	120 °C
Package weight	11330 g
AC input voltage	100/240 V
Power consumption (typical)	150 W
Print technology	-
Printing material	ABS, HIPS, Nylon, PVA, Polycarbonate (PC), Polylactic acid (PLA)
Layer thickness (max)	0.5 mm
Layer thickness (min)	0.05 mm
Maximum build size (WxDxH)	152 x 152 x 158 mm
Filament thickness supported	3 mm
Maximum vertical build speed	275 mm/sec
Printing compartment volume	3.65 L

Weight and Dimensions

Depth	435 mm
Width	340 mm
Height	385 mm
Weight	8550 g
