LulzBot Mini User Manual

Slic3r
Infill Patterns and Density
There are several considerations when choosing an infill pattern: object
strength, time and material, personal preference. It can be inferred that a
more complex pattern will require more moves, and hence take more time
and material.

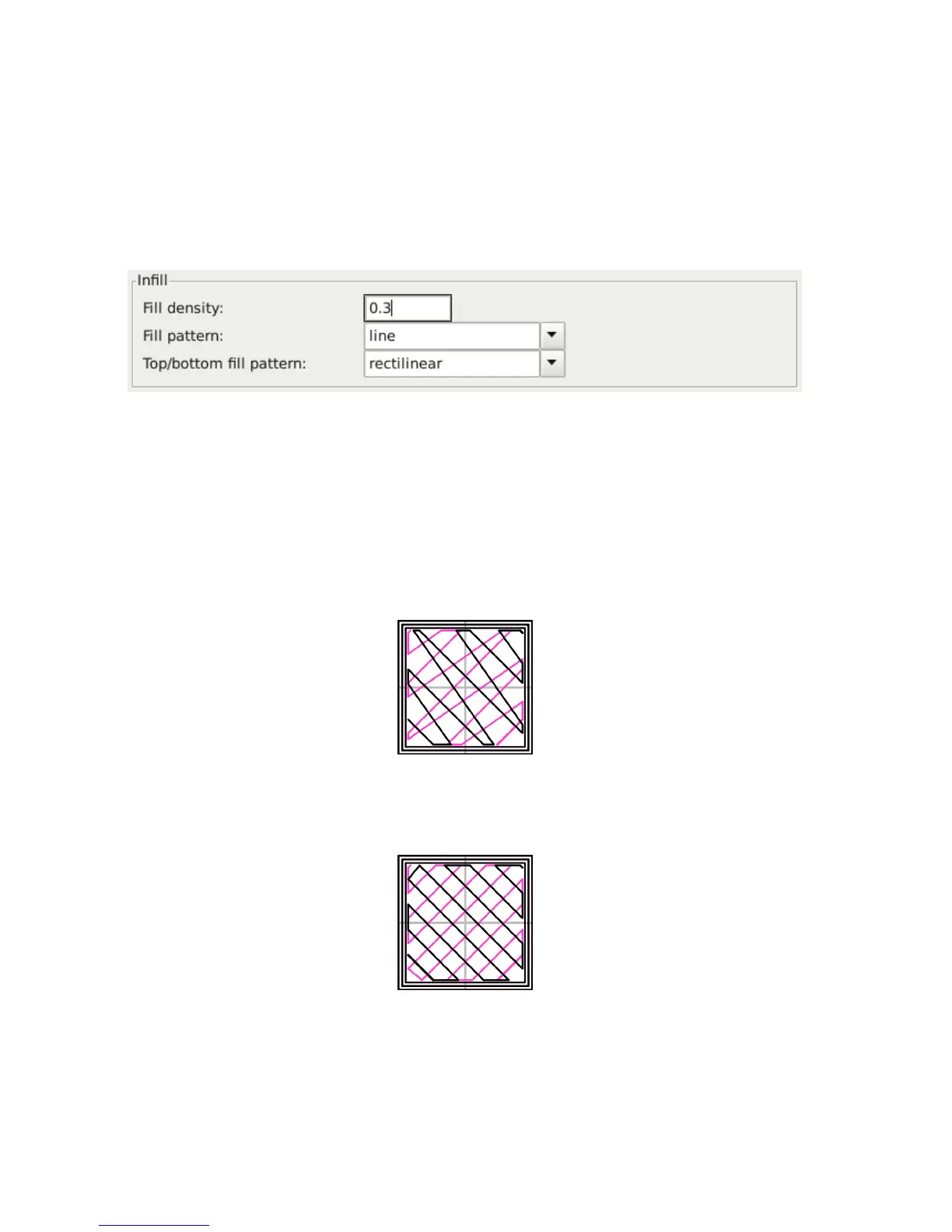

Figure 2.22: Infill pattern settings.
Slic3r offers several infill patterns, four regular, and three more exotic
flavours. The numbers given in brackets below each figure are a rough
estimate of material used and time taken for a simple 20mm cube model
15
.
Note that this is only indicative, as model complexity and other factors
will affect time and material.
Figure 2.23: Infill pattern: Line (344.51mm / 5m:20s)
Figure 2.24: Infill pattern: Rectilinear (350.57mm / 5m:23s)
15
Taken from http://gcode.ws
84

LulzBot Mini Specifications

General

Tweezers	Yes
Certification	CE, FCC, WEEE
Product color	Black, Green
Viewing window	No
Maximum print platform temperature	120 °C
Package weight	11330 g
AC input voltage	100/240 V
Power consumption (typical)	150 W
Print technology	-
Printing material	ABS, HIPS, Nylon, PVA, Polycarbonate (PC), Polylactic acid (PLA)
Layer thickness (max)	0.5 mm
Layer thickness (min)	0.05 mm
Maximum build size (WxDxH)	152 x 152 x 158 mm
Filament thickness supported	3 mm
Maximum vertical build speed	275 mm/sec
Printing compartment volume	3.65 L

Weight and Dimensions

Depth	435 mm
Width	340 mm
Height	385 mm
Weight	8550 g
