LulzBot Mini User Manual

Slic3r
Because the secondary extruder will be dormant whilst the first is
working, and vice-versa, it is important that the material is sufficiently
retracted to stop oozing. As with the regular retraction settings (see p.89)
the Length options is measured from the raw filament entering the extruder.
Assigning Filaments
When a printer profile with multiple extruders has been selected the Plater
tab allows the selection of a different filament for each extruder.

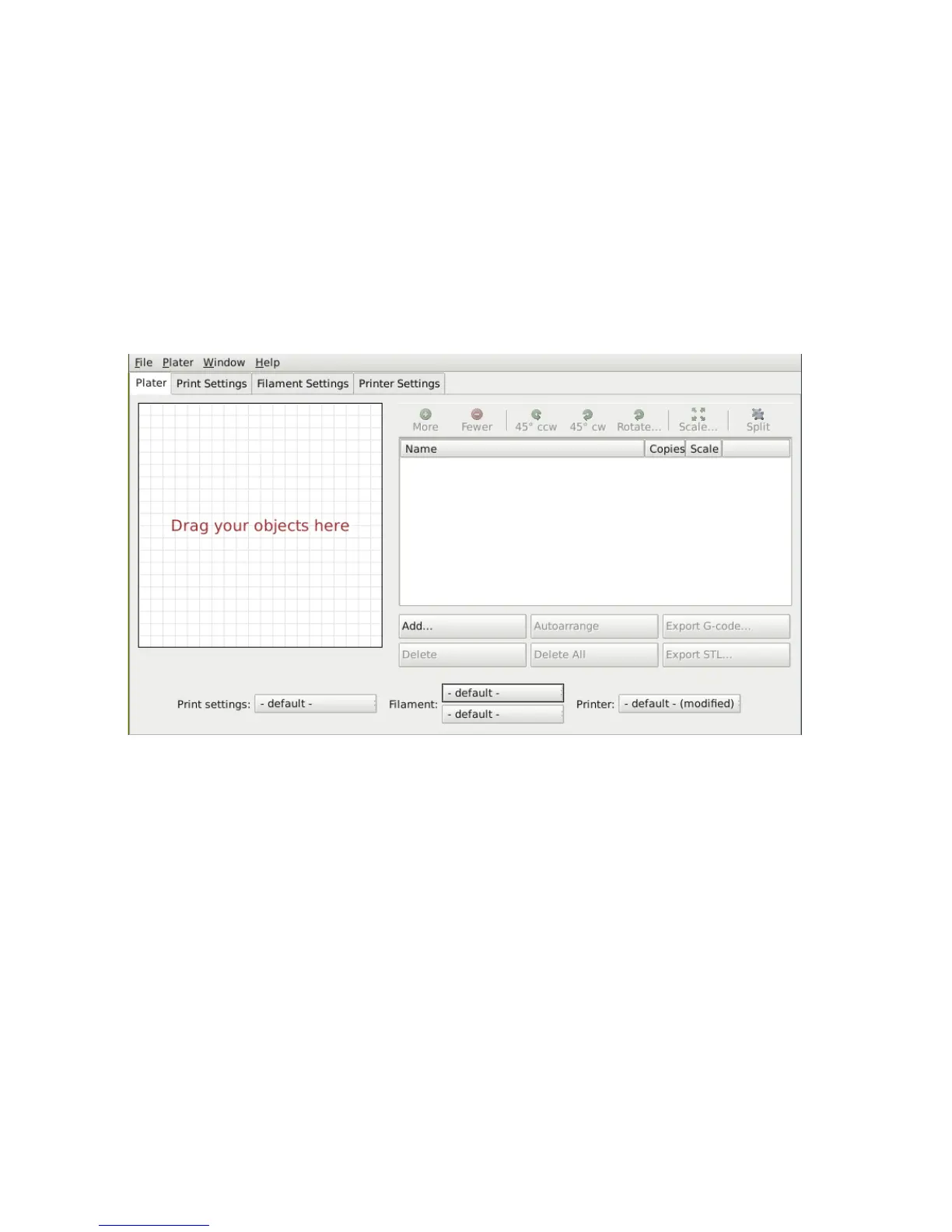

Figure 2.45: Plater with multiple filament options.
Assigning Extruders for Single-material Objects
For single material prints, where the secondary extruder is to be tasked with
a particular extrusion, the Multiple Extruders subsection of the Print
Settings tab gives the ability to assign an extruder to each extrusion type.
100

LulzBot Mini Specifications

General

Tweezers	Yes
Certification	CE, FCC, WEEE
Product color	Black, Green
Viewing window	No
Maximum print platform temperature	120 °C
Package weight	11330 g
AC input voltage	100/240 V
Power consumption (typical)	150 W
Print technology	-
Printing material	ABS, HIPS, Nylon, PVA, Polycarbonate (PC), Polylactic acid (PLA)
Layer thickness (max)	0.5 mm
Layer thickness (min)	0.05 mm
Maximum build size (WxDxH)	152 x 152 x 158 mm
Filament thickness supported	3 mm
Maximum vertical build speed	275 mm/sec
Printing compartment volume	3.65 L

Weight and Dimensions

Depth	435 mm
Width	340 mm
Height	385 mm
Weight	8550 g
