LulzBot Mini User Manual

Slic3r
4. Filament Diameter
For Slic3r to produce accurate results it must know as accurately as possible
how much material is pushed through the extruder. Therefore it is vital to
give it as precise a value as possible for the filament diameter.
Although the filament used in FFF printers is sold as being either
3mm or 1.75mm this is only a general guide. The diameter can vary
between manufacturers and even between batches. Therefore it is highly
recommended to take multiple measurements from along a length of the
filament and use the average. For example, measurements of 2.89, 2.88,
2.90 and 2.91 would yield an average of 2.895, and so this would be used.

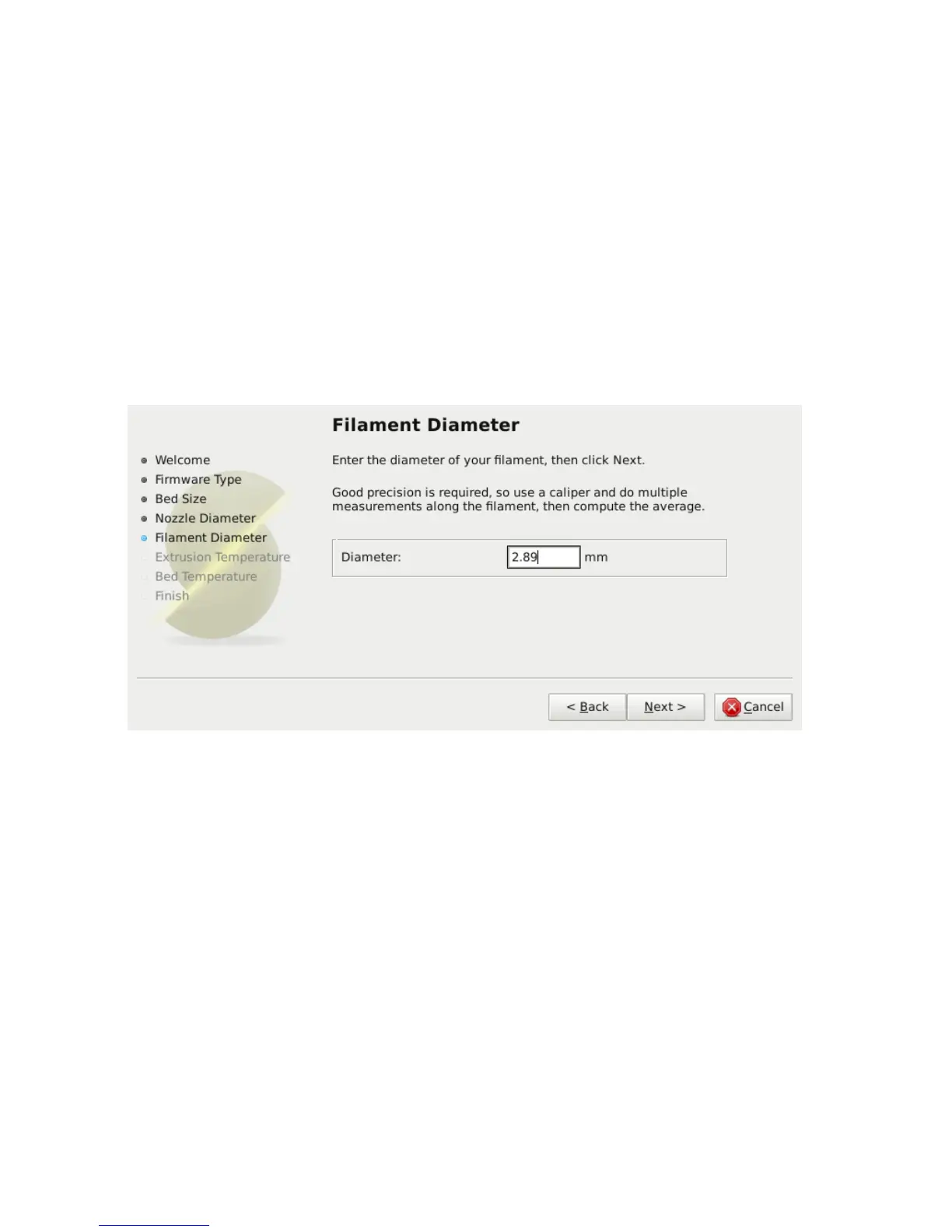

Figure 2.5: Configuration Wizard: Filament Diamter
60

LulzBot Mini Specifications

General

Tweezers	Yes
Certification	CE, FCC, WEEE
Product color	Black, Green
Viewing window	No
Maximum print platform temperature	120 °C
Package weight	11330 g
AC input voltage	100/240 V
Power consumption (typical)	150 W
Print technology	-
Printing material	ABS, HIPS, Nylon, PVA, Polycarbonate (PC), Polylactic acid (PLA)
Layer thickness (max)	0.5 mm
Layer thickness (min)	0.05 mm
Maximum build size (WxDxH)	152 x 152 x 158 mm
Filament thickness supported	3 mm
Maximum vertical build speed	275 mm/sec
Printing compartment volume	3.65 L

Weight and Dimensions

Depth	435 mm
Width	340 mm
Height	385 mm
Weight	8550 g
