214325 112 Revision A

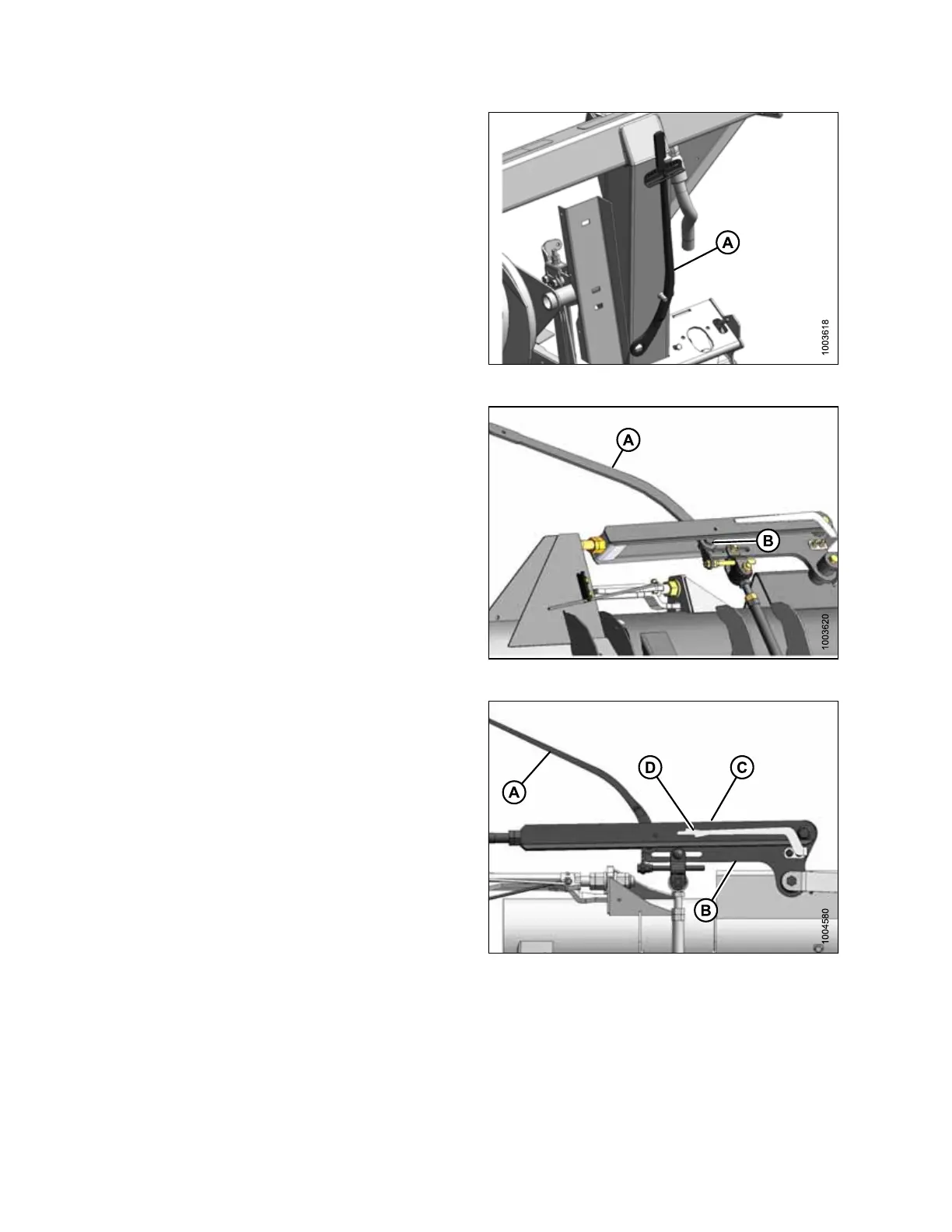

Figure 4.44: Torque Wrench
7. Retrieve wrench (A) from right leg of adapter.
Figure 4.45: Balance Linkage
8. Place torque wrench (A) on bolt (B).
Figure 4.46: Balance Linkage
9. Check that pointer (D) is properly positioned as follows:
a. Use wrench (A) to move bell crank (B) so that lower
edge of bell crank is parallel to top-link (C).
b. Check that pointer (D) is lined up with the top-
link (C). Bend pointer if necessary.
PERFORMING PREDELIVERY CHECKS
