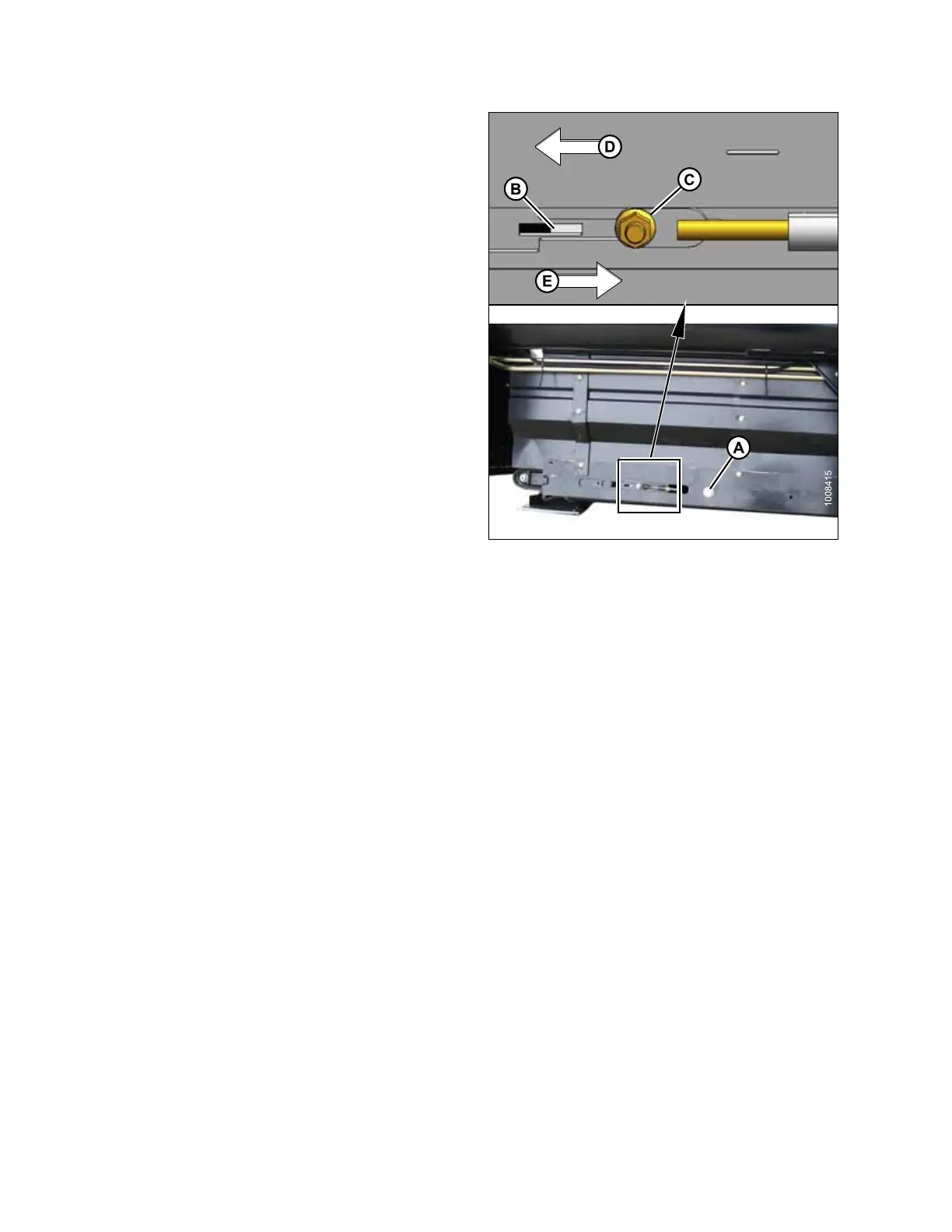

Figure 4.72: Tension Adjuster (Left Shown –
Right Opposite)
IMPORTANT:
Do NOT adjust nut (C). This nut is used for draper
alignment only.
6. Turn adjuster bolt (A) counterclockwise to loosen
draper. The white indicator bar (B) will move outboard in
direction of arrow (D) to indicate that draper is
loosening. Loosen until bar is about halfway in window.
7. Turn adjuster bolt (A) clockwise to tighten draper. The
white indicator bar (B) will move inboard in direction of
arrow (E) to indicate that draper is tightening. Tighten
until bar is about halfway in window.
IMPORTANT:
• To avoid premature failure of draper, draper rollers,
and/or tightener components, operate ONLY with the
white bar visible.
• To prevent draper from scooping dirt, ensure draper
is tight enough that it does NOT sag below point
where cutterbar contacts the ground.
