214325 130 Revision A

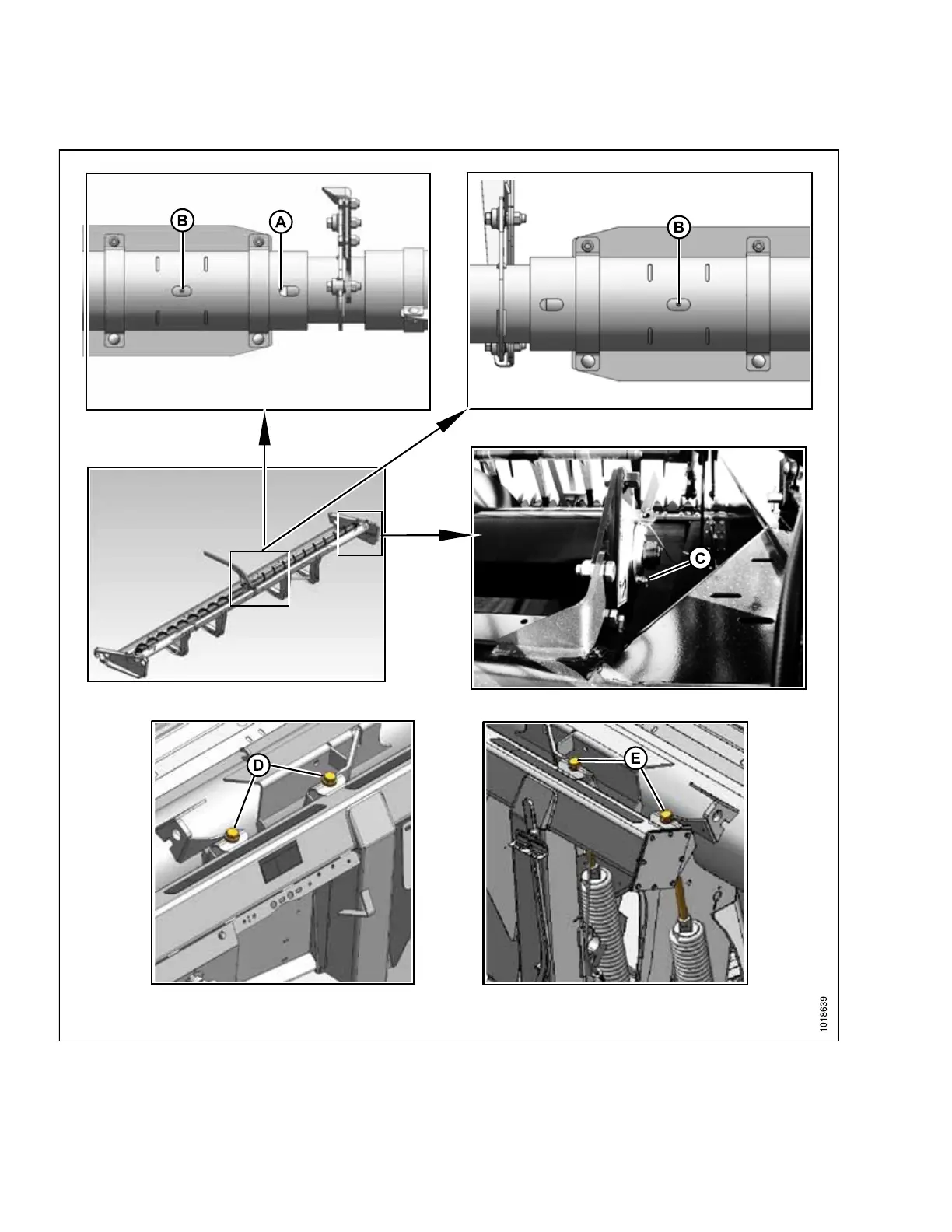

Figure 4.79: Upper Cross Auger and Float Spring Tensioners
A - Upper Cross Auger U-joint B - Upper Cross Auger Bearing C - Upper Cross Auger Bearing
D - Float Spring Tensioners - Left E - Float Spring Tensioners - Right
PERFORMING PREDELIVERY CHECKS
