214325 131 Revision A

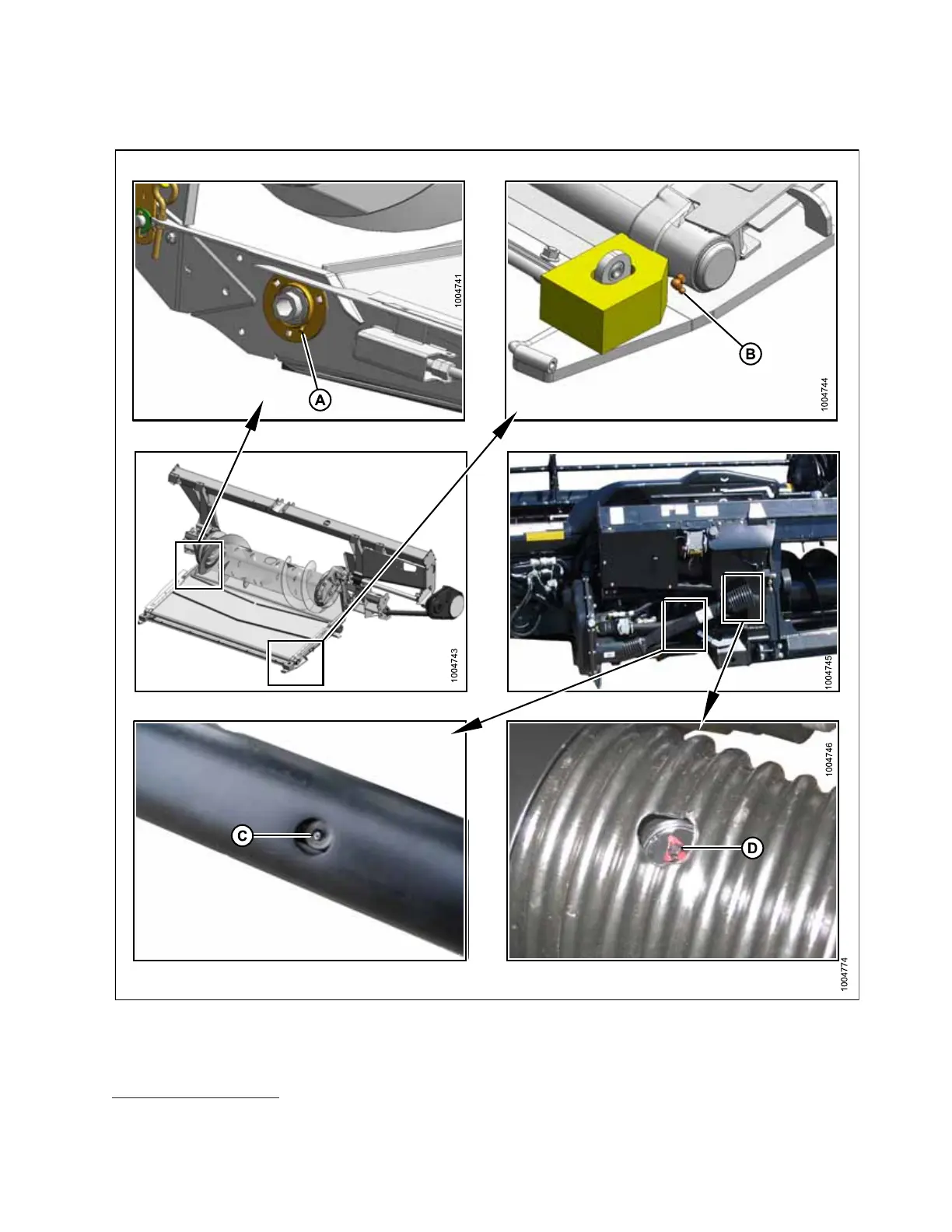

Figure 4.80: Drive Roller Bearing, Idler Roller, Slip Joint, and Driveline Universal
A - Drive Roller Bearing B - Idler Roller - Both Sides C - Driveline Slip Joint
1
D - Driveline Universal (2 Places)
PERFORMING PREDELIVERY CHECKS
1. 10% moly grease is recommended for the driveline slip joint.
