MacDon FFT FD75 - Page 142

214325 132 Revision A

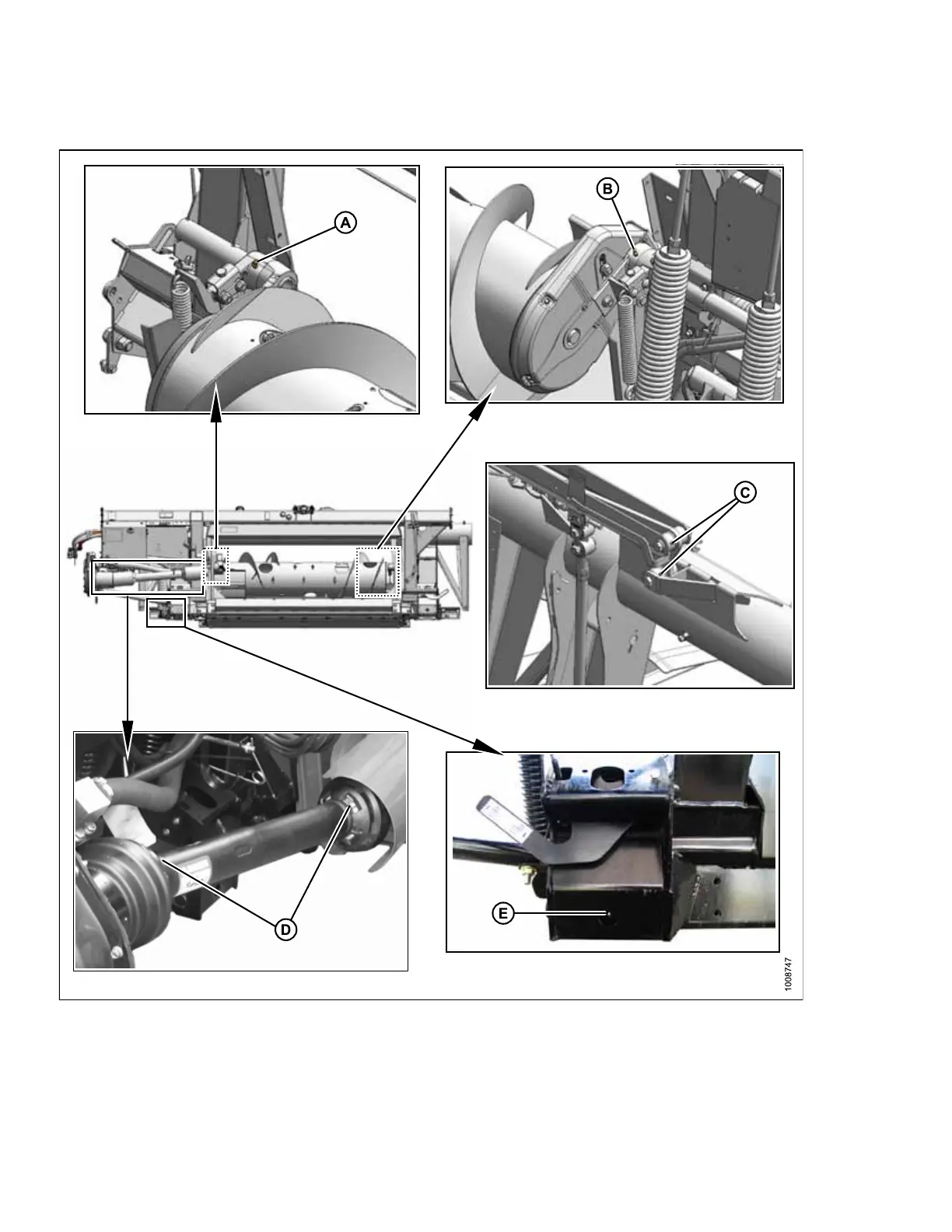

Figure 4.81: Float Pivot, Driveline Guard, Flex Linkage, and Auger Pivot
A - Auger Right Pivot B - Auger Left Pivot C - Flex Linkage (2 Places) (Both Sides)
D - Driveline Guard (2 Places) E - Float Pivot (2 Places)
PERFORMING PREDELIVERY CHECKS
