214325 133 Revision A

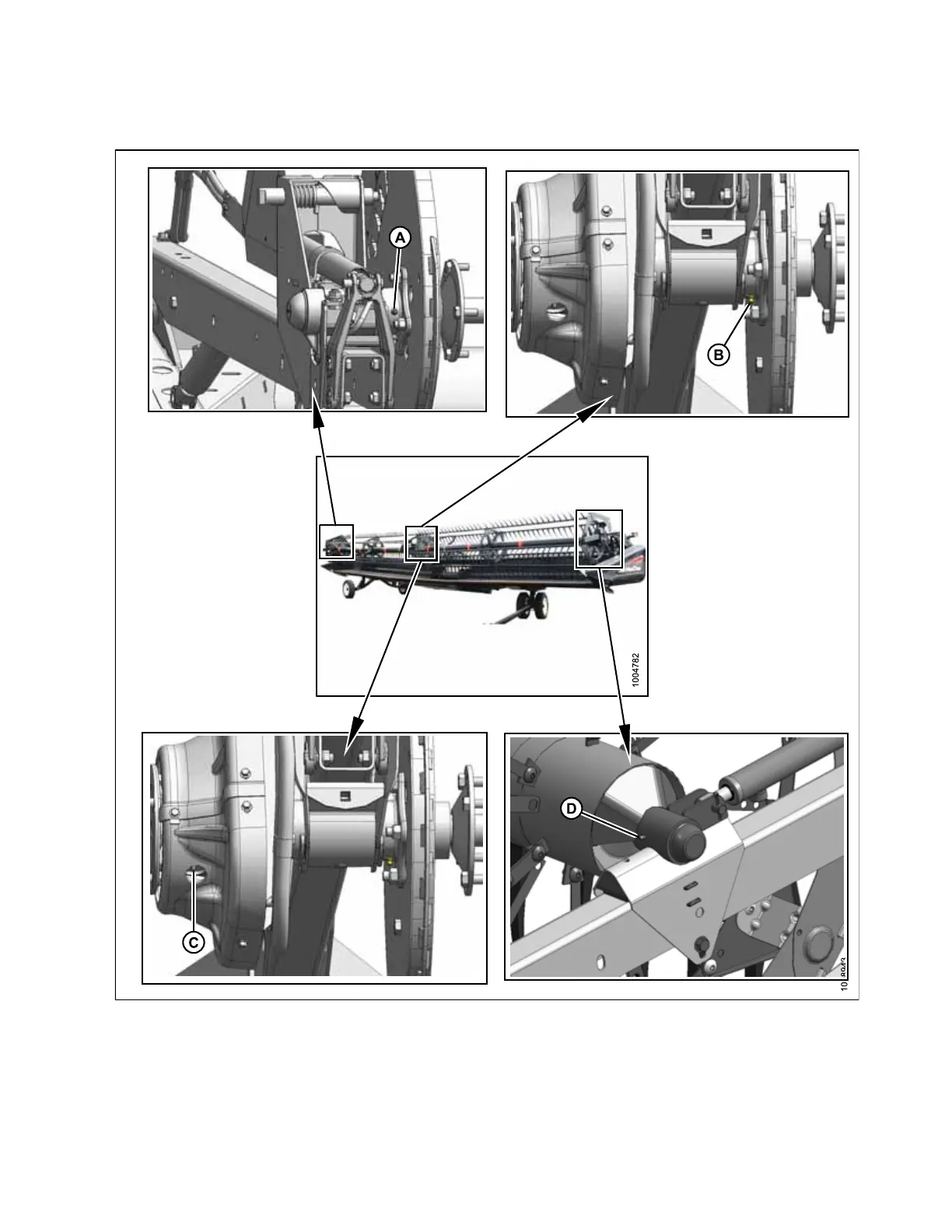

Figure 4.82: Reel Shaft Bearings
A - Reel Shaft Right Bearing (1 Place) B - Reel Center Bearing (1 Place) C - Reel Universal (1 Place)
D - Reel Shaft Left Bearing (1 Place)
PERFORMING PREDELIVERY CHECKS
