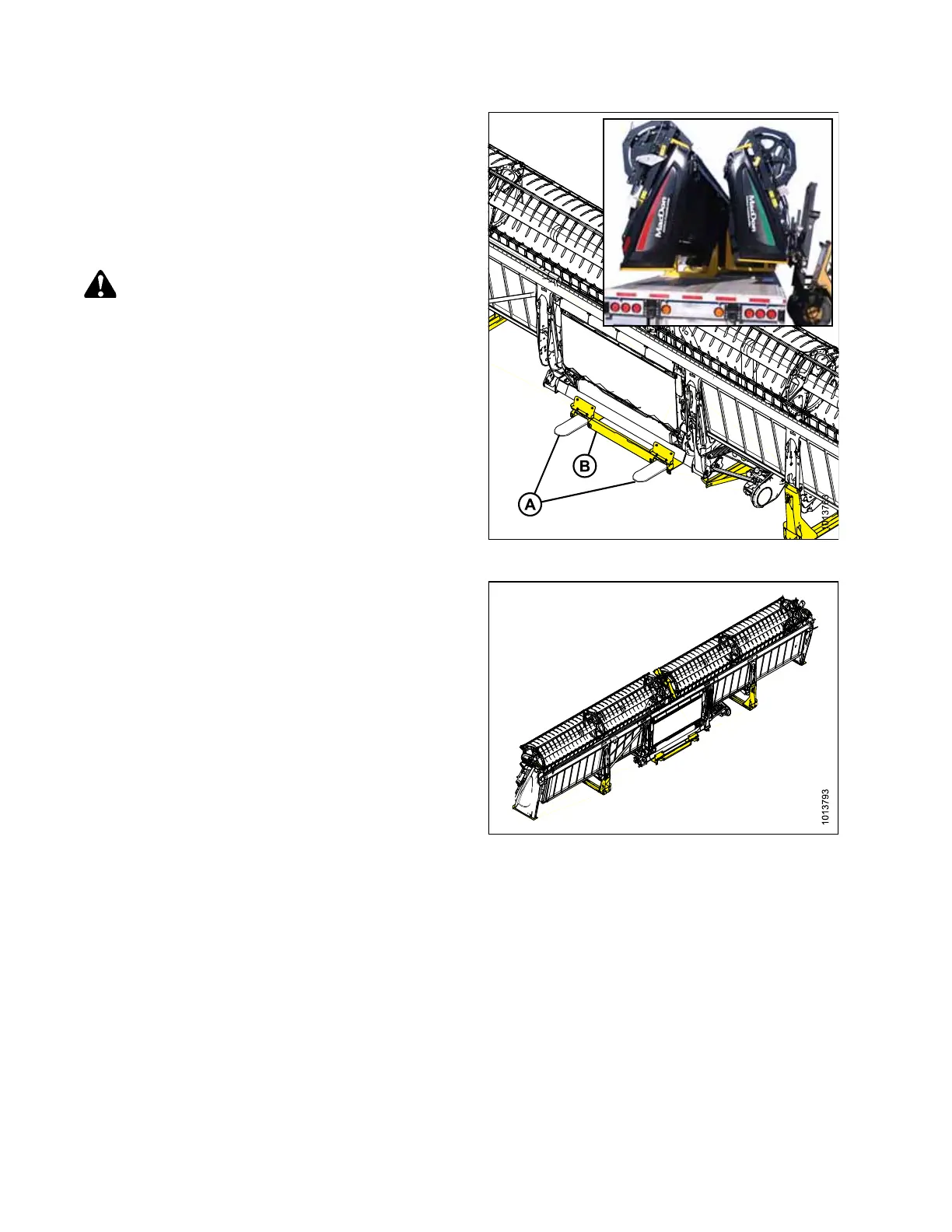

Figure 2.2: Header Shipping Supports
3. Approach header and line up forks (A) with fork slider
channels (B) under adapter frame.
4. Slide forks (A) underneath fork slider channels (B) as
far as possible without contacting shipping support of
opposite header.
5. Remove hauler’s tie-down straps, chains, and
wooden blocks.
WARNING
Be sure forks are secure before moving away from
load. Stand clear when lifting.
6. Slowly raise header off trailer deck.
7. Back up until unit clears trailer and slowly lower to
150 mm (6 in.) from ground.
Figure 2.3: Header after Unloading
8. Take header to storage or setup area. Ensure ground is
flat and free of rocks or debris that could damage
header.
9. Repeat Steps 3, page 6 to 8, page 6 for second header.
10. Check for shipping damage and missing parts.
UNLOADING HEADER AND ADAPTER
