214325 152 Revision A

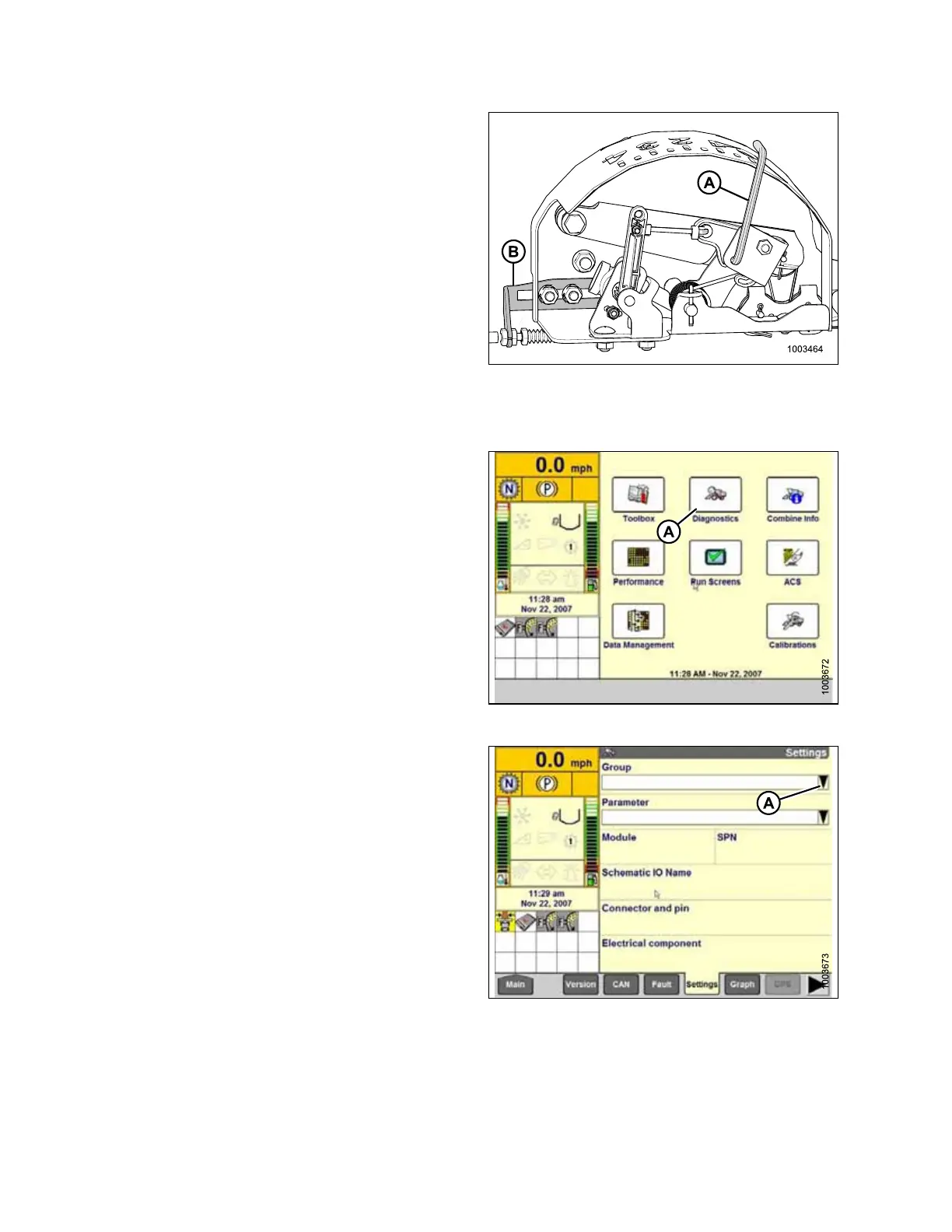

Figure 5.28: Float Indicator Box (Most Common
5 Volt AHHC Sensor Assembly Shown)
3. Adjust cable take-up bracket (B) (if necessary) until
pointer (A) on float indicator is on 0.
4. Ensure header float is unlocked.
Figure 5.29: Case IH Combine Display
5. Select DIAGNOSTICS (A) on MAIN page. The
DIAGNOSTICS page opens.
6. Select SETTINGS. The SETTINGS page opens.
Figure 5.30: Case IH Combine Display
7. Select GROUP drop-down arrow (A). The GROUP
dialog box displays.
SETTING UP AUTO HEADER HEIGHT CONTROL
