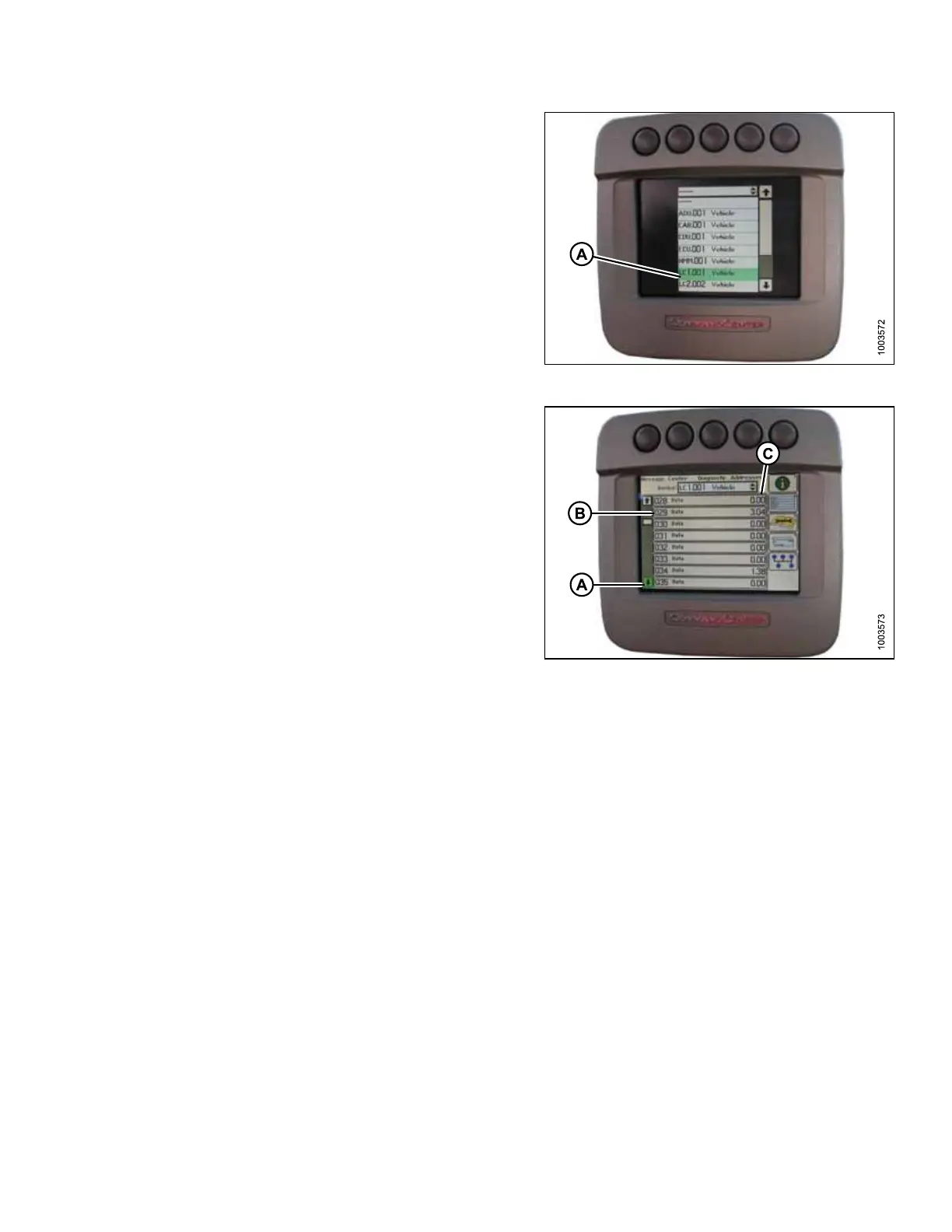

Figure 5.156: John Deere Combine Display
9. Use scroll knob to highlight LC 1.001 VEHICLE (A), and
then press check mark button to select it.
Figure 5.157: John Deere Combine Display
10. Use scroll knob to highlight down arrow (A) and press
check mark button to scroll through list until 029
DATA (B) is displayed and voltage reading (C) appears
on combine display.
11. Ensure header float is unlocked.
12. Start combine and fully lower feeder house to the ground.
NOTE:
You may need to hold HEADER DOWN switch for a few seconds to ensure feeder house is fully lowered.
13. Check sensor reading on monitor.
14. Raise header so it is just off ground and recheck sensor reading.
15. If sensor voltage is not within low and high limits or if range between low and high limits is insufficient, refer to
Adjusting Voltage Limits, page 142.
