Calibrating Auto Header Height Control (CLAAS 500 Series)
For best performance of auto header height control (AHHC), perform these procedures with center-link set to D.
When setup and calibration are complete, adjust center-link back to desired header angle. Refer to Header Angle in
header operator’s manual for instructions.
NOTE:
Changes may have been made to combine controls or display since this document was published. Refer to
combine operator’s manual for updates.
1. Ensure center-link is set to D.

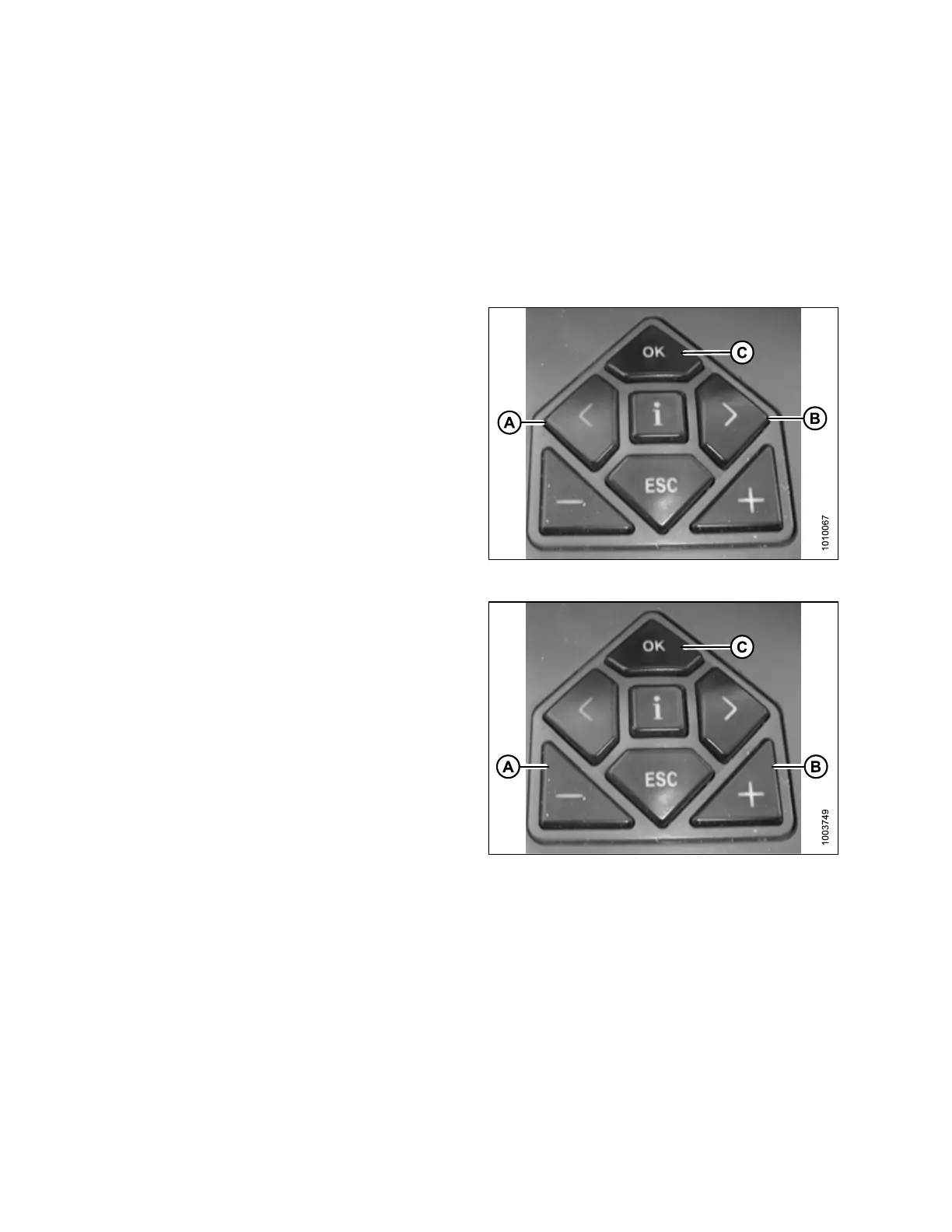

Figure 5.200: CLAAS Combine Controls
2. Use < key (A) or > key (B) to select AUTO HEADER,
and press OK key (C). The E5 page displays whether
automatic header height is ON or OFF.
Figure 5.201: CLAAS Combine Controls
3. Use – key (A) or + key (B) to turn ON AHHC, and
press OK (C).
4. Engage threshing mechanism and header.
SETTING UP AUTO HEADER HEIGHT CONTROL
