214325 233 Revision A

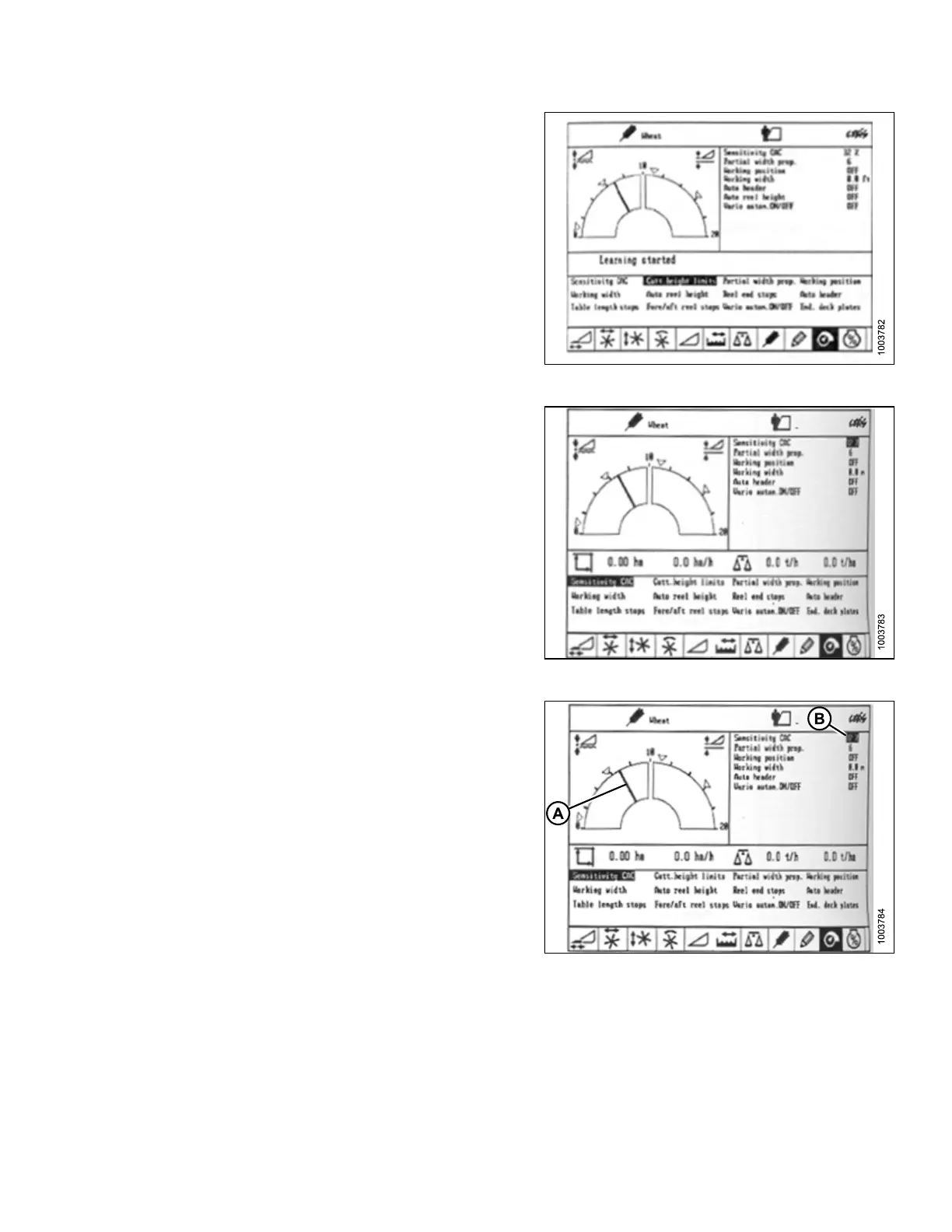

Figure 5.202: CLAAS Combine Display
5. Use < or > key to select CUTT.HEIGHT LIMITS, and
press OK.
6. Follow procedure displayed on screen to program
upper and lower limits of header into CEBIS (CLAAS
Electronic on-Board Information System).
Figure 5.203: CLAAS Combine Display
7. Use < or > key to select SENSITIVITY CAC, and
press OK.
NOTE:
Setting sensitivity of AHHC system impacts reaction
speed of AHHC on the header.
8. Use – key or + key to change setting of reaction speed,
and press OK key.
Figure 5.204: CLAAS Combine Display
9. Use line (A) or value (B) to determine sensitivity setting.
NOTE:
The setting can be adjusted from 0–100%. When
sensitivity is adjusted to 0%, signals from sensing
bands have no effect on automatic cutting height
adjustment. When sensitivity is adjusted to 100%,
signals from sensing bands have maximum effect on
automatic cutting height adjustment. The recommended
starting point is 50%.
SETTING UP AUTO HEADER HEIGHT CONTROL
