214325 41 Revision A

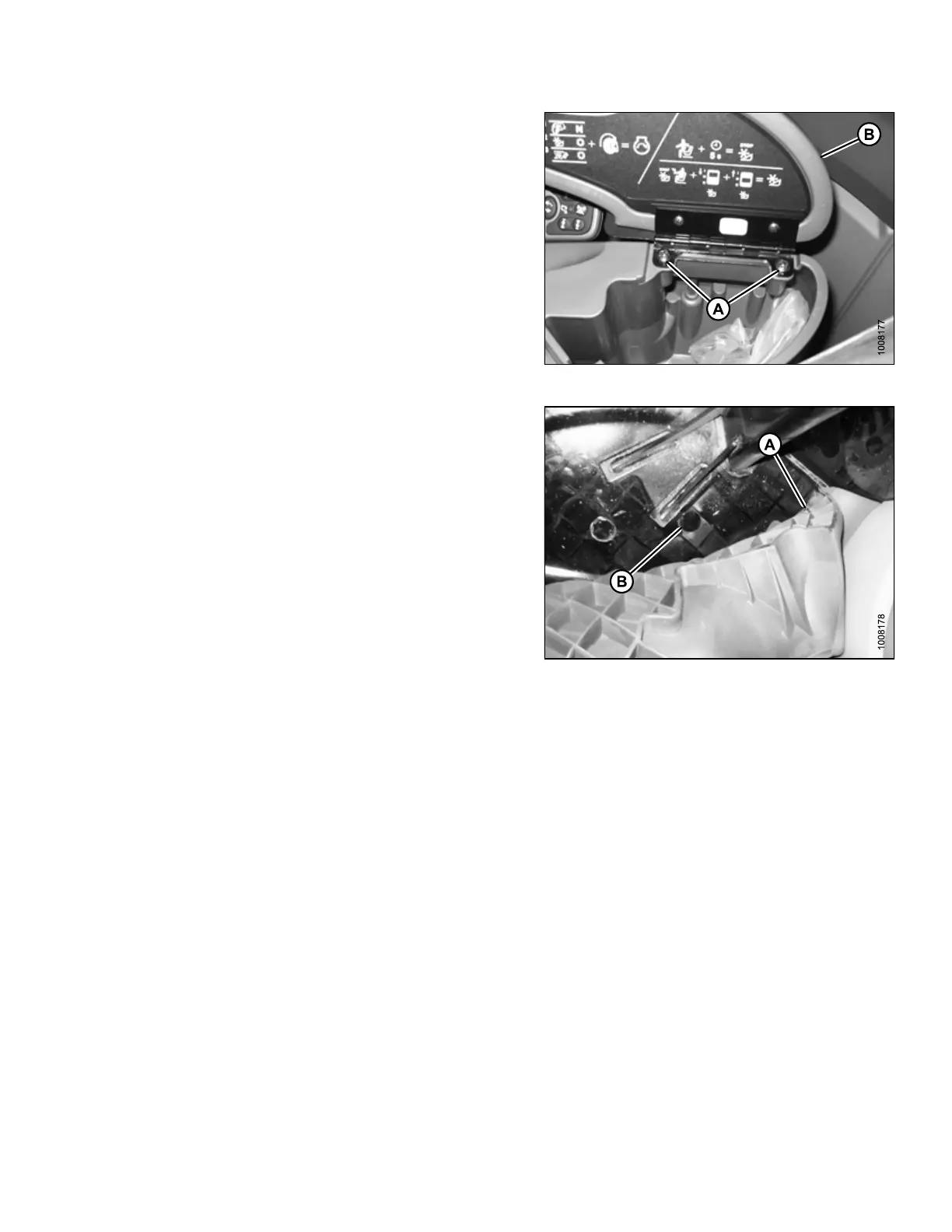

Figure 3.59: Storage Compartment and Cover
1. Open storage compartment on console.
2. Remove two screws (A) attaching compartment
cover (B) to console and remove cover.
Figure 3.60: Cab Floor
3. Lift floor mat (A) at forward right corner to access
knockout (B).
4. Remove knockout (B).
ASSEMBLING HEADER AND ADAPTER
