214325 42 Revision A

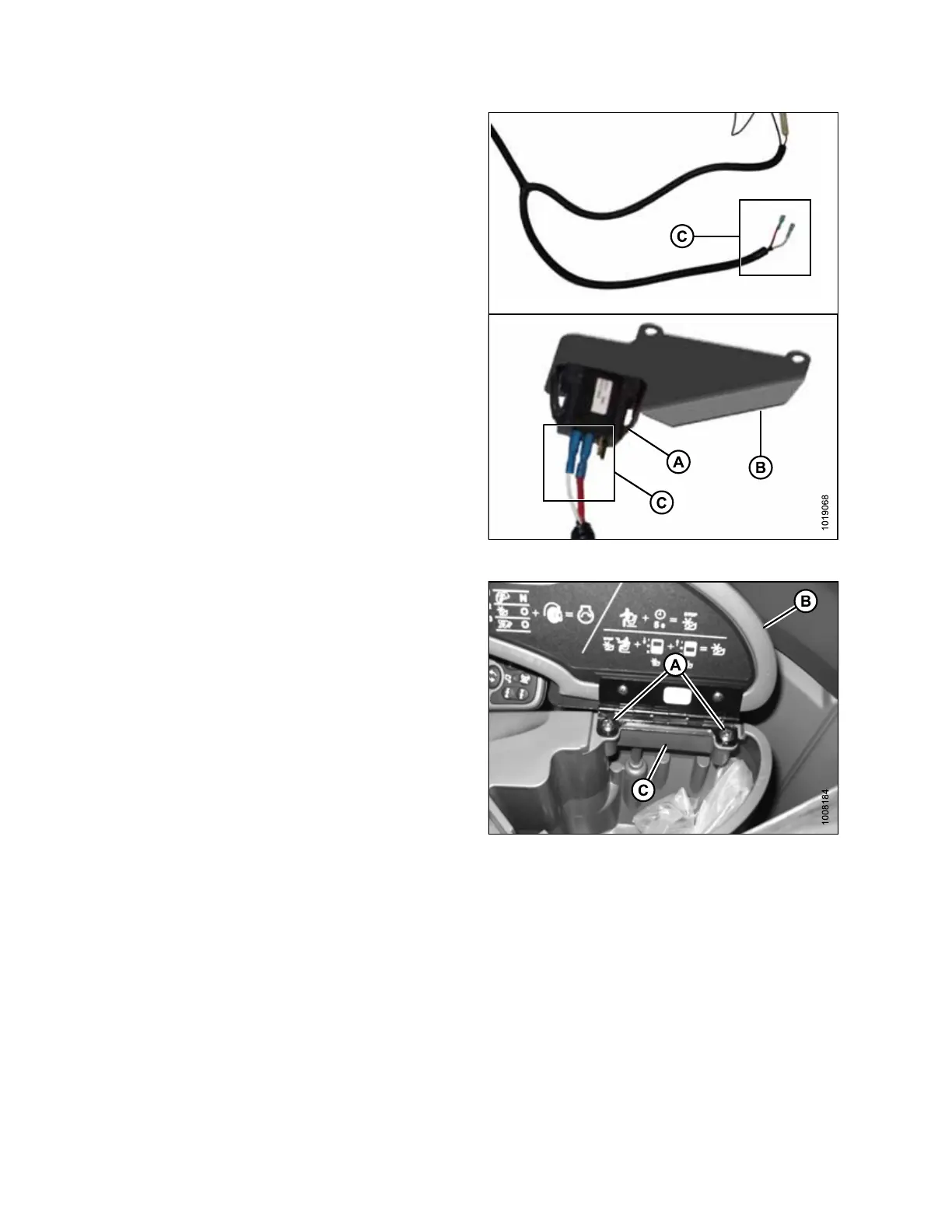

Figure 3.61: Switch and Harness
5. Retrieve reel fore-aft/header tilt switch kit (MD #B6206)
from shipment.
6. Install switch (A) into support (B) from top. Ensure
switch is secured in support.
7. Connect switch end (C) of harness to switch (A) with
one wire to center terminal and other wire to either
outer terminal. The color of the wires does not matter.
Figure 3.62: Support Position on Console
8. Position support (C) onto console and align holes in
support with holes in console.
9. Reinstall cover (B) with existing screws (A).
ASSEMBLING HEADER AND ADAPTER
