214325 47 Revision A

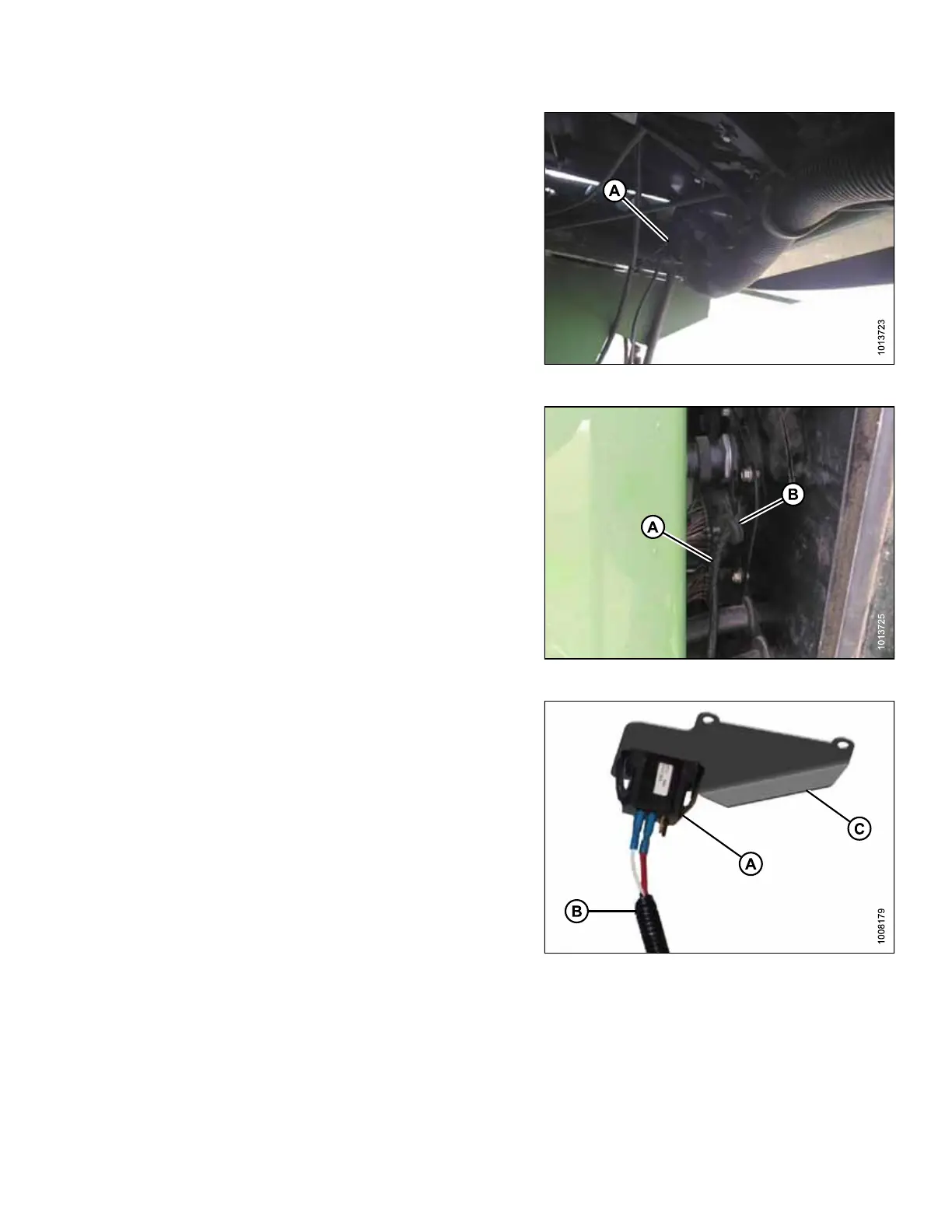

Figure 3.72: Switch Harness Routing
6. Secure the switch harness (A) at the rear of the feeder
house with cable tie.
7. Route harness (A) under cab and across to the
right side.
Figure 3.73: Switch Harness Routing
8. Route the switch harness (A) through the existing
grommet (B) on the electrical plate located at the rear of
the right side window.
Figure 3.74: Switch and Harness
9. Retrieve switch (A) and support (C) provided with kit.
10. Install switch (A) into support (C) from the top. Ensure
lugs on underside of support have secured the switch.
NOTE:
Image at right shows switch harness (B) connected to
switch (A).
ASSEMBLING HEADER AND ADAPTER
