214325 48 Revision A

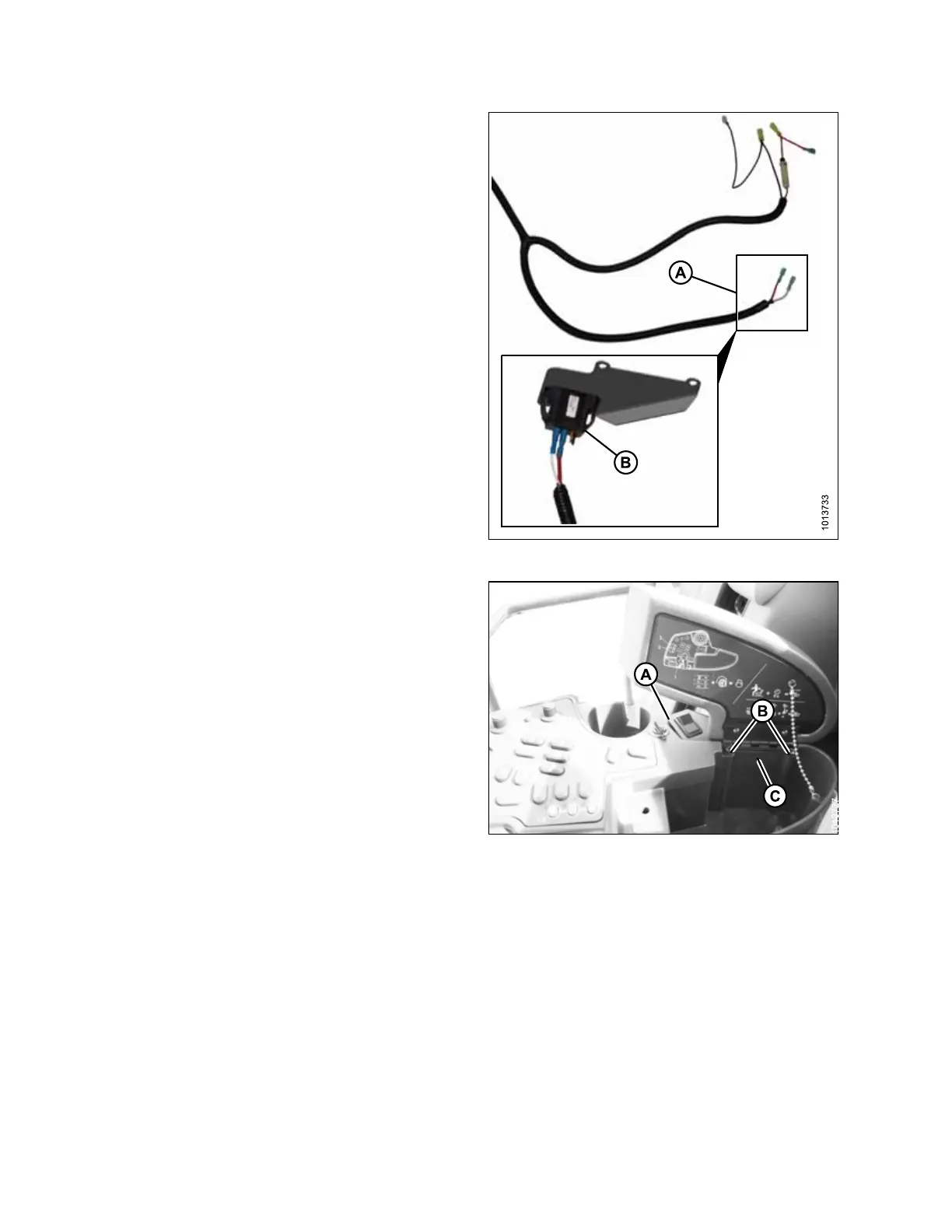

Figure 3.75: Switch End of Harness and Switch
11. Connect the switch end of harness (A) to switch (B) with
one of the wires to center terminal and the other wire to
either outer terminal. The color of the wires does not
matter; ensure one wire terminates at the center
terminal.
Figure 3.76: Switch Plate Mounting
12. Mount switch plate (A) between the armrest cover hinge
(C) and the armrest using existing screws (B).
ASSEMBLING HEADER AND ADAPTER
