214325 50 Revision A

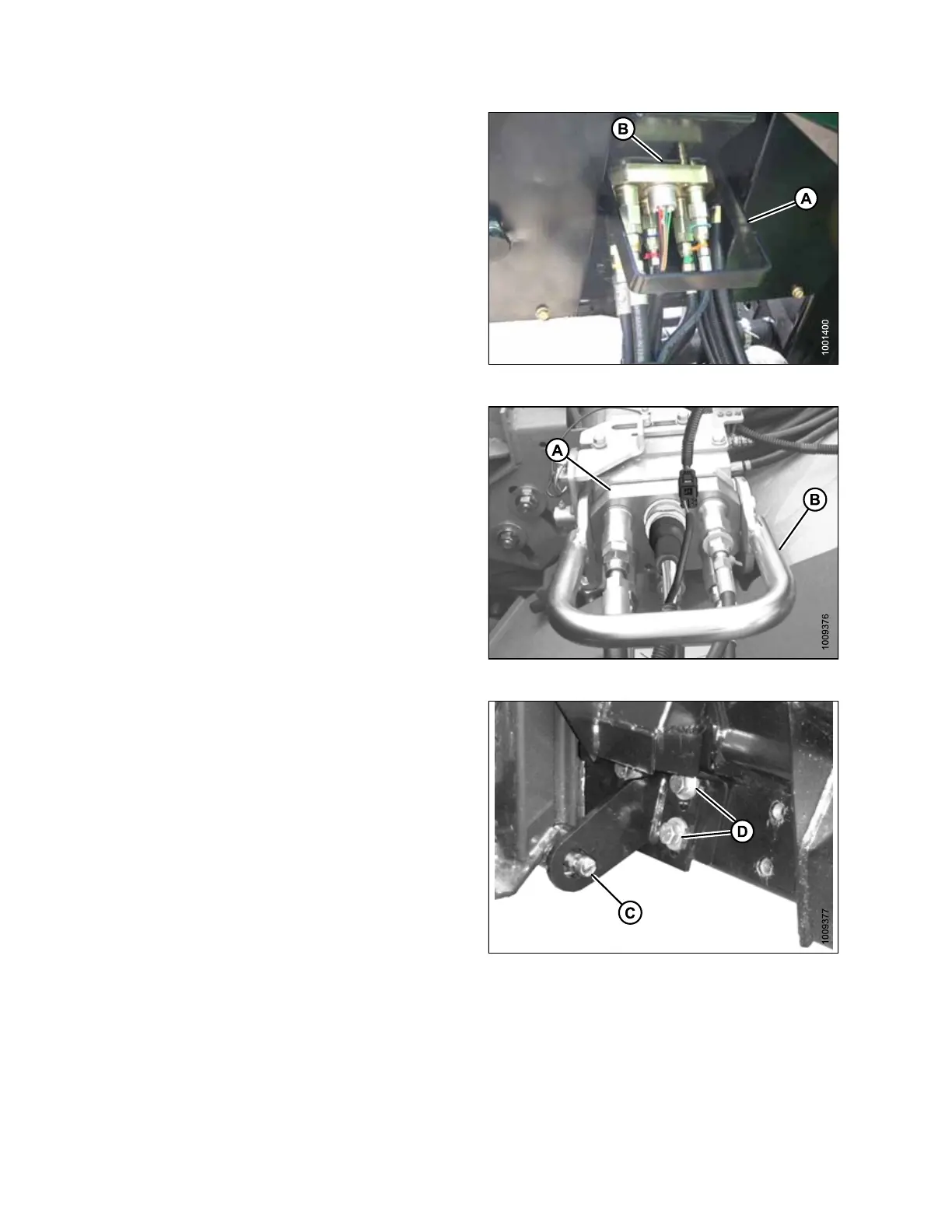

Figure 3.79: Multicoupler Storage
5. Pull handle (A) on adapter to release multicoupler (B)
from storage position. Remove multicoupler, and push
handle back into adapter to store.
Figure 3.80: Multicoupler
6. Position multicoupler (A) onto receptacle, and pull
handle (B) to engage lugs on multicoupler into
the handle.
7. Pull handle (B) to a horizontal position and ensure
multicoupler (A) is fully engaged into receptacle.
Figure 3.81: Feeder House Pin
8. Ensure that both feeder house pins (C) are fully
engaged into adapter brackets.
NOTE:
If pins (C) do not fully engage adapter brackets, loosen
bolts (D) and adjust bracket as required.
9. Tighten bolts (D).
ASSEMBLING HEADER AND ADAPTER
