214325 51 Revision A

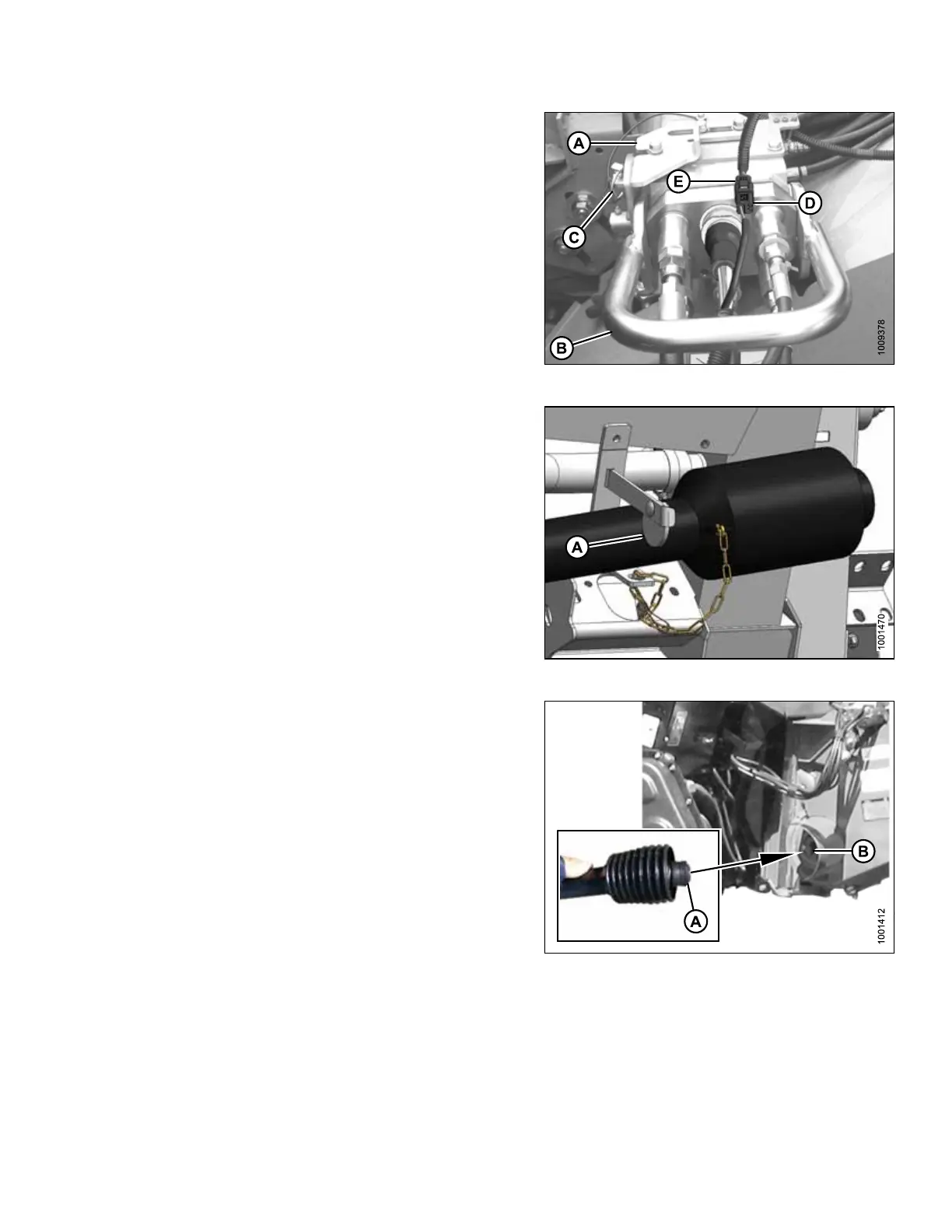

Figure 3.82: Multicoupler
10. Slide latch (A) to lock handle (B) in position and secure
with lynch pin (C).
11. Connect harness (D) to combine connector (E).
Figure 3.83: Driveline
12. Rotate disc (A) on adapter driveline storage hook, and
remove driveline from hook.
Figure 3.84: Driveline
13. Pull back collar (A) on end of driveline, and push
driveline onto combine output shaft (B) until collar locks.
ASSEMBLING HEADER AND ADAPTER
