214325 64 Revision A

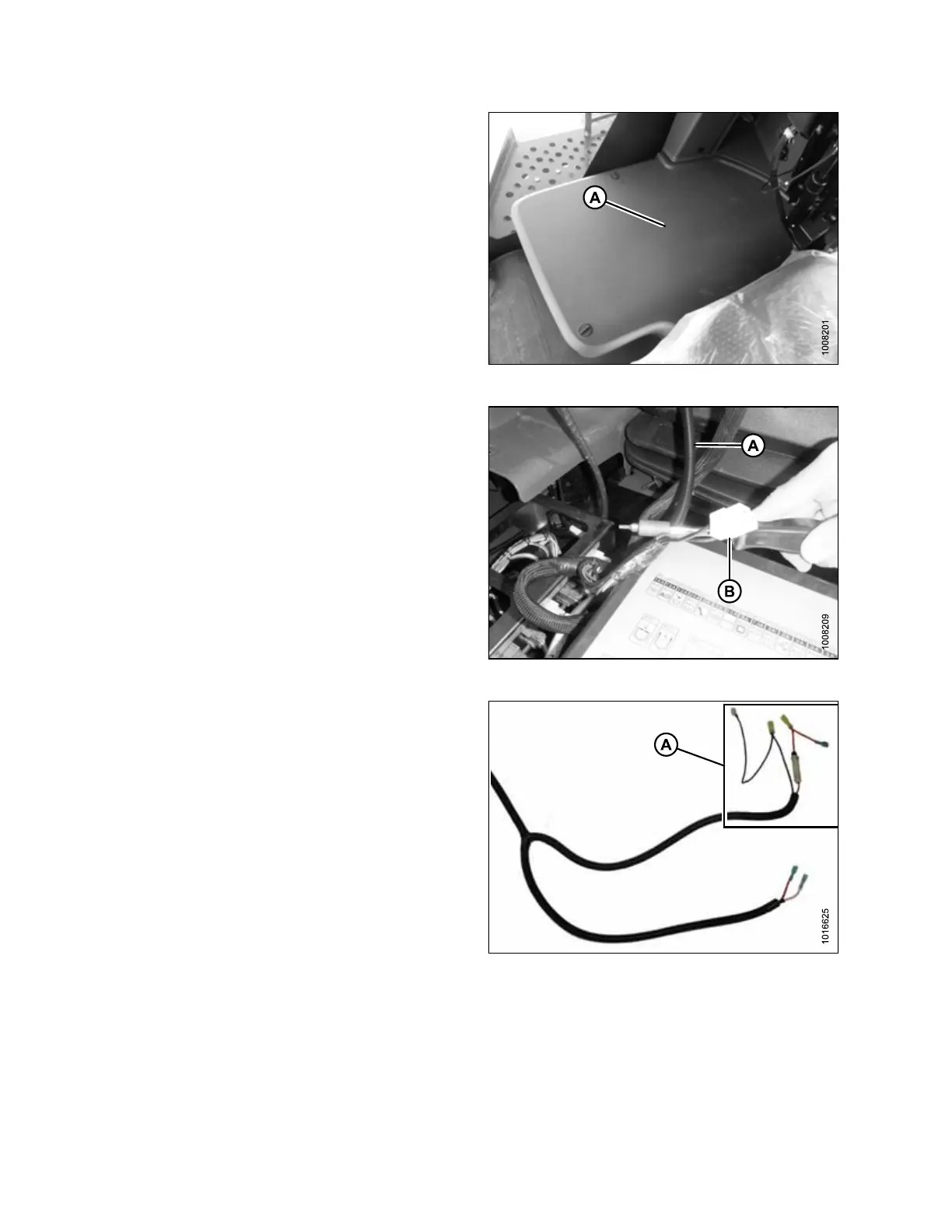

Figure 3.111: Terminal Compartment
12. Locate terminal compartment (A) on floor at right of cab,
and remove the terminal compartment cover for access
to 12-volt switched power.
Figure 3.112: Terminal Compartment
13. Locate the CLAAS single-wire harness (A) and white
connector (B) with one brown wire and one black wire.
Figure 3.113: MacDon Wire Harness
NOTE:
The power source end (A) of the MacDon wire harness
has four blade-type connectors.
ASSEMBLING HEADER AND ADAPTER
