214325 66 Revision A

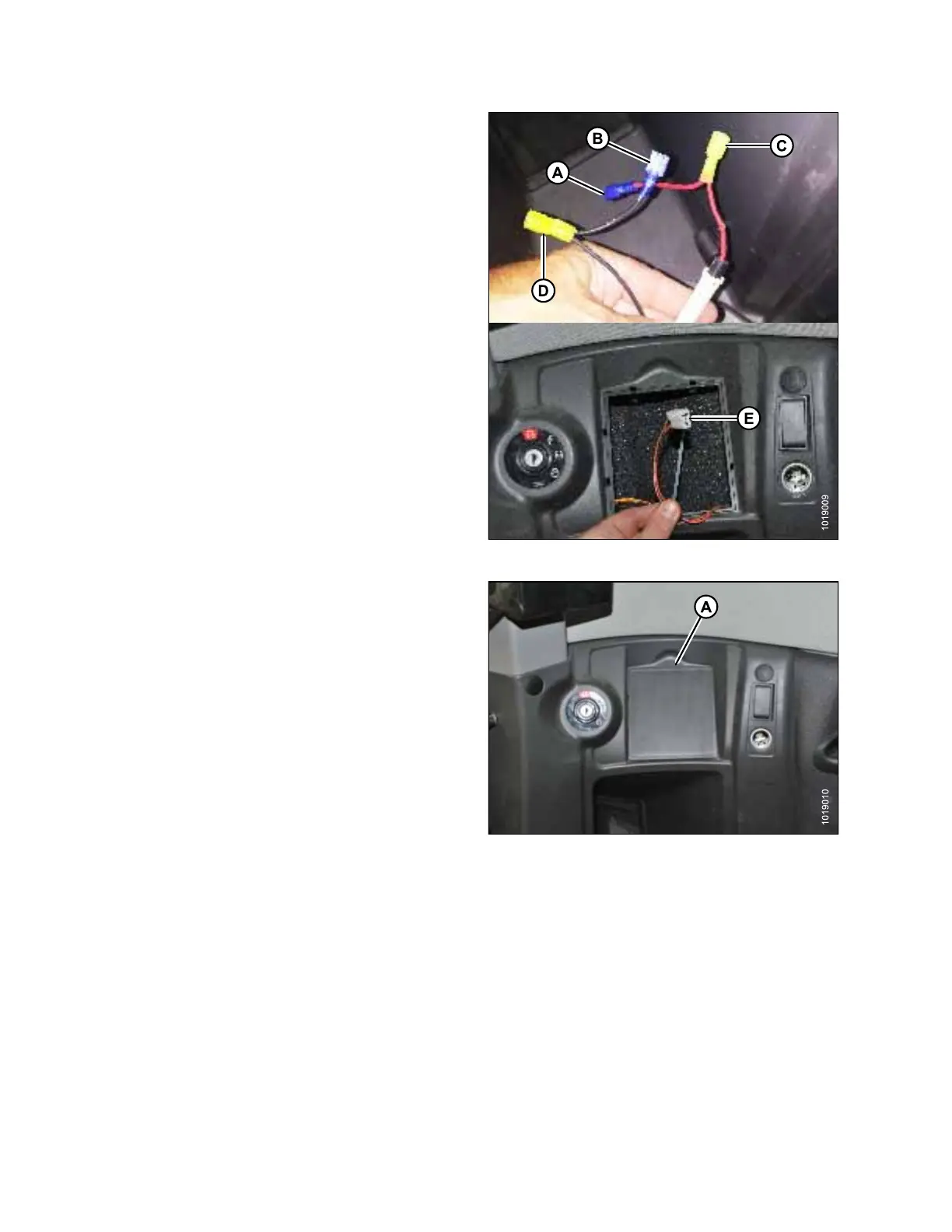

Figure 3.117: Wiring Harnesses
19. Install MacDon wiring harness between cigarette lighter
and lighter harness as follows:
a. Remove insulation from red (A) and black (B) male
connectors.
b. Remove CLAAS harness from cigarette lighter.
c. Attach red wire female connector (C) on MacDon
harness to power terminal on cigarette lighter.
d. Attach black wire female connector (D) on MacDon
harness to negative terminal on cigarette lighter.
e. Attach red wire male connector (A) and black wire
male connector (B) to same colored wires in the
CLAAS harness connector (E) (red to red; black
to black).
Figure 3.118: Plastic Cover
20. Secure MacDon harness as required with cable ties.
21. Reinstall access panel (A).
22. Proceed to Step 24, page 67 to connect to the combine
multicoupler.
ASSEMBLING HEADER AND ADAPTER
