214325 67 Revision A

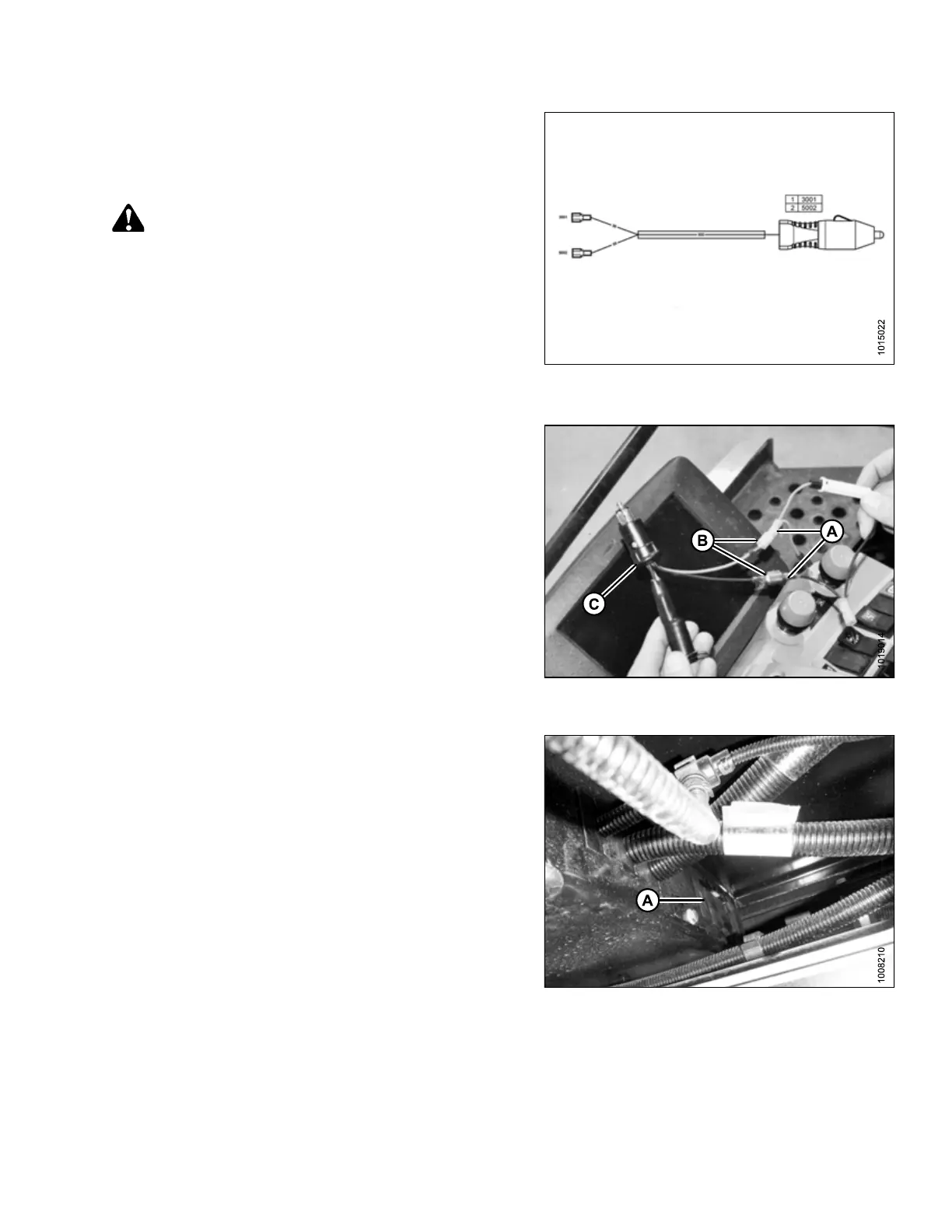

Figure 3.119: Optional Cigarette Lighter Adapter
(MD #220570)
If using an unswitched 12 V power source:
If there are no available plugs in the switched power supply,
unswitched power or a cigarette lighter adapter harness can
be used.
CAUTION
Constant power is supplied to the header tilt side of the
solenoid valve. If the circuit is left powered during
extended shutdown periods, the combine battery will be
drained.
Figure 3.120: Cigarette Lighter Adapter
Connections
23. Connect optional cigarette lighter adapter to MacDon
wiring harness as follows:
a. Retrieve power supply end of MacDon harness.
b. Attach male connectors (A) on MacDon harness to
female connectors (B) on adapter (C) wires,
matching wire colors.
c. Plug lighter adapter (C) into lighter receptacle to
activate fore-aft/tilt switch.
IMPORTANT:
Unplug lighter adapter (C) when reel fore-aft/tilt
function is not needed to avoid draining combine
battery.
Figure 3.121: Switch Harness
24. Make a hole in one of the blank covers at left of the
compartment at location (A) for the MacDon switch
harness.
25. Route dual-pin connector end of switch harness
through hole.
ASSEMBLING HEADER AND ADAPTER
