214683 85 Revision A
AGCO combines:
AGCO combines use a combination of the reel fore-aft switches on the control handle and a dealer-installed
auxiliary rocker switch, which toggles between reel fore-aft and header tilt functionality. The location of the rocker
switch varies with combine model.

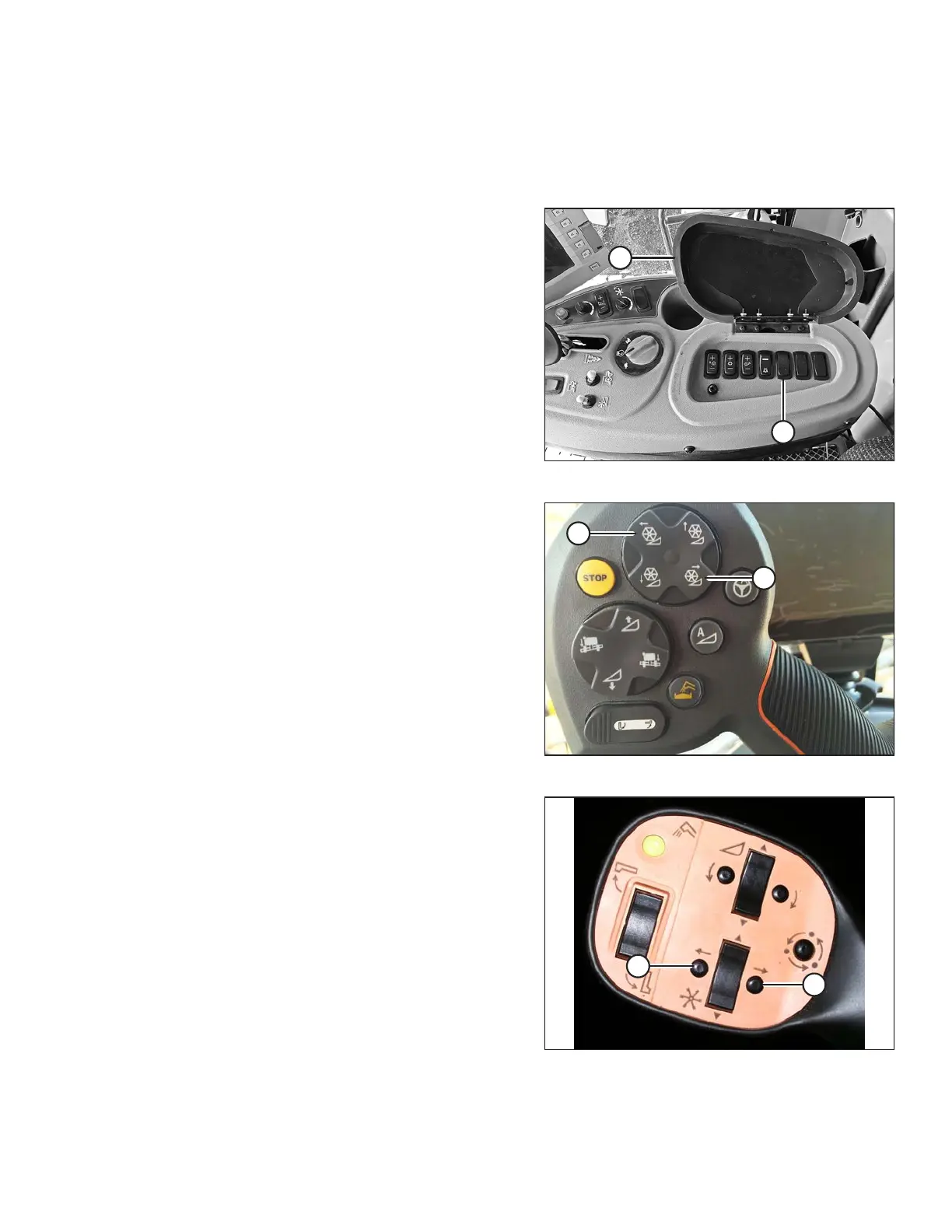

Figure 3.81: Gleaner A Console
1. Gleaner A only: Open armrest cover (A) (Gleaner A
only) to expose row of switches, and press
dealer-installed rocker switch (B) to HEADER TILT
position.
NOTE:
Gleaner A shown. Other AGCO combine models have
rocker switch on the console (not shown).
Figure 3.82: Gleaner Controls
2. Press button (A) on control handle to tilt header forward
(steeper angle) or button (B) to tilt header back
(shallower angle).
Figure 3.83: Gleaner Controls
OPERATION
