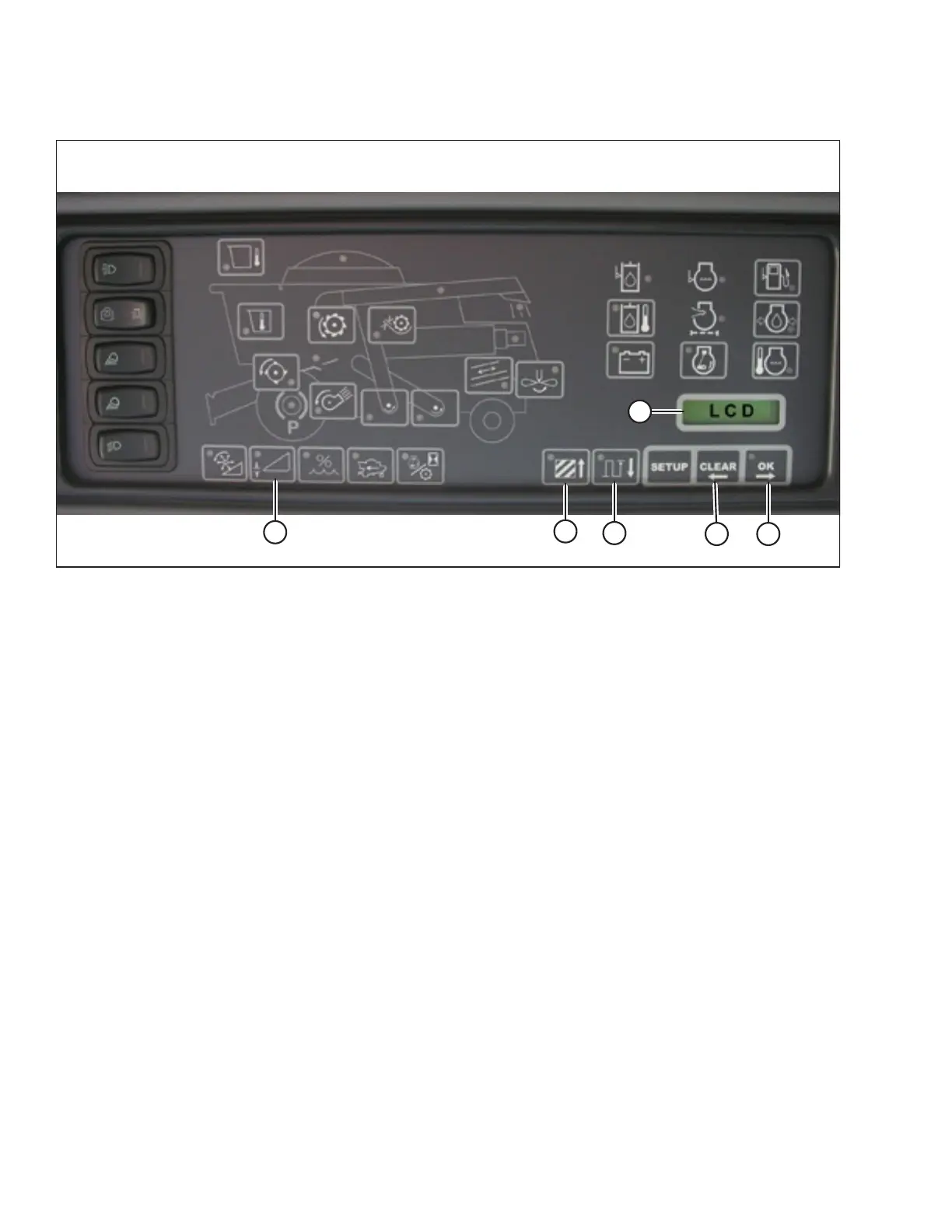

Figure 3.278: Combine Heads-Up Display
NOTE:
Displayed on LCD (A) as XX in. or XXX cm.
Alarm conditions:
If an error message is received from the fuse panel, an audible alarm sounds. The alarm buzzer sounds five times
every 10 seconds. The LCD on the electronic instrument panel (EIP) indicates the header system in error as HDR
CTRL followed by HGT ERR for height, and HDR CTRL followed by TILT ERR for tilt. The header height LED
flashes yellow two times every second.
When an alarm condition occurs, a green LED flashes on and off (green, yellow, or red depending on the input). In
addition, a message is displayed on the LCD to identify the nature of the alarm. For example, HYD TEMP, OPEN,
SHRT will be flashed alternately.
Diagnostic fault failures:
Refer to Figure 3.278, page 182.
Pressing the header height switch (B) for a minimum of 5 seconds will put the EIP in header diagnostic mode. The
LCD (shown on previous screen) will display the message HDR DIAG when the EIP has entered header
diagnostic mode.
In this mode, after 3 seconds, header fault parameter labels are displayed on the EIP LCD. All the information
displayed is read-only.
The OK (C) and CLEAR (D) buttons allow you to scroll through the list of parameters. If there are no active fault
codes, the EIP LCD will display NO CODE.
When a parameter is displayed, its label is displayed for 3 seconds, after which its value is automatically displayed.
Pressing the OK button (C) while the value is displayed will advance to the next parameter and display its label.
