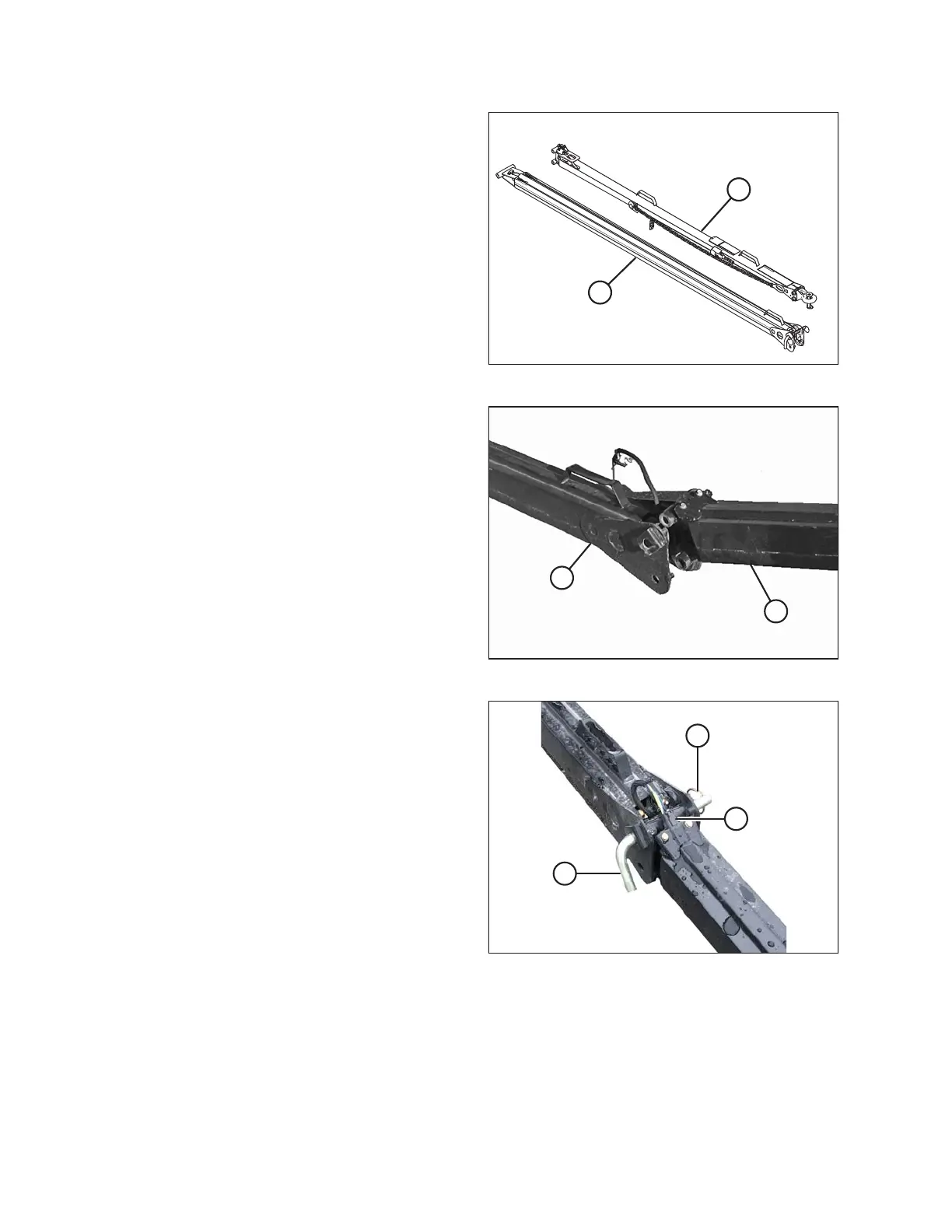

Figure 3.540: Tow-Bar Assembly
8. Connect the outer half (B) of the tow-bar to the inner
half (A).
100071510007151000715
A
B
Figure 3.541: Tow-Bar Assembly
9. Lift the outer half (B) and insert it into the inner half (A).
1010274
A
B
C
Figure 3.542: Tow-Bar Assembly
10. Secure the two halves together with the L-pin (A) and
then turn to lock. Secure the L-pin with ring (B).
11. Connect the electrical harness to connector (C).
