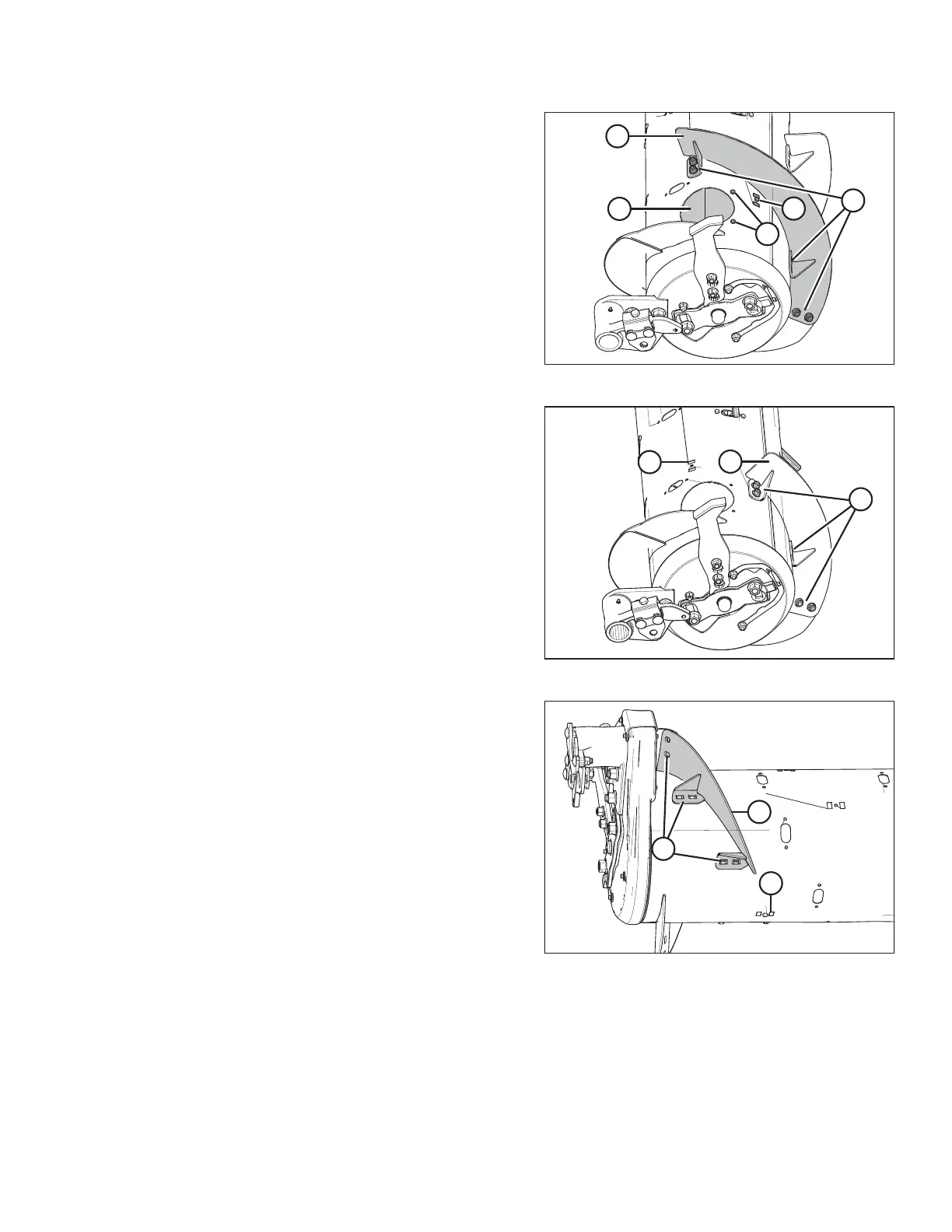

Figure 4.26: Narrow Configuration (Right Side)
2. Remove bolts (A) and access cover (B) from the right
side of the auger. Retain for later reassembly.
3. Remove hardware (C) and bolt-on flighting (D) from the
right side of the auger. Discard flighting, but retain
hardware to attach the new flighting.
4. Remove flighting slot plug, bolt, and tee nut (E). Retain
for later reinstallation.
NOTE:
Only two flighting slot plugs (E) should be removed —
one from each outboard side of the auger.
5. Repeat Step 2, page 321 and Step 3, page 321 for the
remaining bolt-on flighting(s).
Figure 4.27: Wide Configuration (Right Side)
6. Install the new bolt-on flighting (A) using six carriage
head bolts and nuts (B) on the right side of the auger.
IMPORTANT:
Flighting bolt heads must be installed on inside of auger
to prevent damage to internal components.
NOTE:
Flightings are NOT included in this kit. Order flighting kit
MD #287031 separately.
7. Reinstall flighting slot plug (C) removed in Step 4, page
321.
Figure 4.28: Wide Configuration (Left Side)
8. Install the new bolt-on flighting (A) on the left side of the
auger using six carriage head bolts and nuts (B).
IMPORTANT:
Flighting bolt heads must be installed on inside of auger
to prevent damage to internal components.
NOTE:
Flightings are NOT included in this kit. Order flighting kit
MD #287031 separately.
9. Reinstall flighting slot plug (C) removed in Step 4, page
321.
10. Install the remaining flighting slot plugs (MD #213084) using the M6 hex head bolts (MD #252703) and tee nuts
(MD #197263) in the locations previously used to mount the flighting in Step 3, page 321 and Step 5, page 321.
11. Install additional auger fingers. There should be a total of 30 fingers in this configuration. Auger fingers and all
required parts are included in kit. Refer to Installing Feed Auger Fingers, page 431.
