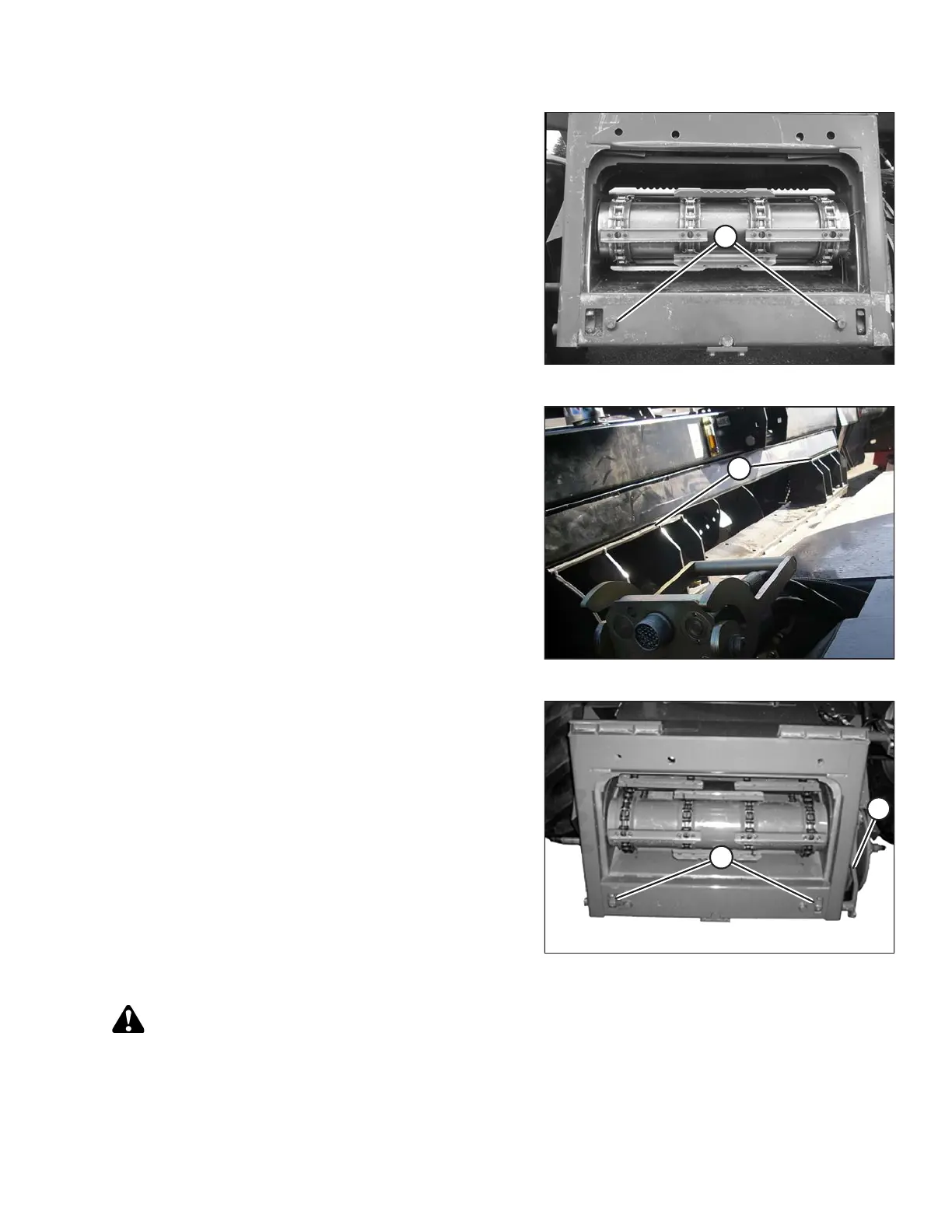

Figure 4.69: AGCO Group Alignment Pins
NOTE:
Your combine feeder house may not be exactly
as shown.
Figure 4.70: Feeder House and Float Module
3. Raise the feeder house slightly to lift the header,
ensuring the feeder house saddle (A) is properly
engaged in the float module frame.
4. Stop the engine and remove the key from the ignition.
Figure 4.71: AGCO Group Feeder House
5. Use the lock handle (B) to engage lugs (A) with the float
module.
CAUTION
Never start or move the machine until you are sure all bystanders have cleared the area.
HEADER ATTACHMENT/DETACHMENT
