6. Start the engine and lower the header.
7. Stop the engine and remove the key from the ignition.
NOTE:
The FM100 Float Module is equipped with a multicoupler that connects to the combine. If your combine is
equipped with individual connectors, a multicoupler kit (single-point connector) must be installed. Refer to
Table 4.1, page 342 for a list of kits and installation instructions that are available through your combine Dealer.
Table 4.1 Multicoupler Kits
Combine
Kit Number
Challenger
71530662
Gleaner R/S Series
71414706
Massey Ferguson
71411594

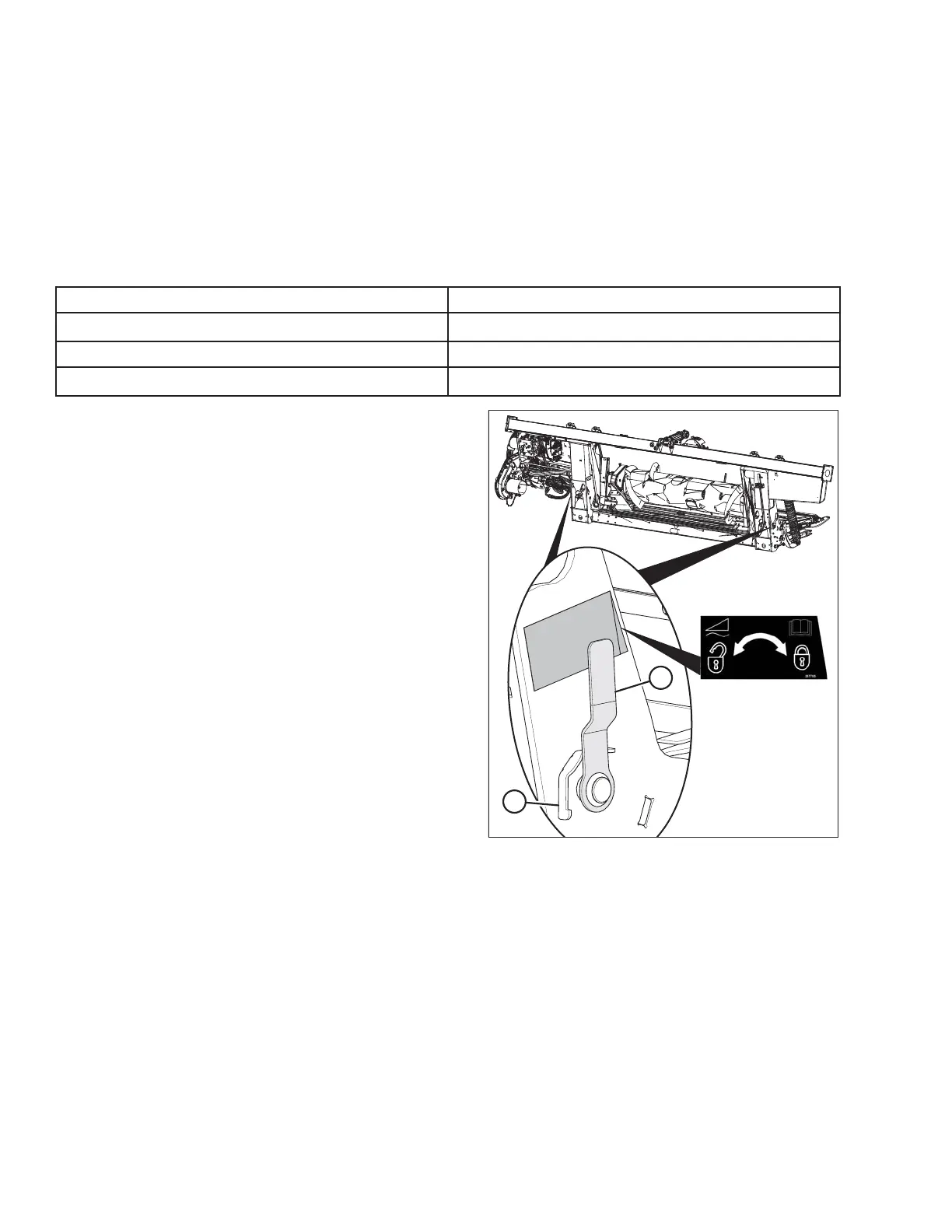

Figure 4.72: Float Lock Handle (Right Side
Shown in Detail, Left Side Opposite)
8. Disengage the float locks by pulling each float lock
handle (A) away from the float module and setting it in
the unlocked position (B).
HEADER ATTACHMENT/DETACHMENT
