214683 491 Revision A
Table 5.2 Header Draper Tracking (continued)
Tracking At Location Adjustment Method
Backward Idler roller Increase Y
Tighten nut (H) in Fig. 5.194,
page 491
Forward Idler roller Decrease Y
Loosen nut (H) in Fig. 5.194,
page 491
1016586
C
D
E

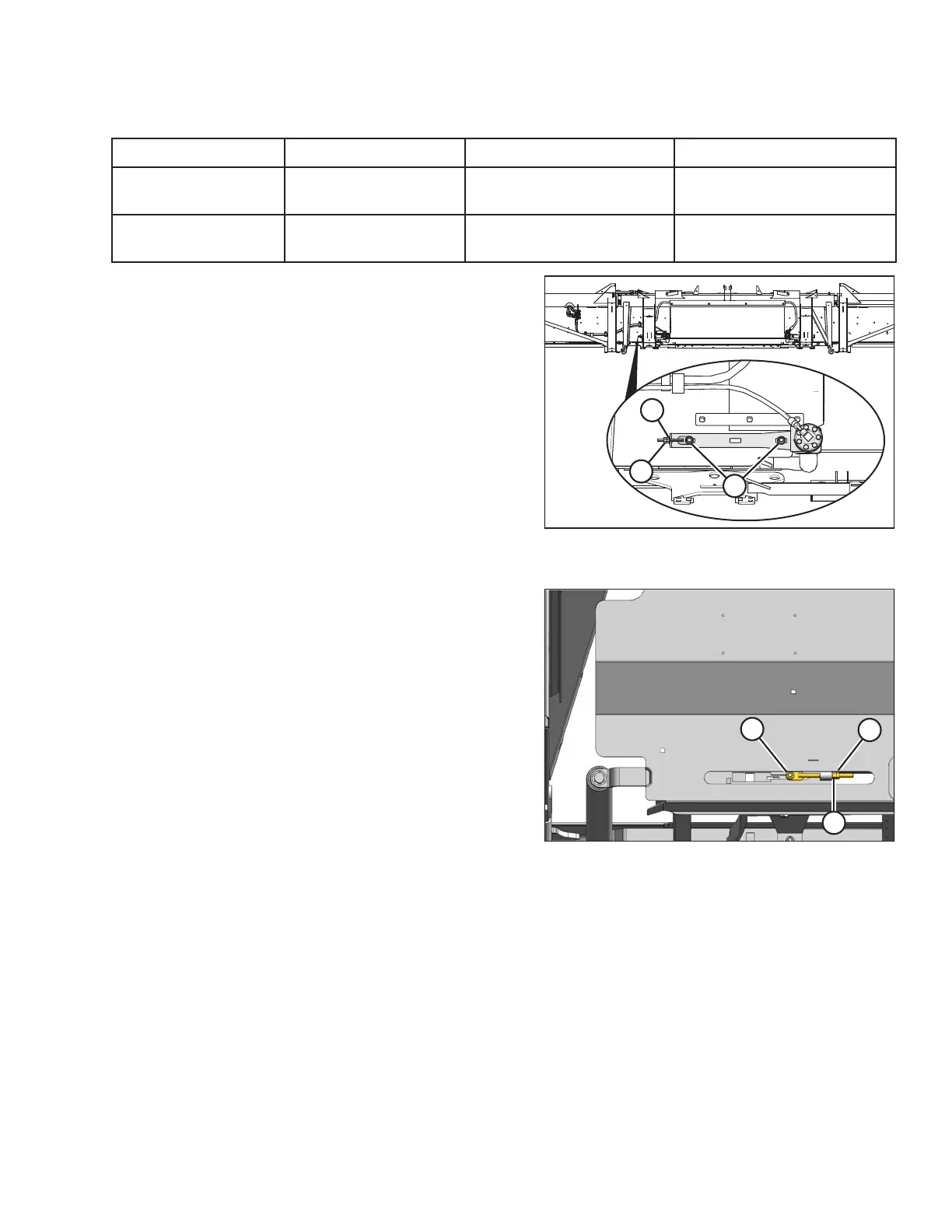

Figure 5.193: Left Deck Drive Roller
(Right Opposite)
2. Adjust drive roller (A) to change X (refer to Table 5.2,
page 490) as follows:
a. Loosen nuts (C) and jam nut (D).
b. Turn the adjuster nut (E).
NOTE:
Some parts removed from illustration for illustration
purposes.
1009587
F
G
H
Figure 5.194: Left Deck Idler Roller (Right
Opposite)
3. Adjust idler roller (B) to change Y (refer to Table 5.2,
page 490) as follows:
a. Loosen nut (F) and jam nut (G).
b. Turn the adjuster nut (H).
NOTE:
If the draper does not track at the idler roller end after
the idler roller adjustment, the drive roller is likely not
square to the deck. Adjust the drive roller, and then
readjust the idler roller.
