214683 500 Revision A
Installing Side Draper Drive Roller

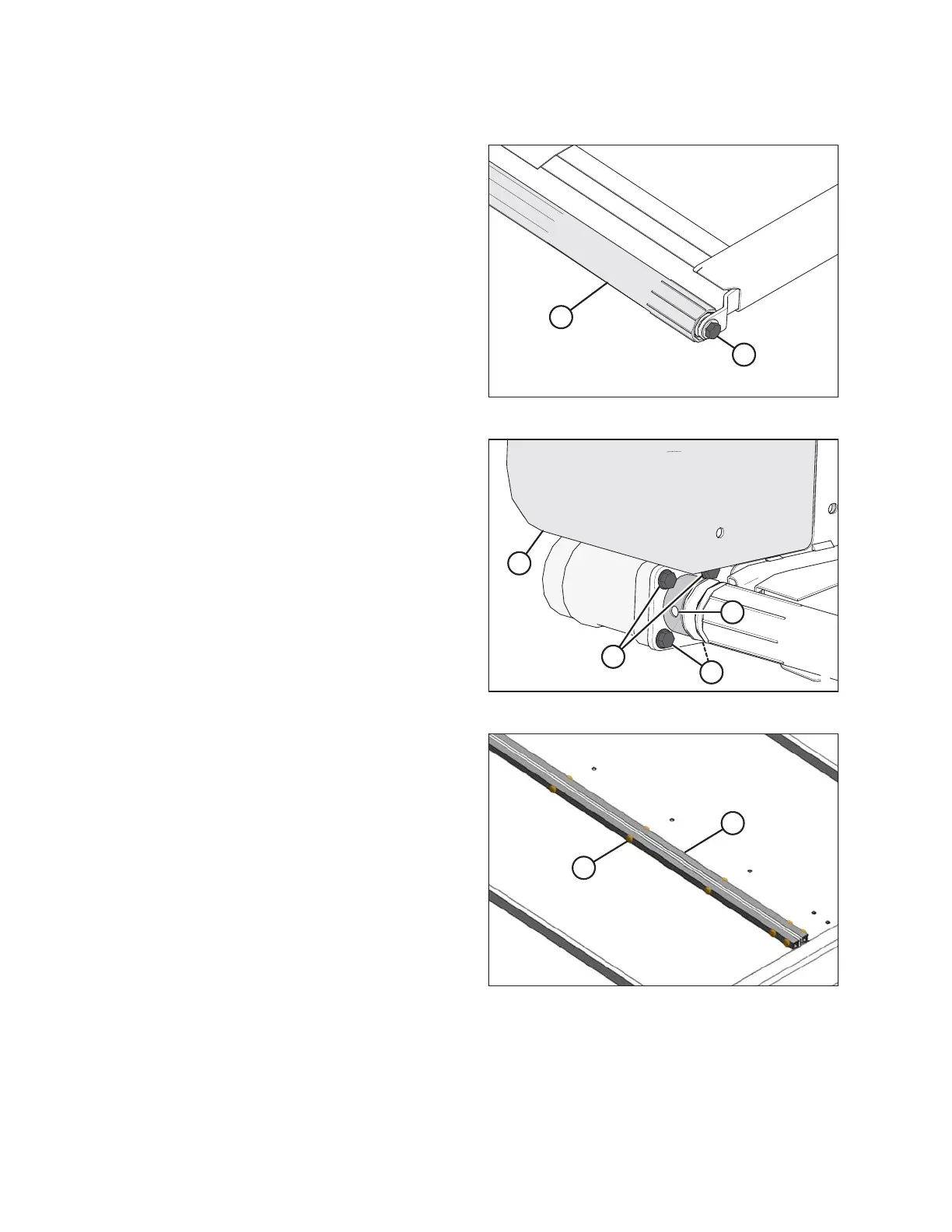

Figure 5.214: Drive Roller
1. Position the drive roller (B) between the roller
support arms.
2. Install the bolt (A) to secure the drive roller to the arm
closest to the cutterbar. Torque bolt to 95 Nm (70 lbf·ft).
3. Grease the motor shaft and insert into the end of the
drive roller (B).
Figure 5.215: Drive Roller
4. Secure the motor to the roller support with four
bolts (B). Torque to 27 Nm (20 lbf·ft).
NOTE:
Tighten any loosened bolts and reinstall the plastic
shield (C) if previously removed.
5. Ensure the motor is all the way into the roller, and
tighten the two setscrews (not shown) through the
access hole (A).
Figure 5.216: Draper Connector
6. Wrap the draper over the drive roller and attach the
ends of the draper using the tube connectors (B),
screws (A), and nuts.
NOTE:
The heads of the screws must face the center opening.
