214683 501 Revision A

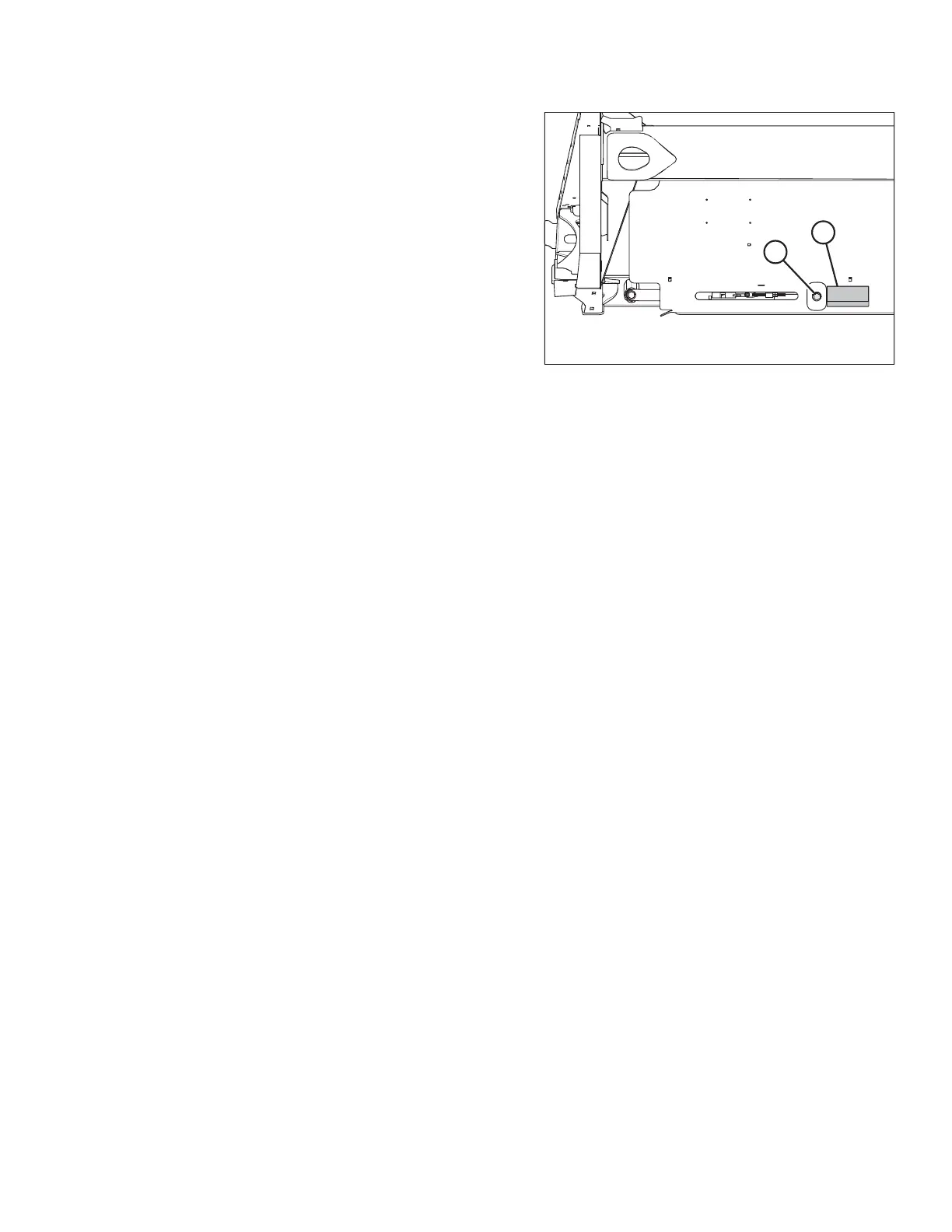

Figure 5.217: Draper Tensioner (Left Side
Shown, Right Opposite)
7. Tension the draper. Locate adjuster bolt (A) and follow
the directions on the decal (B) or refer to 5.14.3
Adjusting Draper Tension, page 488 for the proper
draper tensioning.
8. Disengage the reel and header safety props.
9. Start the engine and lower the header and reel.
10. Run the machine to verify the draper tracks correctly. If
further adjustment is necessary, refer to 5.14.4
Adjusting Header Draper Tracking, page 490.
MAINTENANCE AND SERVICING
