214683 67 Revision A

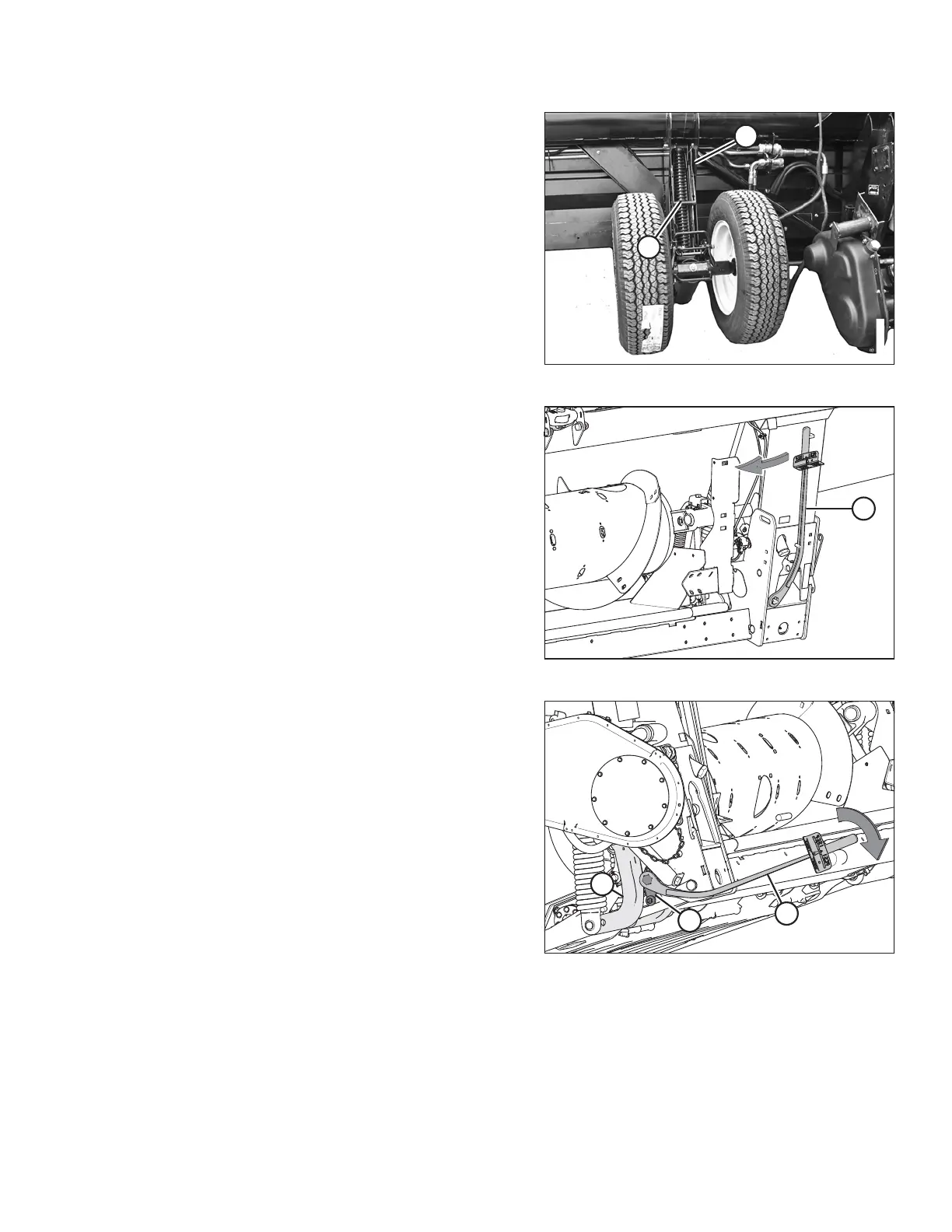

Figure 3.40: Left Wheel
9. Place stabilizer wheels and slow speed transport
wheels (if equipped) in storage position as follows:
a. Support the wheel weight by lifting slightly with one
hand, and pull up on handle (A) to release the lock.
b. Lift the wheels to the desired height, and engage
the support channel into the slot (B) in the upper
support.
c. Push down on the handle (A) to lock.
Figure 3.41: Torque Wrench Storage Location
10. Remove the supplied torque wrench (A) from its storage
position at the right side of the float module frame. Pull
in the direction shown to disengage the wrench from
the hook.
Figure 3.42: Float Module – Left Side
11. Place the torque wrench (A) onto the float lock (B). Note
the position of the wrench for checking left or right side.
12. Push down on wrench to rotate bell crank (C) forward.
OPERATION
