SET-UP AND INSTALLATION 16000 OPERATOR MANUAL
4-44
Published 05-09-17, Control # 011-29_v2

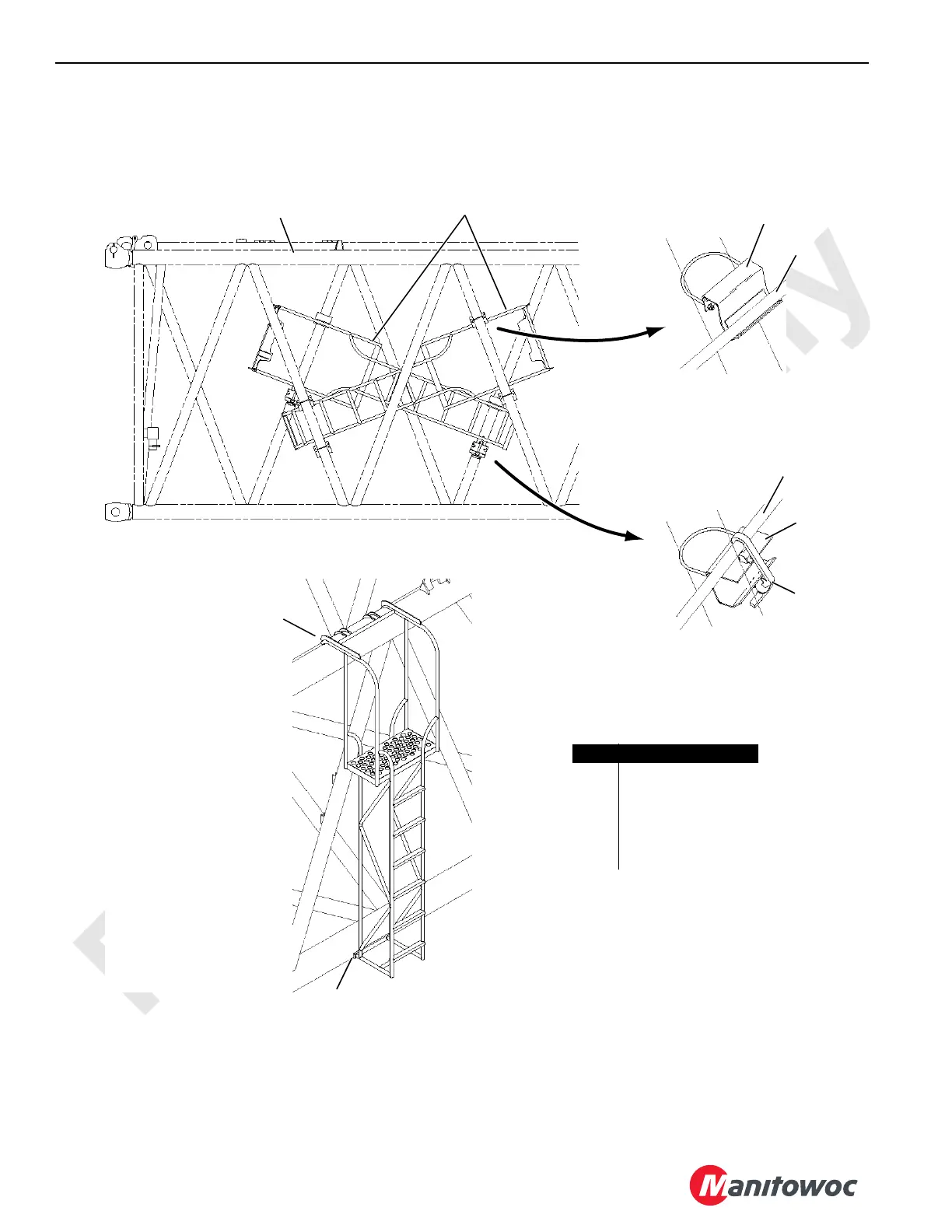

FIGURE 4-23
A13170
View B
(4 places)
6
Firm Against
Bottom Chord
2
Hooked Over
Top Chord
View C
(4 places)
View A
Stored
View D
Installed
Legend
Item Description
1 40 ft (12 m) Insert
2 Ladder
3 Hook
4 Keeper
5 Rubber Latch
6Pad
1
2
3
4
5
2
2
