7. To TRAVEL STRAIGHT (Figure 3-21), move both
crawler handles same amount in desired direction from
off.
8. To make a SHARP LEFT TURN (Figure 3-22
), move
right crawler handle to front from off and leave left
crawler handle in off; crane will pivot about left crawler.
9. To make a SHARP RIGHT TURN, reverse step 8.
10. To make a GRADUAL LEFT TURN (Figure 3-23
), move
both crawler handles to front from off, but move right
crawler handle farther to front than left crawler handle;
right crawler will turn faster than left crawler.
11. To make a GRADUAL RIGHT TURN, reverse step 10.
12. To COUNTER-ROTATE LEFT (Figure 3-24
), move right
crawler handle to front from off and move left crawler
handle to rear from off.
13. To COUNTER-ROTATE RIGHT, reverse step 12.
14. Slowly move both crawler handles to off to stop traveling
and to hold the crane in position.
15. Turn on travel park switch.
Reverse
Left
Crawler
Handle
Right
Crawler
Handle
Forward

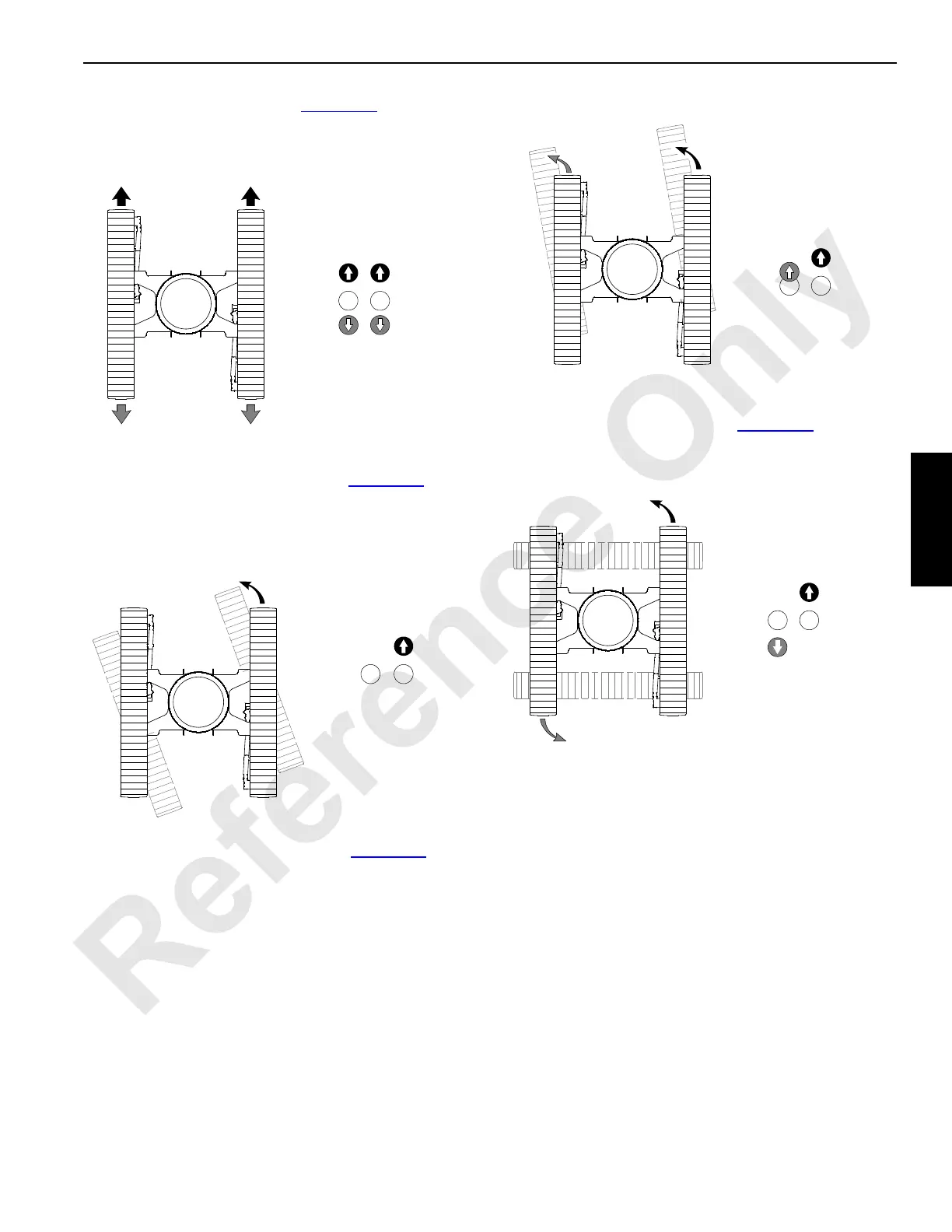

FIGURE 3-21
OFF OFF
A823
Forward
Forward
FIGURE 3-22
OFF OFF
A823
Left
Crawler
Handle
Right
Crawler
Handle
FIGURE 3-23
OFF OFF
Left
Crawler
Handle
Right
Crawler
Handle
Forward
A823
FIGURE 3-24
OFF OFF
OFF OFF
Left
Crawler
Handle
Right
Crawler
Handle
Forward
Reverse
A823
