Connecting the Folding Extension Electrical Circuit

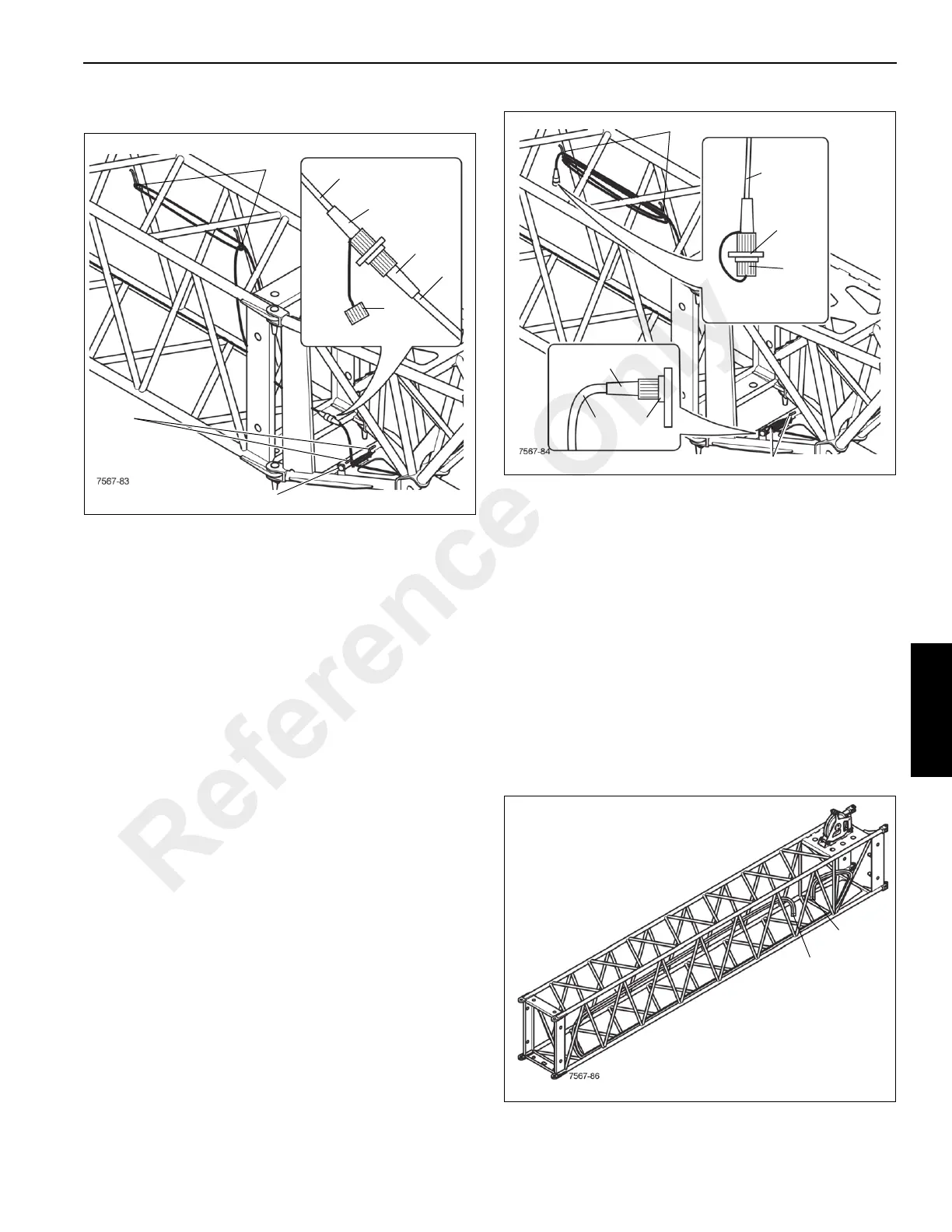

1. Unwind the cable (2) (Figure 4-73) from the holder (1).
2. Remove the cap (4) off the socket (3).
3. Unwind the cable (6) from the holder (8).
4. Remove the bridging plug (5) from the dummy socket (7)
and plug it into the socket (3).
5. Wind up the cable (8) far enough on the holder (7) so it
will not be damaged during operation.
6. Wind up the cable (2) far enough on the holder (1) so it
will not be damaged during operation.
Disconnecting the Folding Extension Electrical
Circuit
1. Remove the bridging plug (5) (Figure 4-74) from the
socket (3) and plug it into the dummy socket (7).
2. WInd the cable (6) on to the holder (8).
3. Install the protective cap on the socket (3).
4. Wind the cable (2) onto the holder (1).
Extension Hydraulic Connection
All hydraulic lines are located in the 26 ft (8 m) extension
(Figure 4-75). The hose lines are installed so that short ends
are located to the rear and long ends to the front of the
extension.
The long ends (1) of the hoses are suspended from clamps.
The short ends (2) of the hoses are positioned at the rear of
the lower cross-strut.
NOTE: Connecting the hydraulic lines from the boom nose
to the hydraulic luffing jib through the 26 ft (8 m)
and 20 ft (6 m) extensions are the same as
connecting to the 26 ft (8 m) extension only.
FIGURE 4-73
2
1
3
4
5
6
8
7
6
FIGURE 4-74
2
1
3
4
5
7
8
2
FIGURE 4-75
1
