SET-UP AND INSTALLATION RT9150E OPERATOR MANUAL
4-48
Published 2-23-2017, Control # 644-00

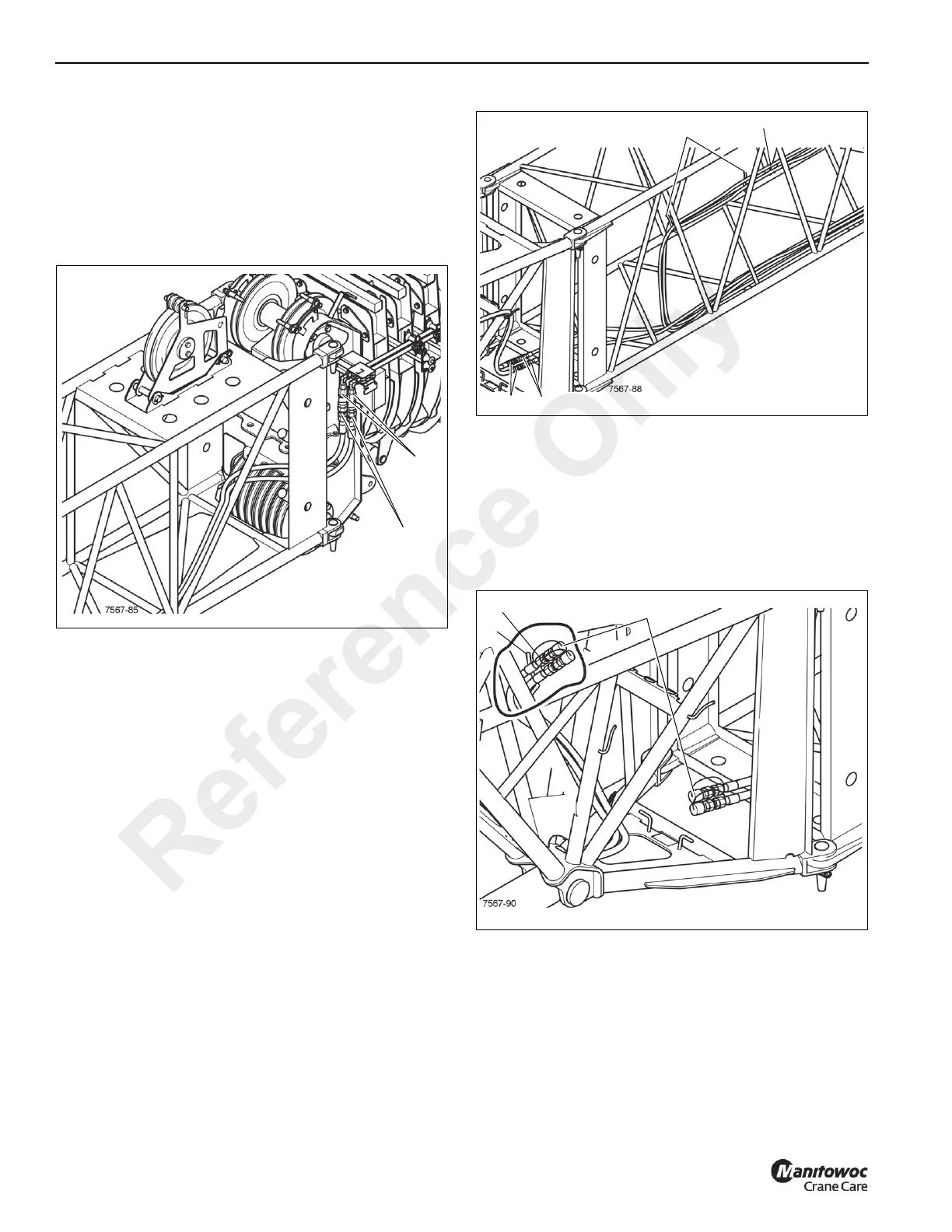

Connecting Main Boom Hydraulics
1. If necessary, install the hydraulic hoses (1) (Figure 4-76)
on the boom nose, refer to Extension Hydraulic
Connections (Optional Hydraulic Extension), page 4-34.
2. Route the short ends (2) to the main boom head.
3. Remove the protective caps and connect the short ends
(2) to the boom nose connectors (1).
Disconnecting Main Boom Hydraulics
1. Disconnect the short hose ends (2) from the boom nose
connectors (1) (Figure 4-76).
2. Cover the short end and boom nose connectors with the
protective caps.
3. Route the short ends (2) inside and place them in front of
the lower cross-strut so that they do not hang down.
Connecting the Folding Extension Hydraulics
1. Remove the long hose (1) (Figure 4-77) from the holders
(2) on the extension.
2. Route the hoses to the front of the extension.
3. Remove the protective caps and connect the folding
extensions hoses (3) to the long hose ends (4).
4. Secure the hoses (1) (Figure 4-77) to the holders (2) to
ensure the hoses are not damaged during operation.
Disconnecting the Folding Extension Hydraulics
1. Disconnect the hoses (3) from the long hose ends (4)
(Figure 4-79).
2. Install protective caps (1) (Figure 4-78) on the hose
ends.
3. Secure the hoses (2) to the holder (3) in the 36 ft (11 m)
section.
4. Stow the long hoses (1) (Figure 4-77) on the holders (2)
provided.
2
FIGURE 4-76
1
2
FIGURE 4-77
1
3
4
1
FIGURE 4-78
2
3
Reference Only
